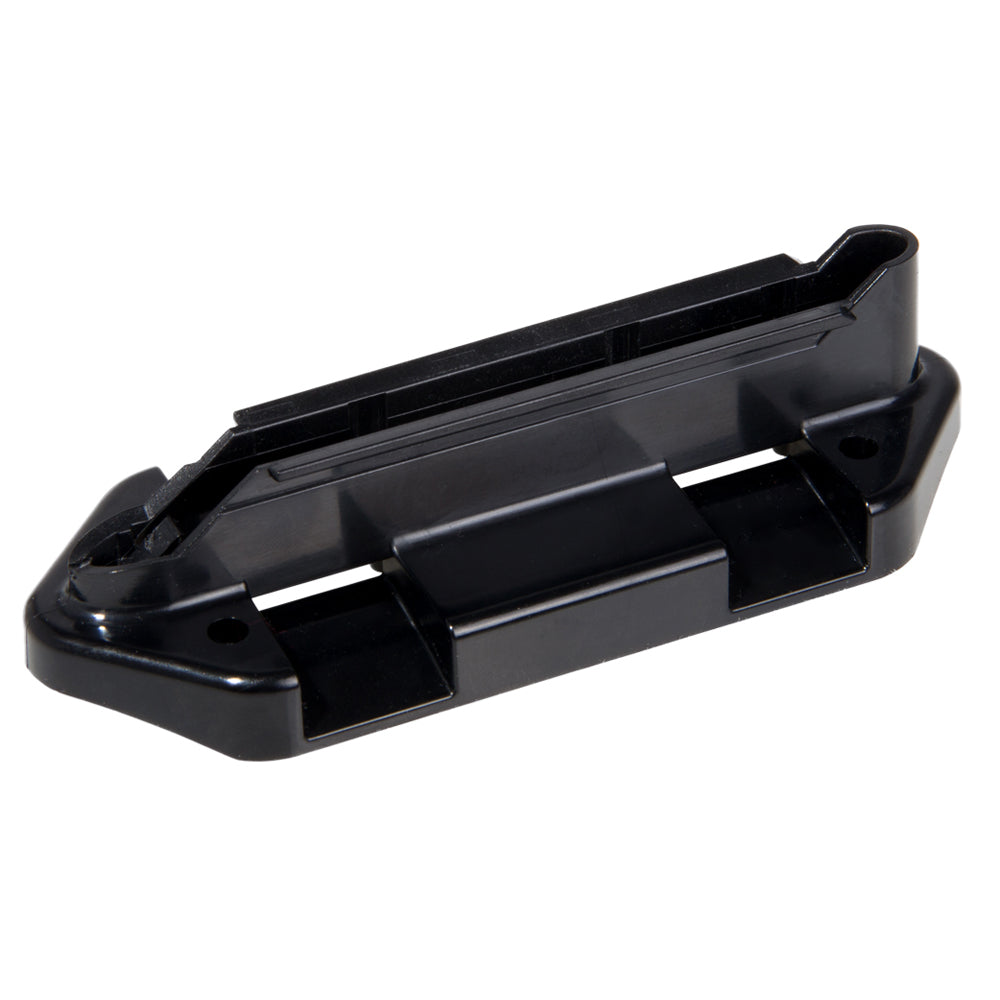

Raymarine Trolling Motor Bracket
Raymarine Trolling Motor Bracket — Product description
Anglers who rely on precise sonar readings while maneuvering through shallow waters or structure know the value of a stable transducer mount. The Raymarine Trolling Motor Bracket steps in as a game-changer, offering a secure and straightforward way to attach your Dragonfly CPT-DV or CPT-DVS transom mount transducers directly to a trolling motor. This setup keeps your sonar cone clean and downward-facing, delivering consistent depth, fish, and bottom detail even at slow trolling speeds.
Seamless Compatibility for Peak Performance
Engineered exclusively for Raymarine's Dragonfly series, this black bracket fits flawlessly with CPT-DV (dual-channel CHIRP) and CPT-DVS (downvision CHIRP) transducers. It's also a perfect match for Dragonfly 4, Dragonfly 5, and Wi-Fish models, ensuring your setup works without adapters or modifications. Whether you're running a compact bow-mount trolling motor on a bass boat or kayak, this bracket maintains the transducer's optimal angle for maximum coverage.
Built Tough for Real-World Fishing Demands
- Rugged Construction: Crafted from durable marine-grade materials that resist corrosion, UV exposure, and impacts from docks or debris.
- Stable Mounting: Clamps securely to most trolling motor shafts, minimizing vibration for crystal-clear sonar images.
- User-Friendly Design: Simple bolt-on installation means less time wrenching and more time fishing—no special tools required.
- Longevity in Harsh Conditions: Proven in saltwater bays, freshwater lakes, and rough tournaments, it outlasts generic alternatives.
Installation Tips for Flawless Results
Getting your transducer up and running takes just minutes. Start by selecting a flat section on your trolling motor shaft, about 12-18 inches above the prop for best water flow. Position the bracket so the transducer faces straight down, zip-tie or clamp any excess cable, and test-deploy in shallow water. Pro tip: Apply marine sealant to bolt threads for extra security against vibrations. This mount shines on popular motors like Minn Kota or MotorGuide, adapting easily to various shaft diameters.
Elevate Your Fishing Game with Reliable Sonar
With this bracket, you'll spot schools of crappie suspended mid-water or bass hugging structure without guesswork. The downward-facing stability reduces air bubbles and cavitation interference common with hull mounts during slow-speed trolling. Fish smarter by pairing it with Dragonfly's intuitive interface for real-time CHIRP imaging, helping you pinpoint hotspots and set the hook faster.
Care and Maintenance for Season-Long Use
Rinse with fresh water after every saltwater trip to prevent buildup. Inspect bolts and clamps seasonally, tightening as needed. Store indoors during off-seasons to shield from extreme weather. This simple routine ensures years of dependable service, keeping your electronics investment protected.
Frequently Asked Questions
Does this bracket work with Dragonfly 4 Pro and 5 Pro models?
Yes, it's fully compatible with Dragonfly 4, 4 Pro, 5, and 5 Pro units when using CPT-DV or CPT-DVS transducers, providing a solid trolling motor mount option.
What trolling motor shaft sizes does it fit?
The bracket accommodates most standard trolling motor shafts from 1 to 1.5 inches in diameter, including popular models from leading brands.
Is installation permanent or removable?
It's fully removable with quick-release clamps and bolts, allowing easy transfer between boats or seasonal removal.
Will it hold up in saltwater environments?
Absolutely—its corrosion-resistant materials are designed for both freshwater and saltwater use, with proper rinsing extending its life.
Can I use it with Wi-Fish wireless sonar?
Yes, it's tailored for Wi-Fish CPT-DV/DVS transducers, enabling portable wireless sonar on your trolling motor.
Does it affect transducer performance?
No, it preserves full CHIRP and DownVision capabilities by holding the transducer at the ideal downward angle with minimal interference.
For more than 80 years, we‘ve been global leaders in high performance marine electronics for the recreational boating and light commercial marine markets. We continue to innovate and provide full electronic systems to boaters around the world. Our products are engineered for the tough marine environment and renowned for ease-of-use, rugged design and reliability. Our full range features chartplotters, fishfinders, radars, marine instruments, marine cameras, AIS units and VHF radios.
Raymarine A80330 Attributes
- Compatibility: Dragonfly CPT-DV And CPT-DVS Transom Mount Transducers
- Color: Black
Raymarine A80330 Features & Benefits
- High-Performance Products Proven In The Harshest Of Environments
- Built To Last Longer Life
- Rugged Design And Reliability
- Easy To Use
- Limited 2 Year Warranty
Raymarine A80330 Warranties
Trolling Motor Bracket
Trolling Motor Bracket specifically designed for the Dragonfly CPT-DV and CPT-DVS transom mount transducers.
The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. It will meet your needs...
SKU: NVN-57097
MPN: A80330
UPC: 723193796177
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Trolling Motor Bracket |
| SKU / MFR# | 57097 |
