Garmin 8-Pin Female to Wire Block Adapter f/echoMAP™ 50s & 70s, GPSMAP® 4xx, 5xx & 7xx, GSD™& 24
Garmin 8-Pin Female to Wire Block Adapter f/echoMAP™ 50s & 70s, GPSMAP® 4xx, 5xx & 7xx, GSD™& 24 — Product description
Seamless Transducer Upgrades for Your Garmin Setup
Upgrade your marine electronics without the hassle of replacing your trusty old transducer. This specialized wire block adapter bridges the gap between legacy 6-pin transducers and modern 8-pin sonar units, ensuring crystal-clear sonar readings on the water. Perfect for boaters and anglers who want to breathe new life into their existing gear, it delivers reliable connectivity that keeps you focused on the fish, not the wiring.
Whether you're retrofitting an older echoMAP or GPSMAP chartplotter, this adapter simplifies the process, saving time and reducing clutter on your helm. Its straightforward design minimizes signal loss, maintaining the precision your Garmin system is known for during critical moments like trolling for walleye or scanning for structure in deep water.
Key Features That Make a Difference
- Direct 6-to-8 Pin Conversion: Matches stripped wires from 6-pin transducers to the 8-pin female connector, with clear labeling for foolproof setup.
- Compact Wire Block Design: Organizes connections neatly, preventing shorts and corrosion in harsh marine environments.
- Plug-and-Play Reliability: No soldering required—just strip, insert, and crimp for a secure, vibration-resistant bond.
- Marine-Grade Durability: Built to withstand saltwater exposure, UV rays, and constant boat motion.
- Includes Setup Guidance: Step-by-step instructions tailored for DIY boat owners, from weekend warriors to seasoned captains.
Perfect Fit for Popular Garmin Models
Designed specifically for Garmin's evolving lineup, this adapter works flawlessly with echoMAP 50s and 70s series, GPSMAP 400, 500, and 700 series chartplotters, as well as the GSD 24 sounder module. It's ideal for dual-screen setups or when pairing older transducers like the classic 010-10272-00 or similar 6-pin models with newer heads.
Check your transducer's pin count and sonar module specs to confirm—most 6-pin Garmin transducers from the early 2000s onward pair seamlessly, extending the usability of gear that's already proven itself on countless trips.
Easy Step-by-Step Installation Guide
Installing this adapter takes under 30 minutes with basic tools like wire strippers and crimpers. Here's how to get it done right:
- Power down your Garmin unit and disconnect the transducer cable.
- Carefully strip the outer jacket from your 6-pin transducer cable to expose the individual wires (typically power, ground, signal, and shield).
- Match wires to the labeled terminals on the wire block—red to power, black to ground, and so on.
- Secure with provided crimps or screws, then plug the 8-pin female end into your sonar port.
- Route cables securely, test on water, and enjoy uninterrupted sonar performance.
Pro Tip: Apply dielectric grease to connections for extra protection against moisture, especially in open-water applications.
Why Boaters Choose This Adapter
Extending the life of your 6-pin transducer means avoiding costly replacements—often hundreds saved per unit. It preserves the sensitivity and cone angle you've tuned over seasons, delivering consistent bottom tracking and fish arches without recalibration. Anglers report sharper target separation at high speeds, while kayakers appreciate the lightweight, low-profile setup.
For multi-boat owners, it's a versatile fix that standardizes wiring across vessels. In competitive fishing or survey work, the reduced downtime translates to more productive outings and better catches.
Tips for Optimal Performance and Maintenance
To maximize longevity:
- Inspect connections annually for corrosion, especially after saltwater use.
- Avoid overtightening crimps to prevent wire damage.
- Pair with high-quality marine wire if extending runs beyond 20 feet.
- Test in shallow water first to verify gain and frequency settings match your transducer.
- If noise appears, check for ground loops by isolating the transducer cable from other electronics.
Common issues like faint sonar often stem from poor grounds—double-check these first for quick fixes.
Frequently Asked Questions
What is the main purpose of this Garmin adapter?
It converts legacy 6-pin transducer wires to an 8-pin connection, allowing older transducers to work with newer Garmin sonar units without replacement.
Which Garmin models does this adapter support?
It's compatible with echoMAP 50s and 70s, GPSMAP 400, 500, and 700 series chartplotters, and GSD 24 sounder modules.
Do I need special tools to install it?
Basic tools like wire strippers, crimpers, and a screwdriver suffice. No soldering is required, making it DIY-friendly.
Will this adapter affect sonar performance?
No, it maintains full signal integrity when installed correctly, preserving depth, sensitivity, and fish detection capabilities.
Is it suitable for saltwater use?
Yes, its marine-grade construction resists corrosion, but applying dielectric grease enhances protection in harsh conditions.
Can I use it with non-Garmin transducers?
It's optimized for Garmin 6-pin transducers. Other brands may require custom wiring, which isn't recommended for best results.
What if my sonar shows interference after installation?
Check ground connections and cable routing away from engines or radios. Adjust keel offset in your Garmin settings if needed.
8-Pin Female to Wire Block Adapter

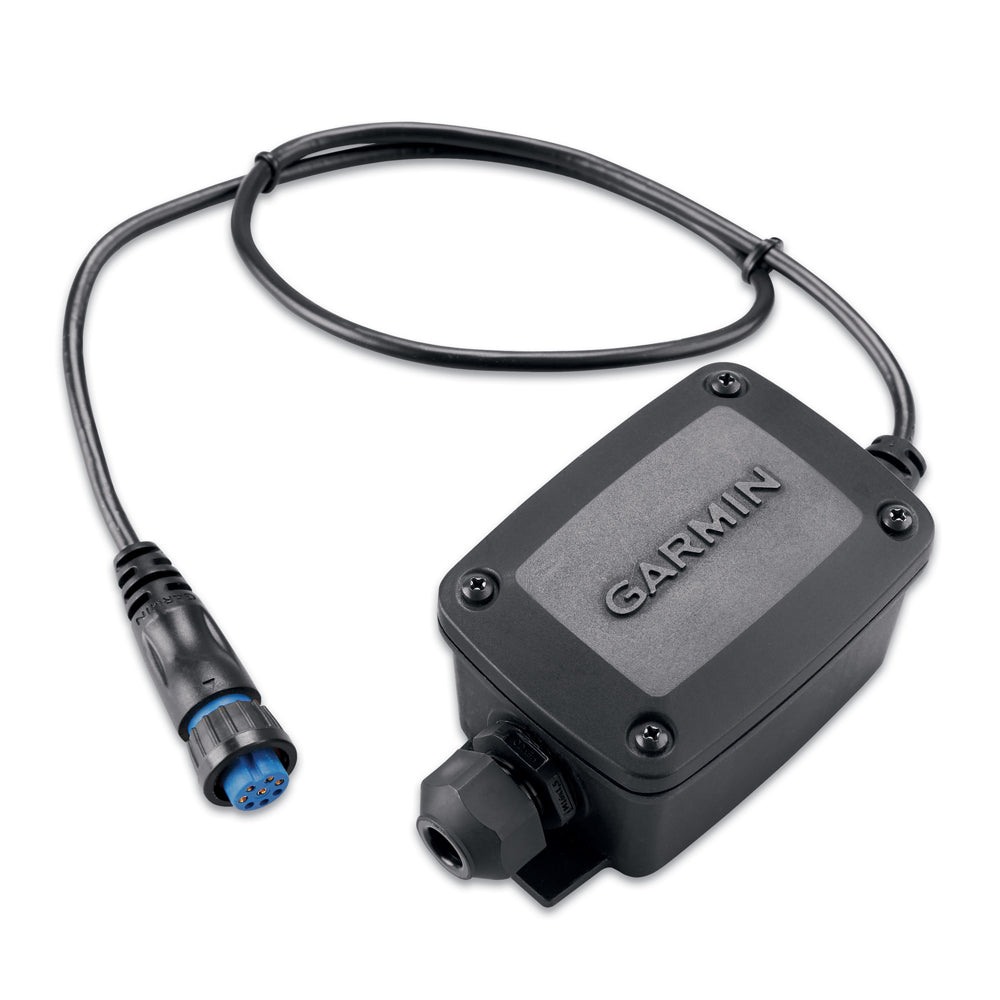

Garmin's adapter allows you to connect the wires on legacy 6-pin transducers with newer sonar that requires an 8-pin connection.
Garmin 6-pin sensor to 8-pin Sonder adapter junction box. This adapter allows you to connect the wires on the old 6-pin transducer with the required 8-pin...
SKU: NVN-44187
MPN: 010-11613-00
UPC: 753759976286
