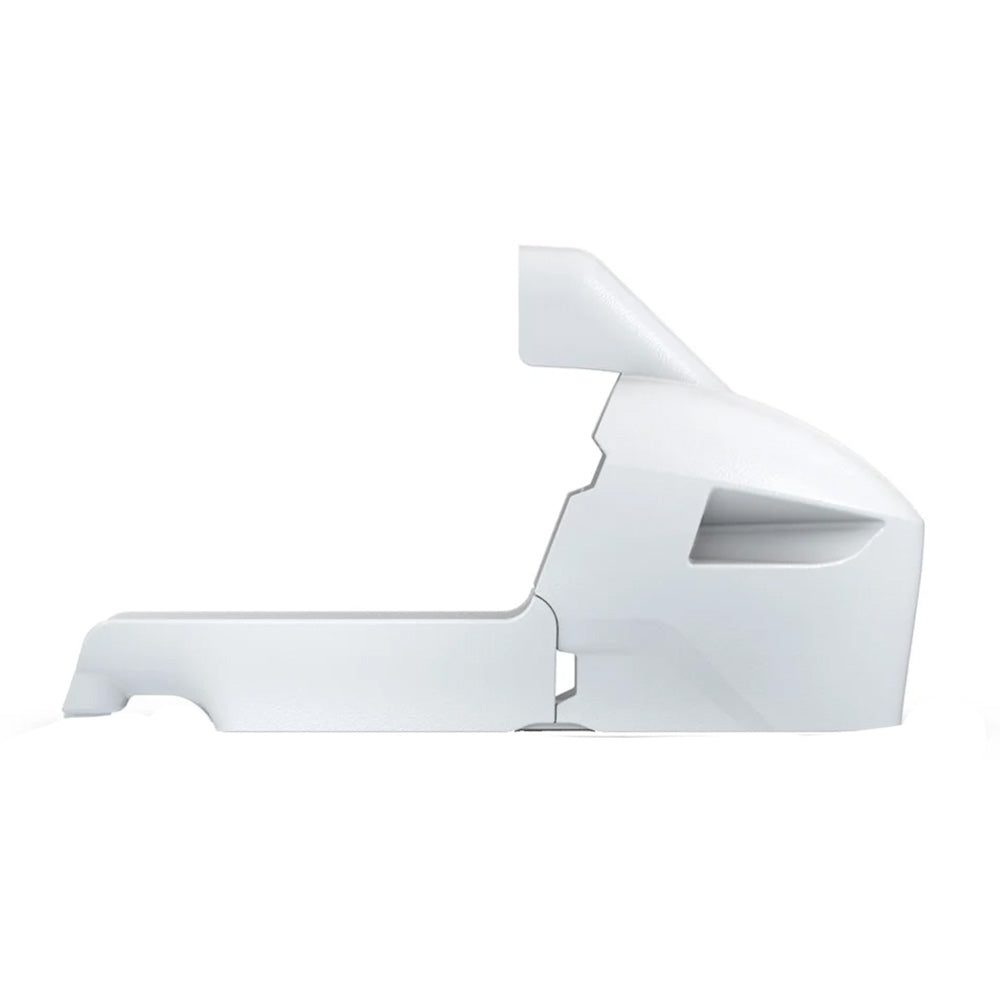

Garmin Large Nose Cone - GT56 Transducer Compatible
Garmin Large Nose Cone - GT56 Transducer Compatible — Product description
Upgrade your trolling motor setup with the Garmin Large Nose Cone designed specifically for GT56 transducers. This robust accessory swaps out the factory nose cone, creating a seamless mount for advanced sonar scanning right at the bow. Anglers chasing bass in shallow weeds or walleye on deep structure swear by this mod—it positions the GT56 transducer perfectly for crystal-clear CHIRP, ClearVü, and SideVü imaging without the drag or bubbles that plague shaft-mounted alternatives.
Streamlined Design for Peak Performance
Crafted from durable, hydrodynamic plastic, this large nose cone hugs the contours of your trolling motor's lower unit. It minimizes turbulence, ensuring consistent sonar returns even at higher speeds. Unlike basic adapters, its tailored fit for the GT56 series—known for its high-frequency detail and wide coverage—delivers pinpoint accuracy for spotting structure, baitfish schools, and trophy fish hiding in cover.
- Precision-engineered housing protects the transducer from impacts and debris.
- Optimized water flow reduces cavitation for reliable bottom tracking.
- Easy-access cable routing keeps wiring tidy and secure.
Perfect Fit for Popular Trolling Motors
This nose cone shines on select Minn Kota models like Ulterra, Terrova, and Riptide variants, where the GT56 transducer thrives in the forward position. It's a game-changer for boats running Garmin's ECHOMAP or STRIKER series chartplotters, unlocking full sonar potential without drilling or custom fab work. Verify your motor's shaft diameter matches for a plug-and-play install—most users report it bolts right up to OEM mounting points.
Installation Insights from the Field
Swapping the nose cone takes savvy rather than heavy tools. Start by powering down and removing the motor from water. Gently pry off the stock cone, align the new one with transducer cable port, and secure with provided hardware. Pro tip: Apply marine sealant around cable entries to fend off leaks during rainy tournaments. For full transducer reroutes through the shaft, pair it with Garmin's dedicated kit to avoid snags. Most setups wrap up in under an hour, leaving more time for rigging baits.
- Disconnect battery and lift motor.
- Remove old cone (note torque specs).
- Mount GT56 transducer securely inside new cone.
- Reattach and test sonar ping at idle.
Real-World Wins for Serious Fishers
Picture this: You're idling over a weedline at dawn, and SideVü reveals a submerged stump loaded with crappies—detail the stock setup would blur. This nose cone elevates GT56 performance by keeping the ceramic element forward-facing and bubble-free, ideal for tournament pros graphing ledges or ice anglers transitioning to open water. It boosts confidence in spot-on-a-dime maneuvers, turning good days into limits. Long-term, it preserves transducer life against shaft vibrations, saving headaches down the line.
Frequently Asked Questions
Does this large nose cone work with all GT56 transducers?
Yes, it's engineered specifically for Garmin GT56 series transducers, including UFL and UHD models, ensuring a secure and watertight fit for optimal sonar performance.
Will installing this affect my trolling motor's speed or handling?
No, the hydrodynamic shape maintains original thrust and steering response. Many users note smoother operation due to reduced drag compared to exposed transducer mounts.
Is this compatible with Minn Kota Ulterra motors?
Absolutely—it's a direct fit for Ulterra and similar Minn Kota models with standard shaft housings. Always double-check your motor's nose cone size for the large version.
How do I route the transducer cable with this nose cone?
The cone features pre-molded channels for clean cable passes. For shaft routing, use Garmin's transducer replacement kit to thread wires safely without pinching.
Can this nose cone improve sonar clarity in shallow water?
Definitely. By positioning the GT56 forward and minimizing air entrainment, it sharpens images in depths under 10 feet, helping you avoid snags and pinpoint weed edges.
What's the material, and is it durable for saltwater use?
Made from high-impact, UV-resistant composite, it's built to withstand freshwater and saltwater exposure. Rinse after use to maximize longevity.
Do I need special tools for installation?
Basic hand tools like screwdrivers and pliers suffice. No drilling required—it's a straightforward replacement for the factory cone.
Ready to dial in your electronics for the next bite? This nose cone bridges the gap between your trolling motor and Garmin's cutting-edge sonar, delivering data you can trust when it counts.
Large Nose Cone - GT56 Transducer Compatible
Replace the standard part of your compatible trolling motors or use the nose cone to install a compatible Garmin GT56 model transducer. If you’re rerouting a new transducer through the trolling motor shaft, the transducer replacement kit is recommended.
SKU: NVN-107214
MPN: 010-12832-31
UPC: 753759346850
