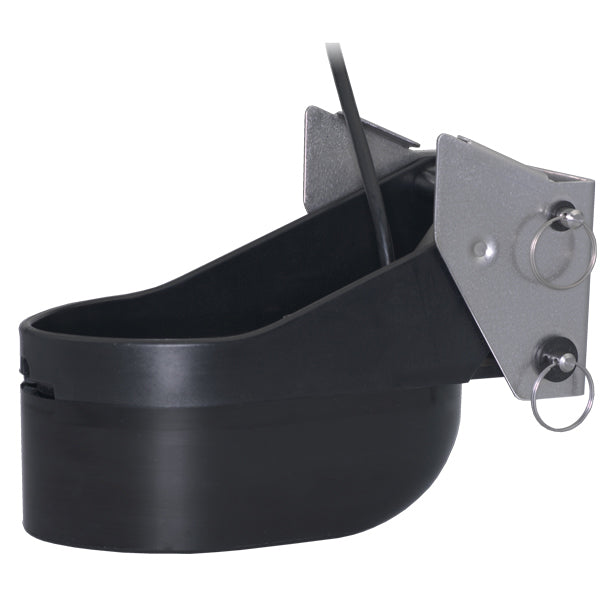

Airmar TM185C Transducer Medium CHIRP With Mix-N-Match Plug

1 kW

Airmar's TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1500') and gives ultra-clear target resolution.

Airmar TM185C Transducer

Medium CHIRP With Mix-N-Match Plug

Model: TM185-HW

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 152 m (500')
• High Frequency: 150 kHz to 250 kHz - Constant 25° beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency 200 kHz plus everything else in the bandwidth
• High frequency band provides excellent shallow to mid-depth performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Urethane transom transducer with a stainless steel bracket for installation on outboard and I/O powered boats
• Recommended boat size: Up to 10 m (32')
• Recommended for use on planing and displacement hulls in fiberglass or wood
• Also available in thru-hull (B175HW) and in-hull (M285HW) models
• Exclusive Xducer ID® technology

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

Specifications

Weight	4.16 kg (9.17 lb)
Accommodates Transom Angles	3° to 21°
Acoustic Window	Urethane
Urethane transom transducer with a stainless steel bracket
One internal broadband ceramic assembly

What's in the Box:

• TM185C-HW-MM

""

• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 457 m (1500')
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Stainless steel bracket for installation on outboard or inboard/outboard powered boats
• SEALCAST, seamless, urethane housing for long life in the water
• Also available as thru-hull with fairing (B285M), thru-hull low-profile (B175M), and in-hull (M135M) mounts
• Patented Xducer ID technology

SKU: NVN-1000211
MPN: TM185C-M-MM
UPC:
