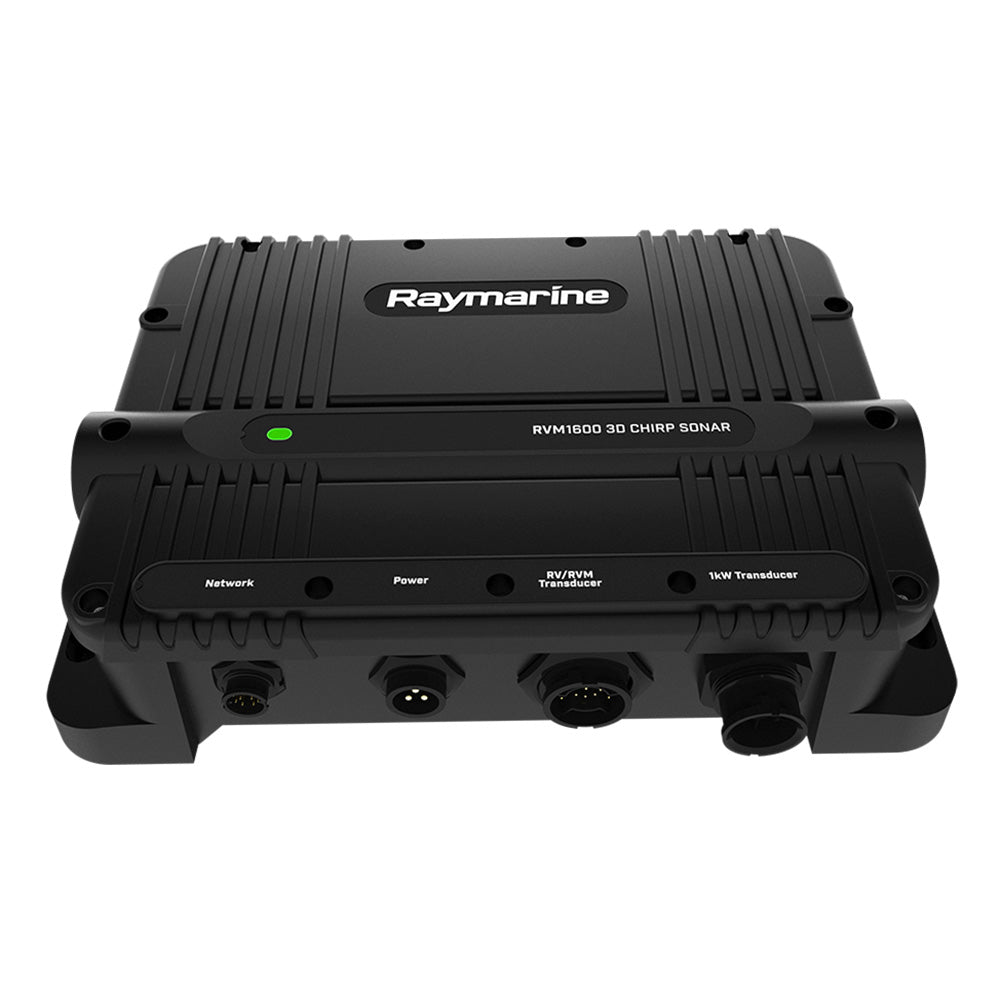

Raymarine RVM1600 Fishfinder Module w/RealVision Max
Raymarine RVM1600 Fishfinder Module w/RealVision Max — Product description
Unlock Crystal-Clear Underwater Worlds with RealVision MAX Technology
Imagine gliding over hidden reefs, spotting schools of fish darting around wrecks, or precisely tracking baitfish from afar—all without guessing. The Raymarine RVM1600 fishfinder module brings this vision to life through its groundbreaking RealVision MAX sonar. This isn't just another sonar unit; it's a game-changer for serious anglers who demand photo-like clarity in every scan.
Built on next-gen CHIRP transducers with larger elements and boosted power, RealVision MAX pushes boundaries. Faster ping rates and refined signal processing sharpen images, making bottom structure pop and fish targets impossible to miss. High-contrast color palettes cut through clutter, turning murky depths into a vivid seascape. Whether you're chasing trophy bass in shallow bays or deep-water species offshore, this module elevates your Axiom chartplotter setup.
Key Features That Set RVM1600 Apart
- Seamless Network Integration: Plugs right into RayNet on Axiom displays with LightHouse 4.3 or later—no fuss, instant upgrade.
- Multi-Channel Mastery: Handles CHIRP DownVision, SideVision, RealVision 3D, and traditional CHIRP simultaneously for all-around coverage.
- Extended Range Power: 600-watt High CHIRP dives deeper, often eliminating extra transducers. Pair with 1kW Airmar options for ultra-deep pursuits up to 3,000 feet.
- Stabilized 3D Views: Built-in AHRS in transducers auto-adjusts for boat roll and pitch, delivering steady, accurate 3D sonar perspectives.
- Quick Temp Reads: Integrated sensor for real-time water temperature to dial in lure choices and track thermoclines.
These aren't gimmicks—they're tools honed from years of marine innovation, trusted by pros for reliable performance in rough seas.
Dive Deep into Multi-Channel Sonar Capabilities
RealVision MAX isn't one-trick; it's a symphony of sonar channels working in harmony:
- CHIRP DownVision: Photo-real bottom scans reveal fish hugging structure or suspended mid-water with pinpoint detail.
- CHIRP SideVision: Widens your scan horizon port and starboard, uncovering fish and features farther out than standard side-scan tech.
- RealVision 3D: Wraparound views below, behind, and beside your boat simplify navigation over complex bottoms—perfect for drift fishing or wreck hunting.
- Traditional CHIRP (up to 1kW): Versatile frequency sweeps (42-250kHz) for broad coverage in varied depths.
Anglers report easier hookups because targets stand out against refined palettes, reducing second-guesses on structure vs. fish.
RealVision MAX Transducers: The Heart of Superior Imaging
These transducers aren't basic—they pack DownVision, SideVision, 600W High CHIRP, and 3D into compact transom or thru-hull designs. The onboard attitude and heading sensors stabilize imagery against waves, while the responsive temp probe keeps you informed. Result? Stronger returns from depths over 1,200 feet, with fish echoes clear past 400 feet. It's like having eyes underwater that adapt to your boat's every move.
Rugged Build for Real-World Boating
Engineered to thrive in harsh marine environments: IPX6/IPX7 waterproofing shrugs off spray and submersion. Operates from -25°C to +55°C, handles 93% humidity, and draws low power (under 11W max) for long days on the water. Compact dimensions (188mm height, 299mm width) tuck neatly behind displays.
Technical Specs at a Glance
| Category | Details |
|---|---|
| Environmental | Humidity up to 93% @ 40°C; Operating temp -25°C to +55°C; Waterproof IPX6/IPX7 |
| Sonar Power | RealVision MAX: 600W RMS High CHIRP; Traditional CHIRP: 1kW RMS (model dependent) |
| Channels | High CHIRP (200kHz), Down/SideVision (350kHz), 3D (350kHz), 1kW CHIRP (42-250kHz) |
| Power | 12/24V DC (10.8-31.2V); Max 10.4W; 5A fuse |
| Dimensions & Weight | 188 x 299.4 x 84.4 mm; 1.585 kg |
What's Included for Easy Setup
- RVM1600 3D CHIRP sonar module
- 1.5m power cable
- 2m RayNet to RayNet network cable
- Mounting hardware (M4.5 x 20 screws x4)
- Full documentation
Everything you need to network and mount—simple for DIY boaters or pros.
Pro Tips for Maximizing Your RVM1600
Fine-tune ping rates for shallow structure work, or crank CHIRP sweeps for deep drops. Combine with forward-facing sonar on Axiom for unbeatable coverage. In tournaments, the 3D view shines for holding drifts over hotspots. Saltwater or freshwater, it adapts, but clean transducers regularly for peak performance.
RVM1600 Fishfinder Module with RealVision Max
The next generation of DownVision, SideVision, 3D, and conventional CHIRP sonar, RealVision MAX, delivers vivid sonar imagery and fish targets like never before. RealVision MAX starts with all-new high-performance RealVision CHIRP transducers, upgraded with larger elements and increased power output for extended-range performance. Next, RealVision MAX signal processing and faster ping rates improve visual fidelity and target identification. With RealVision MAX, the structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.
Features:
- RayNet network compatible with all Axiom displays running LightHouse 4.3 or higher
- Employs the same RealVision MAX sonar technology built into the new Axiom 2 Pro RVM chartplotters
- RealVision MAX sonar processing, combined with faster ping rates, delivers superior fish finding in CHIRP, Side, Down, and RealVision channels.
- RealVision MAX high contrast color palettes provide better visibility of fish and structure.
- The more powerful 600-watt traditional CHIRP frequency of RealVision MAX transducers provides a deeper sonar range, reducing the need for additional transducers.
- RealVision 3D provides accurate target location to help pinpoint that elusive wreck or set up the perfect drift.
- Support for 1kW Airmar CHIRP transducers enables fishing in waters up to 3,000ft (914 meters).
Multi-Channel Fishfinder:
- CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail.
- CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars.
- RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure
RealVision MAX Transducers:
RealVision MAX transom mount and through hull transducer provide DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600. RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion. A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.
What's In The Box?
- RVM1600 3D CHIRP sonar module
- Power cable 1.5 m (4.9 ft)
- RayNet (female) to RayNet (female) network cable 2 m (6.6 ft)
- Documentation
- Mounting screws M4.5 x 20 (x 4)
SKU: NVN-98307
MPN: E70665
UPC: 723193844724
