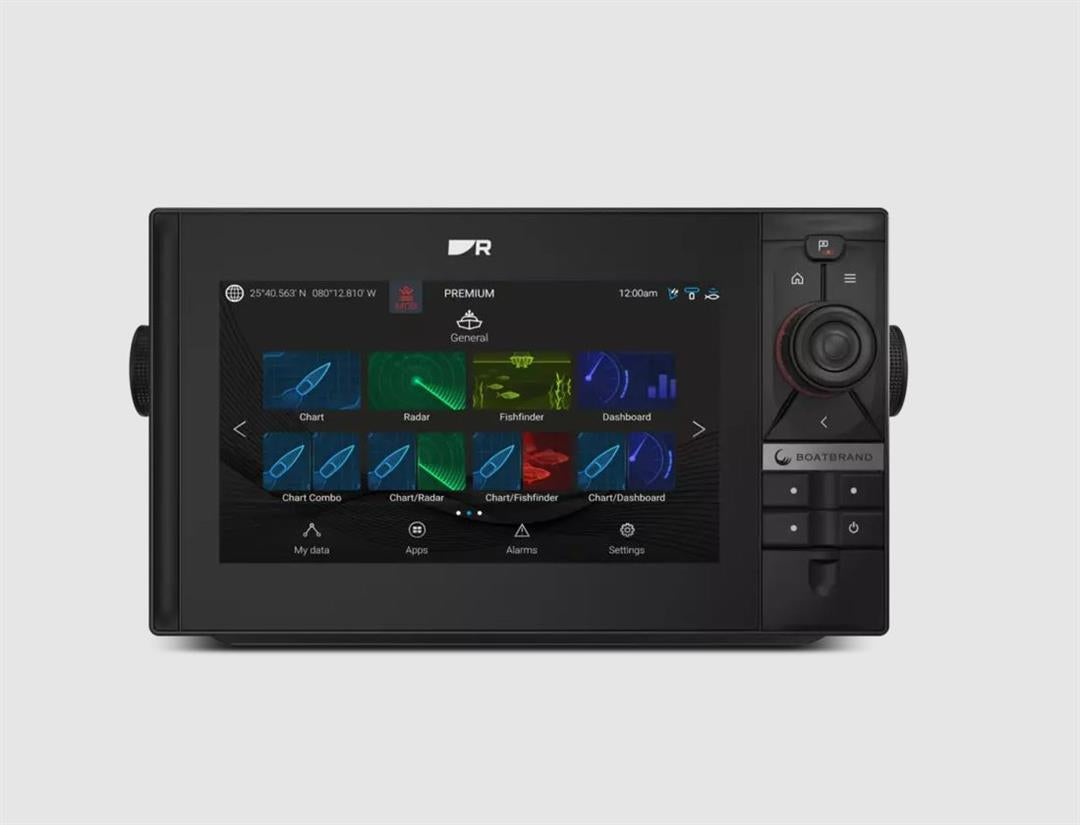

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer
Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer — Product description
Unlock Superior On-Water Performance with Advanced Fishfinding
Picture this: you're miles offshore, waves rolling, and you need crystal-clear visuals of what's below without missing a beat on navigation. The Raymarine Axiom 2 Pro 9 RVM steps up as your all-in-one command center, blending high-definition charting, sonar prowess, and seamless system integration. Its RealVision MAX CHIRP technology delivers photo-like images of the seabed, structure, and fish schools, making it easier to pinpoint prime fishing spots even in challenging depths.
What sets this apart is the built-in dual sonar capabilities—wide-spectrum CHIRP for detailed bottom scanning alongside a powerful 1kW channel for probing deeper waters. Anglers report sharper target separation, helping distinguish baitfish from keepers effortlessly. Pair that with the intuitive LightHouse operating system, and you're plotting routes or adjusting settings in seconds, rain or shine.
HybridTouch: Touchscreen Freedom Meets Keypad Reliability
In calm bays, swipe and tap with precision on the 9-inch HD IPS display boasting 1300 nits brightness for glare-free views. When conditions turn choppy, switch to the rugged keypad—no more slippery fingers fumbling controls. Customize with interchangeable keypads: opt for autopilot shortcuts or program soft keys for your most-used functions. The HydroTough nano-coating sheds water instantly, while smart ambient sensors tweak backlighting automatically, keeping your focus on the horizon.
- Effortless control in any weather—touch or keys, your choice.
- 88-degree viewing angles from all sides for shared helm views.
- Multi-touch support handles complex gestures smoothly.
Seamless Networking and Expansion Potential
Powered by a 6-core processor, this unit handles multiple data streams without lag—GPS fixes at 10Hz, radar overlays, and video inputs all in sync. Dual RayNet Ethernet ports link to other displays or radars, while NMEA 2000 and Wi-Fi create a boat-wide network. Stream charts to your tablet via the app, or mirror video to a salon TV through HDMI.
Storage is generous with 64GB internal plus dual MicroSDXC slots for charts, routes, and sonar logs. Bluetooth pairs with wireless accessories, and the external GPS antenna ensures pinpoint accuracy using GPS, GLONASS, Galileo, and BeiDou constellations.
| Category | Key Specs |
|---|---|
| Display | 9" diagonal, 1280x720 HD resolution, IPS panel |
| Sonar | RealVision MAX (600W RMS high CHIRP + Down/SideVision/3D at 350kHz), 1kW dual-channel CHIRP (42-250kHz) |
| Connections | 2x RayNet Ethernet, NMEA 2000/SeaTalkng, Wi-Fi (2.4/5GHz), Bluetooth 4.0, HDMI out, BNC video in, USB Micro-B |
| Power & Environment | 8-32V DC, IPX6/7 waterproof, -25°C to +55°C operating |
| Dimensions (Trunnion) | Width 329.5mm (12.97"), Height 186.2mm (7.33"), Depth 234.9mm (9.25") |
Installation Insights and Pro Tips for Peak Performance
Mounting is straightforward with the included trunnion bracket and flush options—secure it at the helm for optimal viewing. Connect transducers via the dedicated 25-pin RealVision and 11-pin 1kW ports (transducer sold separately). For best sonar results, choose high-quality bronze or stainless transducers matched to your hull type. Network multiple units for redundancy; one as primary fishfinder, others for charts.
Maintenance is minimal: rinse with fresh water after saltwater exposure, update firmware via Wi-Fi for new features. Pro anglers swear by sonar history replay to analyze missed bites, turning every trip into a learning session.
Expand with radar for collision avoidance or cameras for docking confidence. Its low power draw (under 33W at 12V) suits battery-conscious setups.
Complete Kit for Quick Setup
- Main display unit with user-configurable keypad
- Suncover and protective gasket
- Trunnion bracket and knobs for secure mounting
- Power/video/audio cable (1.5m)
- RayNet network cable (2m) and DeviceNet to SeaTalkng adapter (1m)
- Mounting hardware and documentation
Frequently Asked Questions
What makes RealVision MAX sonar stand out for fishing?
RealVision MAX combines high CHIRP conical beams with DownVision, SideVision, and 3D imaging for unprecedented detail. It reveals bottom structure, wrecks, and fish with sharper targets and extended range, ideal for both shallow reefs and deep drops.
Does this chartplotter include a transducer or preloaded charts?
No, it ships without a transducer or maps, allowing you to select compatible options tailored to your boat and fishing style. Add charts via MicroSD cards for your region.
How does HybridTouch improve usability in rough conditions?
HybridTouch lets you use intuitive touchscreen gestures in fair weather and switch to physical keypad controls when waves make touch unreliable, ensuring command in all sea states.
Can I network this with other Raymarine devices?
Yes, with dual Ethernet ports, NMEA 2000, and Wi-Fi, it integrates seamlessly with radars, autopilots, engines, and additional displays for a unified helm setup.
What transducers are compatible with the sonar ports?
It features a 25-pin port for RealVision MAX transducers (supporting high CHIRP, Down/SideVision, 3D) and an 11-pin for 1kW CHIRP models, covering depths from shallow structure to over 3,000 feet.
Is the display visible in direct sunlight?
Absolutely—1300 nits peak brightness, HydroTough water-repelling coating, and anti-glare optics ensure vivid colors and sharp visibility even under harsh sun.
What's the GPS accuracy like?
Internal multi-GNSS receiver (GPS/GLONASS/Galileo/BeiDou) delivers ≤5m accuracy with SBAS, refreshing 10 times per second for smooth tracking during high-speed runs.
Axiom(R) 2 Pro combines chartplotter, fish finder, radar, autopilot and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™: a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision(R) MAX CHIRP sonar technology. Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Enjoy faster, seamless integration of GPS, fishfinder, radar and video thanks to the super intuitive LightHouse operating system.
Raymarine E70654 Attributes
- Maps: Without Map
- Display Size: 9 Inch LCD
- Display Type: HD With 1280 X 720 Pixels Resolution
- Interface: Touchscreen
- Dimensions: 12.97 Inch Width X 7.33 Inch Height
- Waterproof: IPX6/ IPX7 Rating Waterproof
- Sonar Compatibility: RealVision MAX CHIRP And Dual Channel 1kW CHIRP Sonar
Raymarine E70654 Features & Benefits
- Axiom 2 Pro's HydroTough™ Nano-Coating Technology Repels Water For Reliable Touchscreen Control, Enhanced Colors And Excellent Sunlight Visibility
- Smart Backlighting And An Ambient Light Sensor Automatically Adjust Display Brightness For Day And Evening Lighting Conditions
- Plan And Plot Your Course With HybridTouch™ Control And Take Command With Reliable Keypad Control When Seas Are Rough
- Customize Your Axiom 2 Pro With Interchangeable Keypads That Allow You To Choose Between A Dedicated Evolution Autopilot Keypad Or User-Programmable Soft Keys
- RealVision MAX Ups Your Fishfinding Game With Increased Range, Better Resolution And Sharper Fish Targets
- Created From Official Hydrographic Chart Sources, You Can Trust LightHouse Charts For Maximum Readability, Intuitive Navigation, And Superior Quality
- Add A Quantum 2 Radome Or Cyclone Open Array Radar And Navigate Safer With Doppler Target Tracking And Radar Or Chart Overlay
- Built-In Wi-Fi Lets You View And Control Your Axiom 2 Pro On Your Phone Or Tablet With The Raymarine Mobile Application
- Limited 2 Year Warranty
Axiom 2 Pro 9 RVM Chartplotter/Fishfinder - No Transducer
Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro RVM chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology. RealVision MAX ups your fish-finding game with DownVision, SideVision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.
Features:
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Find more fish with built-in RealVision MAX CHIRP and dual channel 1kW CHIRP sonar
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment system
What's in the Box?
- Display unit
- User Configurable Keypad
- Suncover
- Gasket
- Trunnion knobs (x 2)
- Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- Mounting fixings x 4
- Documentation
- Power/Video/Audio cable 1.5 m (4.92 ft)
SKU: NVN-98293
MPN: E70654
