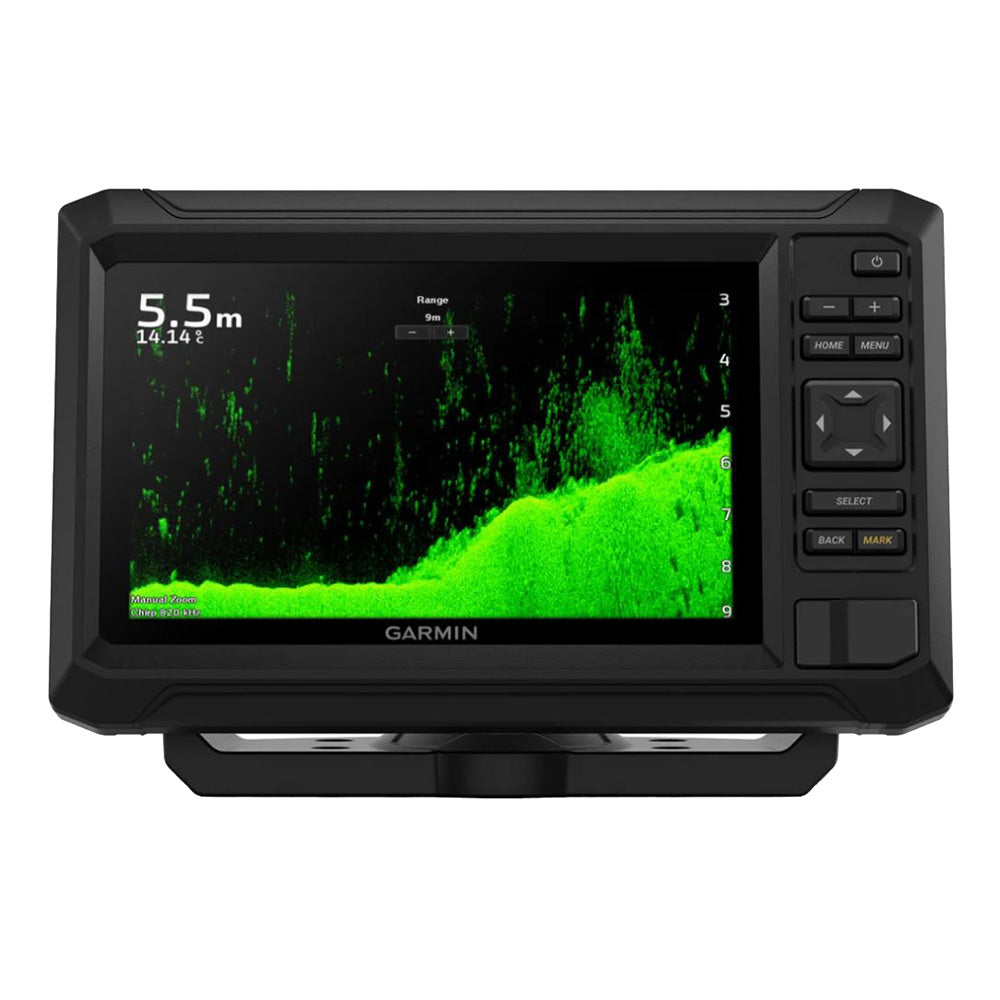

Garmin ECHOMAP™ UHD2 72cv w/o Transducer
Garmin ECHOMAP™ UHD2 72cv w/o Transducer — Product description
Discover Crystal-Clear Views Beneath the Surface
Imagine gliding across your favorite lake or coastal stretch, pinpointing fish and structure with unmatched clarity—no guesswork involved. The Garmin ECHOMAP UHD2 72cv delivers that edge, blending a responsive 7-inch keyed display with powerful sonar imaging that turns murky waters into a transparent playground for serious anglers. Whether you're chasing bass in shallow coves or tracking schools offshore, this chartplotter elevates your outings by revealing details others miss.
Superior Sonar That Puts Fish on Notice
Pair it with your choice of Garmin transducers to unlock dual sonar prowess: traditional CHIRP for deep-water precision across multiple frequencies (50/77/83/200 kHz) and ClearVü scanning sonar spanning 260/455/800/1000/1200 kHz. What sets it apart? Vivid, high-contrast color palettes that make baitfish, wrecks, and bottom contours pop—even in low-light or turbid conditions. Anglers report spotting subtle ledges and suspended targets faster, leading to more hookups during prime bite windows.
Why ClearVü Shines for Structure Scanning
- Side-to-side coverage reveals hidden drop-offs and weed beds.
- High-frequency options deliver photo-like detail up close.
- Traditional CHIRP excels at marking fish in varied depths.
Pro tip: In rivers with heavy current, dial in the mid-range CHIRP for optimal target separation without clutter.
Mapping Mastery for Home Waters and Beyond
Hit the water prepped with built-in Garmin Navionics+ charts for inland and coastal areas, complete with Auto Guidance+ for safe routing around no-go zones. Tide tables keep you synced with cycles, while optional upgrades like LakeVü g3 Ultra or BlueChart g3 Vision add contour shading and satellite overlays. Best part? Garmin Quickdraw Contours lets you log your own HD maps on the fly, building a personal library of hotspots that evolves with every trip.
Expand Your Chart Options Seamlessly
| Map Type | Key Benefits |
|---|---|
| LakeVü g3 | 1-foot contours on 18,000+ lakes |
| BlueChart g3 | Coastal details with shading |
| Navionics Vision+ | SonarChart Live for real-time bathymetry |
Stay Connected Without the Wires
Wi-Fi networking links multiple UHD2 units effortlessly—share sonar screenshots, waypoints (up to 5,000), routes (100 total), and tracks (50,000 points across 50 logs) across your boat. Sync with the ActiveCaptain app for OneChart flexibility, community Quickdraw data, and over-the-air updates. It's like having a crew of mapping pros whispering secrets from one console to another.
Real-World Networking Wins
On big-water days, broadcast a hot reef from the bow unit to the stern display instantly. No cables snagging gear, just seamless teamwork.
Rugged Build for Relentless Adventures
Measuring 9.1 x 5.6 x 2.7 inches and weighing just 1.5 lbs, this IPX7 waterproof unit laughs off splashes and spray. The 800x480 WVGA display stays readable in sunlight, with bail or flush mounting for any helm setup. Powered by 9-18 VDC (max 18W draw), it sips battery life on typical 12V systems.
Bonus: Built-in 5 Hz GPS/GLONASS/Galileo with WAAS support tracks your position with pinpoint accuracy, even under tree cover or in canyons.
Quick Setup and Everyday Wins
- Mount securely with included tilt or flush hardware.
- Connect the power/data cable and transducer port.
- Pair via Wi-Fi to ActiveCaptain for charts and updates.
- Customize sonar palettes and Quickdraw on your first drift.
Users love how intuitive controls minimize fumbling—perfect for solo trips or teaching newcomers. Regular wipes with freshwater keep the screen pristine after salty sessions.
Connections and Expandability
One 4-pin transducer port and Garmin Marine Network via Wi-Fi mean easy growth. Slot in a 32GB microSD for custom data or extra maps, keeping your core memory free for routes and tracks.
Frequently Asked Questions
Does the Garmin ECHOMAP UHD2 72cv come with a transducer?
No, this model ships without a transducer, allowing you to select the ideal Garmin option for your boat and fishing style, such as GT8HW-IF for all-around performance.
What kind of sonar does it support?
It features built-in support for CHIRP traditional sonar (50/77/83/200 kHz) and ClearVü scanning sonar (260/455/800/1000/1200 kHz), delivering 500W RMS power for clear images.
Can I network multiple units together?
Yes, compatible 5-inch and 7-inch ECHOMAP UHD2 models connect wirelessly via Wi-Fi to share sonar data, waypoints, routes, and more across your vessel.
What maps are preloaded?
It includes Garmin Navionics+ for inland and coastal charts with Auto Guidance+, tide data, and a subscription for updates via the ActiveCaptain app.
Is it suitable for saltwater fishing?
Absolutely—IPX7 waterproofing and coastal BlueChart compatibility make it ideal for offshore trips, with vivid palettes cutting through green water.
How do I get software updates?
Connect to Wi-Fi and use the free ActiveCaptain app on your smartphone for automatic notifications and seamless over-the-air updates.
What's the display resolution and size?
The 7-inch WVGA display offers 800 x 480 pixel resolution in a bright, sunlight-readable TN panel, perfect for helm visibility.
ECHOMAP™ UHD2 72cv without Transducer
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.
Features:
- 7” display size
- The bright keyed display is made for convenience
- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars
- What’s under the water looks even better with high-contrast vivid color palettes
- Wi-Fi connectivity2 between compatible chartplotters makes it easy to share info
- Enjoy No. 1 in mapping with Garmin’s LakeVü g3 and BlueChart® maps with Navionics® data
Sonar Support
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Bundle the Transducer
The ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
Preloaded Charts
Know the waters users are in as if they grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.
Wireless Networking
If users have another compatible ECHOMAP UHD2 chartplotter on the boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data, and more.
In the Box:
- ECHOMAP™ UHD2 72cv
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Specifications:
General:
- Dimension: 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
- Weight: 1.5 lbs (0.7 kg)
- Waterproof: IPX7
- Display Type: WVGA, TN
- Display Size: 6.1" x 3.4" (15.5 x 8.7 cm)
- Display Resolution: 800 x 480 pixels
- Mounting Options: Bail or flush
- Input: Keyed
Maps & Memory:
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
- Waypoints: 5,000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Sensors:
- GPS: Yes
- Galileo: Yes
- Has Built-In Receiver: Yes
- Receiver: 5 Hz
- Supports WAAS: Yes
Built-In Maps:
- Built-In Auto Guidance+: Yes (downloadable via ActiveCaptain app)
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Garmin Navionics+ (Coastal): Yes
- Garmin Navionics+ (Inland): Yes
- Tide Tables: Yes
Optional Map Support:
- BlueChart g3: Yes
- BlueChart g3 Vision: Yes
- LakeVü g3: Yes
- LakeVü g3 Ultra: Yes
- Garmin Navionics+: Yes
- Garmin Navionics Vision+: Yes
- TOPO U.S. 100K: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes
Chartplotter Features:
- ActiveCaptain® Compatible: Yes
Electrical Features:
- Power Input: 9 to 18 VDC
- Typical Current Draw at 12 VDC: 1.0 A
- Maximum Current Draw at 12 VDC: 1.5 A
- Maximum Power Usage at 10 VDC: 18 W
Sonar Features:
- Displays Sonar: Yes
- Power Output: 500 W
- Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in 260/455/800/1000/1200 kHz
Connections:
- 4-Pin Transducer Ports: 1
- Garmin Wi-Fi Network (Local Connection): Yes
1Transducer required
2Requires the ActiveCaptain app on a compatible smartphone paired to the ECHOMAP UHD2 5” and 7” chartplotters
SKU: NVN-104625
MPN: 010-02593-00
UPC: 753759284640
