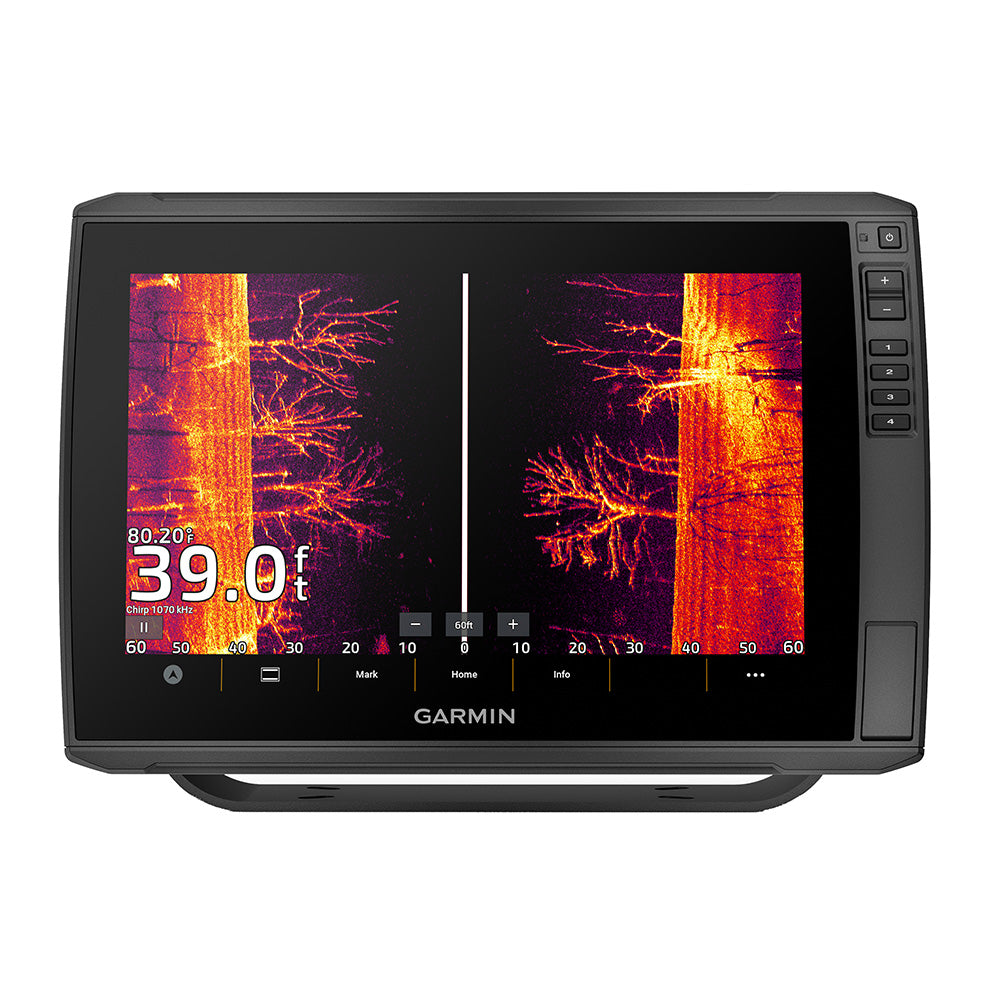

Garmin ECHOMAP™ Ultra 2 126sv w/o Transducer - Garmin Navionics+

Imagine gliding across the water with crystal-clear views of the underwater world right at your fingertips. The Garmin ECHOMAP Ultra 2 126sv delivers that edge for serious anglers and boaters, blending a massive 12-inch touchscreen with powerhouse sonar imaging and preloaded Garmin Navionics+ charts. Without the transducer included, you have the freedom to pair it with your preferred setup, whether it's a LiveScope system for real-time fish tracking or Ultra High-Definition scanning for pinpoint structure detection. This isn't just a screen—it's your command center for chasing trophies and navigating tricky waters with confidence.

Standout Features That Elevate Your Time on the Water

• Sunlight-Readable 12-Inch Touchscreen: WXGA IPS display with 1280 x 800 resolution shines bright even under harsh sun, making split-second decisions easier during peak bite times.
• Advanced Sonar Ready: Built-in support for LiveScope, Panoptix, ClearVü, and SideVü scanning sonars paints vivid, photo-like images of fish, bait schools, and bottom contours—perfect for dialing in on structure without guesswork.
• Wireless Sharing Magic: Network multiple units on your boat to share user data, waypoints, routes, and even sonar feeds in real-time, turning your crew into a synchronized fishing machine.
• Screen Recording for Bragging Rights: Capture those epic moments—like a monster bass crashing your lure—and relive or share them instantly via the ActiveCaptain app.
• Multi-Band GPS Precision: Locks onto GPS, GLONASS, Galileo, and BeiDou for spot-on positioning, even in challenging environments like crowded marinas or open ocean.

Master the Depths with Superior Sonar Imaging

Fishing smarter starts with seeing clearer. This chartplotter's built-in UHD sonar capabilities deliver exceptional clarity across a range of frequencies, from traditional CHIRP (70/83/200 kHz) to high-frequency scanning (260/455/800/1000/1200 kHz). Pair it with a compatible transducer like the GT56 for side-to-side coverage that reveals hidden honey holes. The vivid color palettes cut through clutter, helping you separate fish from weeds or rocks effortlessly. For live-action thrills, LiveScope integration shows fish reacting to your bait in real time—no more wondering if that mark is a dink or a double-digit bass.

Pro Tip for Sonar Success

Adjust your color gain and range settings based on water clarity—lower frequencies punch deeper in murkier lakes, while high kHz scanning excels in shallows for vegetation mapping. Anglers report doubling their hookups by zooming into suspended schools during summer thermoclines.

Navigate Like a Pro with Garmin Navionics+ and Beyond

Hit the water armed with detailed inland and coastal charts, including Auto Guidance+ for safe routing around shallows and hazards. Depth shading and daily updates keep your data fresh, while optional upgrades like Navionics Vision+ add satellite overlays and high-res relief shading for a 3D-like view of drop-offs. Garmin Quickdraw Contours lets you create personalized HD maps on the fly, saving hot spots for future trips. Whether you're tournament trailblazing or family cruising, these tools minimize downtime and maximize fishing time.

Seamless Connectivity for a Smarter Boat

Stay plugged into your ecosystem with NMEA 2000 compatibility for autopilots, heading sensors, and Fusion audio. Wirelessly link to Force trolling motors for hands-free waypoint navigation and route following. The ActiveCaptain app syncs everything from software updates to community-contributed contours, plus easy screen mirroring to your phone. ANT+ and Wi-Fi open doors to fitness trackers or local networking, making your setup future-proof and interconnected.

Quick-Release Mounting for Versatility

The bail mount with quick-disconnect cradle means you can swap units between boats or store it securely dockside. Flush mounting options keep cockpits sleek for competitive setups.

Everything You Need to Get Started

• ECHOMAP Ultra 126sv unit with Garmin Navionics+
• Power/data cable for reliable juice
• Bail mount and quick-release cradle
• Protective sun cover to shield from elements
• 8-pin to 12-pin transducer adapter
• Mounting hardware and docs

Built Tough for Real-World Demands

IPX7 waterproofing laughs off splashes and spray. Dimensions of 13.4" x 9.0" x 3.9" fit most consoles without dominating space, weighing in at a manageable 5.5 lbs. Power-hungry? It sips just 2.5A typical at 12VDC, with dual microSD slots for endless storage of 5,000 waypoints, 50 routes, and 50,000 track points.

Frequently Asked Questions

Does the ECHOMAP Ultra 2 126sv come with a transducer?

No, this model ships without a transducer, giving you flexibility to choose LiveScope, GT56, or other compatible options based on your boat and fishing style.

Can I network multiple ECHOMAP Ultra 2 units together?

Yes, wireless networking lets you share sonar views, waypoints, and routes between compatible units, ideal for multi-station boats or team fishing.

What mapping is preloaded on this chartplotter?

It includes Garmin Navionics+ with inland/coastal charts, Auto Guidance+, depth shading, and a subscription for updates, plus support for Vision+ upgrades.

Is the display visible in direct sunlight?

Absolutely—the 12-inch WXGA IPS touchscreen is optimized for sunlight readability, ensuring clear visuals even on the brightest days.

Does it support LiveScope sonar systems?

Yes, full compatibility with the LiveScope lineup provides real-time forward, perspective, or downward scanning for dynamic fish tracking.

How does multi-band GPS improve my experience?

It combines GPS, GLONASS, Galileo, and BeiDou for superior accuracy and faster fixes, crucial for precise anchoring or following contours in rough conditions.

Can I connect it to a trolling motor?

Yes, wireless integration with Force trolling motors allows spot-lock, route navigation, and waypoint following without extra wiring hassles.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

ECHOMAP™ Ultra 2 126sv without Transducer - Garmin Navionics+

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping.

Features:

• ECHOMAP™ Ultra 2 126sv with Garmin Navionics+™
• 12” touchscreen
• Supports livescope™ sonar, and more
• Wirelessly network; share sonar, waypoints, and routes.
• Capture screen recordings to share fish catches
• Multi-band GPS for improved position accuracy

Livescope™ Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Preloaded Charts

Experience unparalleled coverage and detail with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ActiveCaptain® App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

Force® Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 126sv with optional Garmin Navionics+
• Power/data cable
• Bail mount with quick-release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

Specifications

General:

• Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
• Weight: 5.5 lbs (2.5 kg)
• Waterproof: IPX7
• Touchscreen: Yes
• Display Type: WXGA, IPS
• Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist

Maps & Memory:

• Accepts Data Cards: 2 microSD cards
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• Has Built-In Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+™: Yes
• Garmin Navionics+ Vision+™: Yes
• TOPO 100k: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• ActiveCaptain® Compatible: Yes
• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC
• Typical Current Draw at 12 VDC: 2.5 A
• Maximum Current Draw at 12 VDC: 5.0 A
• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes
• Power Output: 600 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

Connections:

• NMEA 2000® Ports: 1
• Garmin Marine Network Ports: 2 (Large Connector)
• 12-Pin Transducer Ports: 12-Pin Scanning Sonar
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

SKU: NVN-101732
MPN: 010-02882-00
UPC: 753759325565
