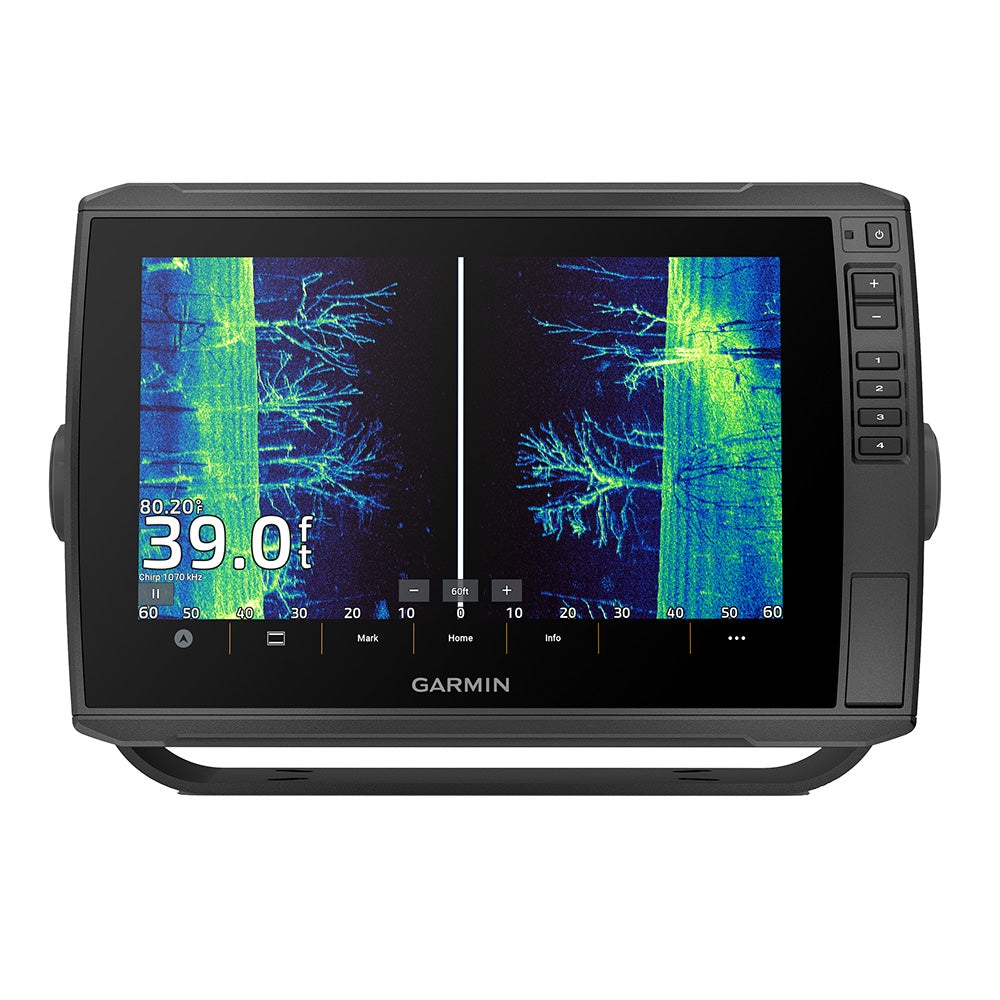

Garmin ECHOMAP™ Ultra 2 106sv w/o Transducer - Garmin Navionics+

Discover Unmatched Clarity on the Water with Advanced Chartplotting

Imagine gliding across the lake or navigating coastal waters with crystal-clear visuals of the underwater world right at your fingertips. This powerhouse chartplotter delivers a massive 10-inch touchscreen that's readable even under the brightest sun, transforming how serious anglers hunt for trophy catches. Built for those who demand precision, it integrates high-definition scanning sonar capabilities and preloaded Garmin Navionics+ mapping to reveal hidden structures and fish-holding spots effortlessly.

Superior Sonar Imaging That Reveals Every Detail

Without a transducer included, you're free to pair it with your preferred setup, whether it's the game-changing LiveScope for real-time forward, down, or perspective scanning sonar. The built-in UHD sonar support brings photo-like images of the bottom, with ClearVü and SideVü scanning sonars operating across multiple frequencies like 260/455/800/1000/1200 kHz. These deliver razor-sharp separation of fish from structure, even in tough conditions like heavy vegetation or thermoclines.

Vivid color palettes cut through the noise, making it simple to spot baitfish schools amid rock piles or submerged timber. Anglers report spotting fish they never knew were there, turning slow days into limits. Traditional CHIRP sonar covers low, medium, and high ranges (70/83/200 kHz), ensuring versatility from shallow flats to deep offshore haunts.

Preloaded Mapping and Seamless Navigation

Hit the water ready to go with Garmin Navionics+ inland and coastal charts, complete with Auto Guidance+ that suggests safe paths around obstacles. Depth shading highlights contours, helping you target specific depth zones where fish congregate. Multi-band GPS, GLONASS, Galileo, and BeiDou deliver pinpoint accuracy—crucial when positioning over a hotspot or anchoring in current.

Upgrade paths keep your maps fresh with optional premium layers like high-res relief shading. Quickdraw Contours lets you map your own waters in real-time, crowdsourcing data via the ActiveCaptain community for insider edges on local spots.

Wireless Connectivity Keeps Your Crew in Sync

Network multiple units wirelessly to share sonar feeds, waypoints, and routes across the boat—no tangled cables needed. Pair with NMEA 2000 devices for engine data, autopilot control, or Fusion audio integration. ANT+ and Wi-Fi open doors to trolling motors like Force for hands-free waypoint navigation, letting you focus on the rod tip.

Built Tough for Real-World Fishing

IPX7 waterproofing shrugs off spray and splashes, while the quick-release bail mount (flush option too) makes it easy to stow securely. The WXGA IPS display (1280x800 resolution) stays responsive with keyed assist, even with wet hands or gloves. Power it from 9-18 VDC sources, drawing efficiently at 2.5A typical—perfect for battery-powered setups.

Screen recordings capture those epic moments, like a musky slamming a lure, to relive and share. ActiveCaptain app integration handles updates, community data, and more from your phone, keeping everything current without fuss.

What's Included for Quick Setup

• The core ECHOMAP Ultra 106sv unit with Garmin Navionics+.
• Power/data cable for straightforward wiring.
• Bail mount with quick-release cradle for easy install/remove.
• Protective sun cover to shield the screen.
• 8-pin to 12-pin transducer adapter for compatibility.
• Mounting hardware and full documentation.

Key Specs at a Glance

• Dimensions: 11.6" x 7.7" x 3.9" – Compact yet commanding presence.
• Weight: 4.0 lbs – Sturdy without being cumbersome.
• Memory: 5,000 waypoints, 50,000 track points, 100 routes – Ample for season-long adventures.
• Connections: 1 NMEA 2000 port, 2 Garmin Marine Network ports, 12-pin scanning sonar port.
• Sonar Power: 600W with Panoptix support.

Pro Tips for Maximizing Your Chartplotter

Fishermen swear by customizing sonar frequencies for your water—switch to higher kHz in shallows for finer detail. Use wireless sharing during tournaments to scout ahead while a buddy marks keepers. The multi-constellation GPS shines in canyons or under bridges, reducing drift and improving jigging precision.

For coastal runs, leverage tide tables and sailing features to time your drifts perfectly. Always calibrate Quickdraw after new installs to build hyper-local maps that outperform stock charts.

ECHOMAP™ Ultra 2 106sv without Transducer - Garmin Navionics+

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping.

Features:

• ECHOMAP™ Ultra 2 106sv with Garmin Navionics+ Inland & Coastal Mapping
• 10” touchscreen
• Supports livescope™ sonar, and more
• Wirelessly network; share sonar, waypoints, and routes.
• Capture screen recordings to share fish catches
• Multi-band GPS for improved position accuracy

Livescope™ Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Preloaded Charts

Experience unparalleled coverage and detail. with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ActiveCaptain® App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

Force® Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 106sv with optional Garmin Navionics+
• Power/data cable
• Bail mount with quick-release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

Specifications

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
• Weight: 4.0 lbs (1.8 kg)
• Waterproof: IPX7
• Touchscreen: Yes
• Display Type: WXGA, IPS
• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist

Maps & Memory:

• Accepts Data Cards: 2 microSD cards
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• Has Built-In Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+™: Yes
• Garmin Navionics+ Vision+™: Yes
• TOPO 100k: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• ActiveCaptain® Compatible: Yes
• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC
• Typical Current Draw at 12 VDC: 2.5 A
• Maximum Current Draw at 12 VDC: 5.0 A
• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes
• Power Output: 600 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

Connections:

• NMEA 2000® Ports: 1
• Garmin Marine Network Ports: 2 (Large Connector)
• 12-Pin Transducer Ports: 12-Pin Scanning Sonar
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes
