Camera, Underwater, TIX402-UWC - HD

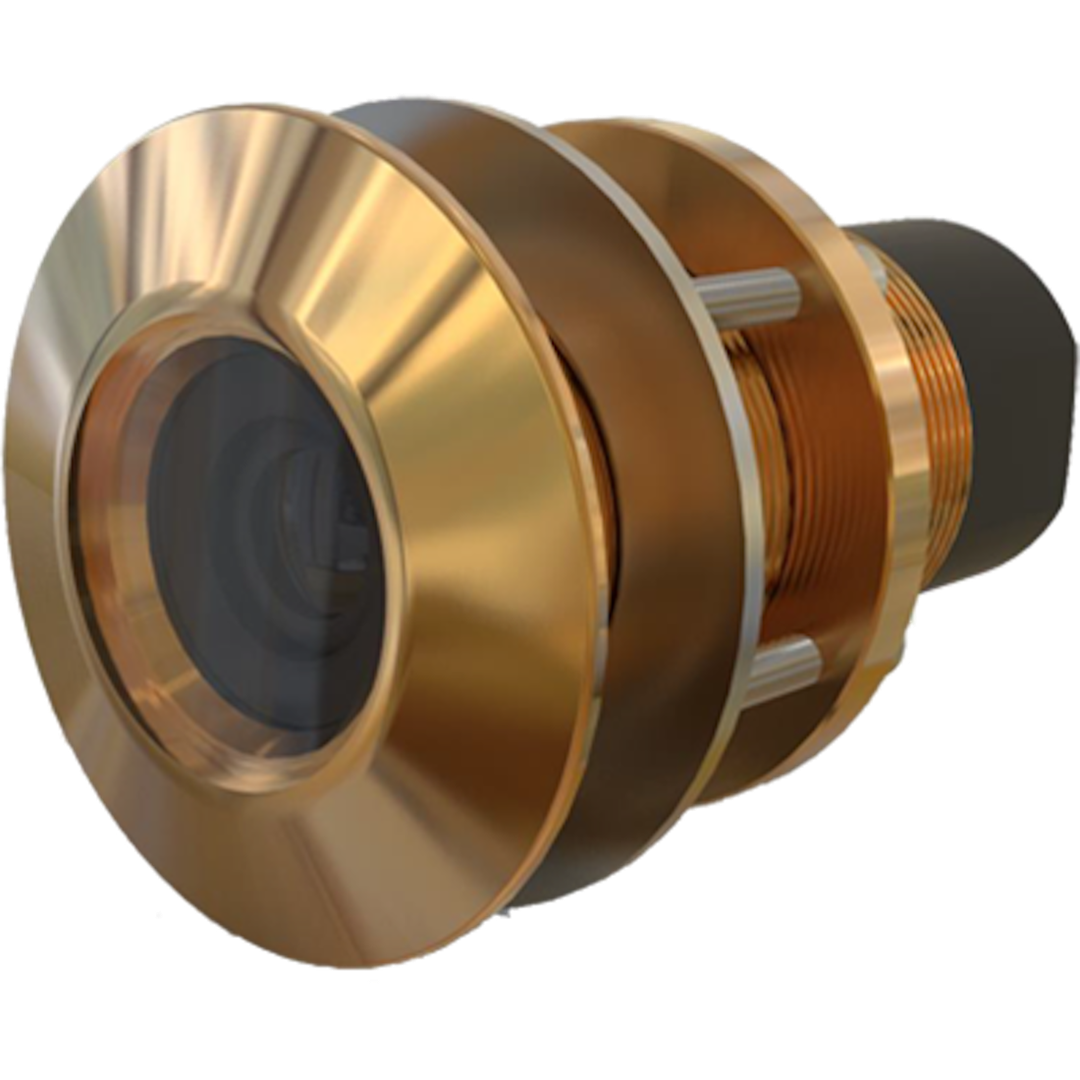

Lumishore TIX402 Lumi-Cam HD Camera The TIX402 LUMICAM is a High-Definition underwater camera with features not seen before. One video output provides HD-SDI video to a compatible MFD, Chart Plotter, or Monitor. The camera operates on a 12VDC input, is serviceable from the inside the hull, and comes in a 2.25" bronze thru-hull fitting. The Lumishore Thru-Hull camera is suitable for many sizes and types of watercraft, including Sports Boats, Cruisers, Yachts, and Super Yachts. With unmatched performance at an unbeatable price, no competitor comes close to Lumishore's TIX402 underwater camera.

Lumishore USA 600255 Attributes

• Control Type: None
• Dimensions: Face diameter: 3.5''; profile: 0.32''; shaft length: 5.35''; shaft diameter: 2.25''
• Interface: HD-SDI (1080p) or composite (NTSC/PAL)
• Modes: Daylight or external illumination
• Other Functions: Underwater camera, comes with 1 meter cable
• Pan/Tilt: No
• Waterproof: Yes (IP68)
• Zoom: No

Lumishore USA 600255 Features & Benefits

• Flush-fit, suitable for transom or bottom mounting
• Full high-definition 1080p
• 3.6mm fixed focus lens
• Profile: 8mm/0.32"; Diameter: 88mm/3.47"; 136mm/5.35"shaft
• Thru-hull mount, requires 57mm/2.25" entry hole
• Interchangeable element allows servicing from inside the vessel
• Automatic low-light mode; Marine-grade aluminum bronze housing
• Input voltage: 9-15 Volts DC
• Available HD-SDI or Composite (NTSC/PAL) to HDMI converter
• Limited 3 Year Warranty

TIX402-UWC - Underwater Interchangeable HD Camera, MFG# 60-0255, HD-SDI and composite video outputs, 3.5mm fixed lens, 12VDC only, 3.5" Diameter Face, 2.25" shaft, 5.7" Long.

"Let Lumishore show you a whole new world just below your waterline. Lumi-Cam brings all the amazing detail of magnificent sea life and beautiful underwater terrain to life in vivid high-definition color to your compatible MFD, plotter or monitor with one HD-SDI or Composite output. Ideal for prop inspection and tournament catch and release video. Its compact 'flush-fit' design enables Lumi-Cam to be mounted nearly anywhere on the hull. Add an underwater light and attract even more marine life around your boat."
SKU: NVN-2000369
MPN: 60-0255
UPC: 847772001541
