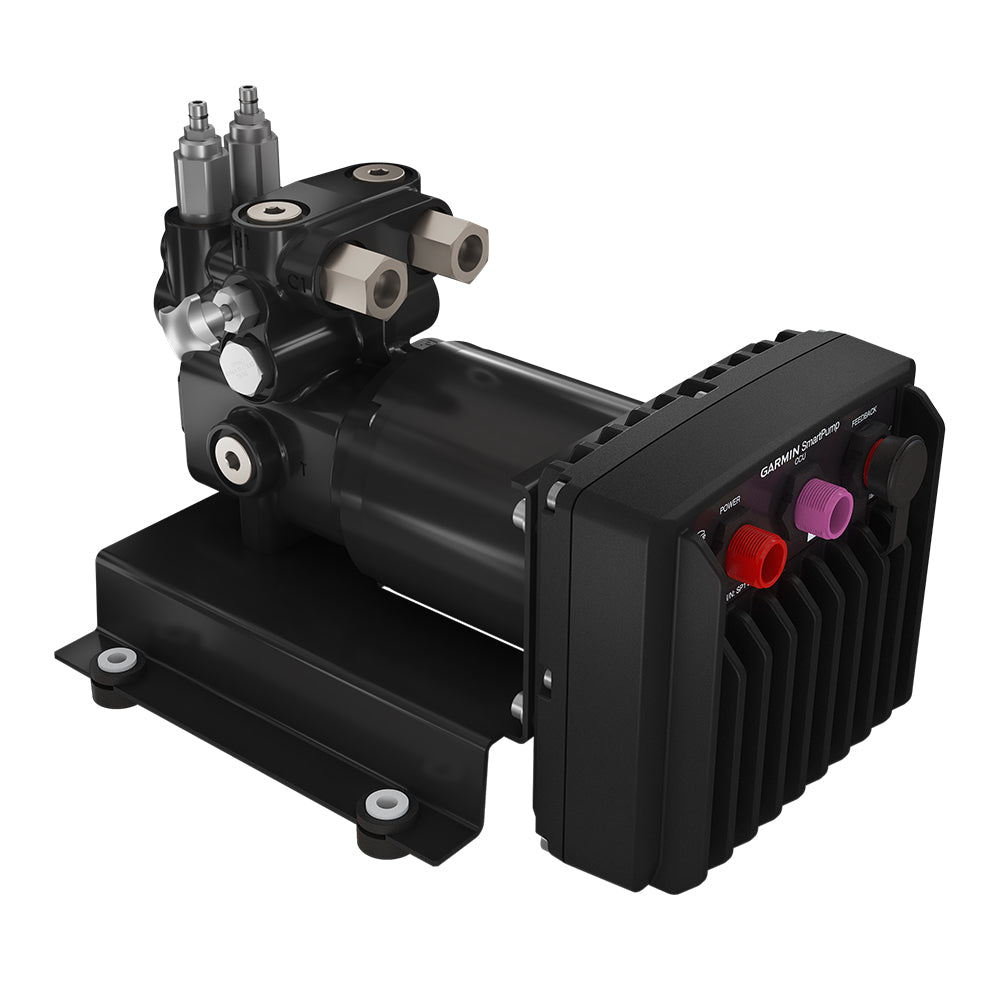

Garmin GHP SmartPump v2
Garmin GHP SmartPump v2 — Product description
Why the Garmin GHP SmartPump v2 Stands Out for Marine Steering
Boat owners often face the challenge of selecting the perfect hydraulic pump that matches their vessel's steering system without trial and error. The Garmin GHP SmartPump v2 eliminates that hassle by offering a versatile, one-size-fits-most solution designed for a wide range of hydraulically steered boats. Its intelligent, self-calibrating technology automatically adjusts flow rates to suit various cylinder sizes, ensuring smooth, responsive handling whether you're cruising coastal waters or navigating rough seas.
What sets this pump apart is its compact design paired with superior engineering. You'll enjoy enhanced thermal management to prevent overheating during extended use, boosted reliability for fewer breakdowns, and reduced power draw that extends battery life on long outings. Corrosion-resistant construction, including specialized coatings on aluminum and steel components, makes it a durable choice for harsh saltwater environments.
Key Features That Deliver Real-World Performance
- Universal Fit: Handles steering cylinders from 4 to 24 cubic inches, with lock-to-lock times up to 7 seconds for cylinders up to 17 cubic inches—ideal for everything from center consoles to larger cruisers.
- Smart Calibration: The built-in ECU fine-tunes performance on the fly, providing precise control without manual adjustments.
- Effortless Setup: Color-coded connectors simplify wiring and plumbing, cutting installation time even for DIY enthusiasts.
- Efficient Power Management: Draws minimal current in standby mode and peaks efficiently under load, optimizing your boat's electrical system.
- Rugged Build: Operates reliably from freezing cold to scorching heat, with fully sealed electronics and high-grade alloys standing up to constant exposure to moisture and salt.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm) |
| Weight | 16.5 lbs (7.5 kg) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C) |
| Materials | ECU: Fully gasketed aluminum alloy; Bracket: Carbon steel; Manifold & Motor: Aluminum alloy |
| Power Cable Length | 9 ft (2.7 m) |
| Power Input | 10-30 Vdc |
| Fuse Rating | 40 A blade-type |
| Power Usage | Standby: <1 A; Engaged: 5-10 A; Peak: 34 A |
| Flow Rate | Configurable 0-2.4 L/min |
Streamlined Installation for Quick Upgrades
Upgrading your boat's hydraulic steering has never been simpler. The SmartPump v2's reduced footprint compared to older models means it fits in tight engine compartments without modifications. Start by mounting the unit securely using the included bracket, connect the color-coded hydraulic lines and power cable, then pair it with your Garmin autopilot helm like the Reactor series. The system self-calibrates during initial setup, often completing the process in under an hour. Pro tip: Flush your existing hydraulic lines beforehand to avoid contaminants that could affect performance.
Seamless Compatibility Across Systems
This pump integrates flawlessly with Garmin's ecosystem, including G3X touch avionics, GHC autopilot controllers, and Reactor 40 corepacks. It's also backward-compatible with many legacy hydraulic setups from other brands, making it a smart retrofit choice. Verify your cylinder displacement matches the supported range for optimal lock-to-lock response times—most recreational boats fall right in the sweet spot.
Long-Term Maintenance and Reliability Tips
To maximize lifespan, periodically inspect hoses for wear and ensure the hydraulic fluid meets Garmin's specs (typically ATF or marine-grade equivalents). The pump's advanced cooling design reduces heat buildup, but in high-use scenarios like tournaments or charters, monitor temps via your Garmin display. Users report years of trouble-free operation with basic annual checks, proving its worth in demanding marine conditions.
Frequently Asked Questions
What boats is the Garmin GHP SmartPump v2 compatible with?
It's designed for most hydraulically steered boats with cylinder sizes from 4 to 24 cubic inches, supporting 7-second lock-to-lock times up to 17 cubic inches. Perfect for center consoles, sportfishers, and cruisers.
Does the SmartPump v2 require manual calibration?
No, its intelligent ECU auto-calibrates to your steering system for plug-and-play precision.
How does the v2 version improve on the original?
It offers a smaller size, lighter weight, better heat dissipation, higher reliability, lower power use, and easier color-coded installation.
What power setup do I need for installation?
It runs on 10-30 Vdc with a 40A fuse. Standby draw is under 1A, making it efficient for 12V or 24V boat systems.
Is it suitable for saltwater use?
Yes, corrosion-resistant materials like nickel-plated steel and dyed aluminum ensure longevity in marine environments.
Can I install it myself?
Absolutely—color-coded connectors and compact design make DIY installs straightforward. Pair with Garmin's setup guides for best results.
What's the flow rate range?
Configurable from 0 to 2.4 liters per minute, adapting automatically to your needs.
GHP SmartPump v2
Put an end to guessing which pump size will work with your particular boat. One SmartPump works for most boats and applications. You know you have the right pump for your boat for optimum control and confidence. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.
Garmin's SmartPump is engineered from corrosion-resistant components including black dye on aluminum parts and nickel-plating on all steel parts.
Specifications:
- Dimensions (H x W x D): 6.6 x 7.5 x 10.4 (167.6 x 190.5 x 264.16 mm)
- Weight: 16.5 lbs (7.5 kg)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
- Power cable length: 9 ft (2.7 m)
- Power input: 10-30 Vdc
- Fuse: 40 A, blade-type
- Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
- Flow rate: Configurable from 0 to 2.4 L per minute
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu. in.
Garmin SmartPump v2
Model: 010-00705-62Put an end to guessing which pump size will work with your particular boat. One SmartPump v2 works for most hydraulically steered boats and applications. For optimum control and confidence, you know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.
Their SmartPump v2 features reduced overall size and weight from the previous version while maintaining corrosion-resistant components, including black dye on aluminum parts and nickel-plating on all steel parts.
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
Specifications| Dimensions (H x W x D) | 6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm) |
| Weight | 16.5 lbs (7.5 kg) |
| Temperature range | From 5°F to 131°F (from -15°C to 55°C) |
| Material | Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy |
| Power cable length | 9 ft (2.7 m) |
| Power input | 10-30 Vdc |
| Fuse | 40 A, blade-type |
| Main power usage | standby - less than 1 A; engaged - 5-10 A; peak - 34 A |
| Flow rate | Configurable from 0 to 2.4 L per minute |
SKU: NVN-69289
MPN: 010-00705-62
UPC: 753759189402
