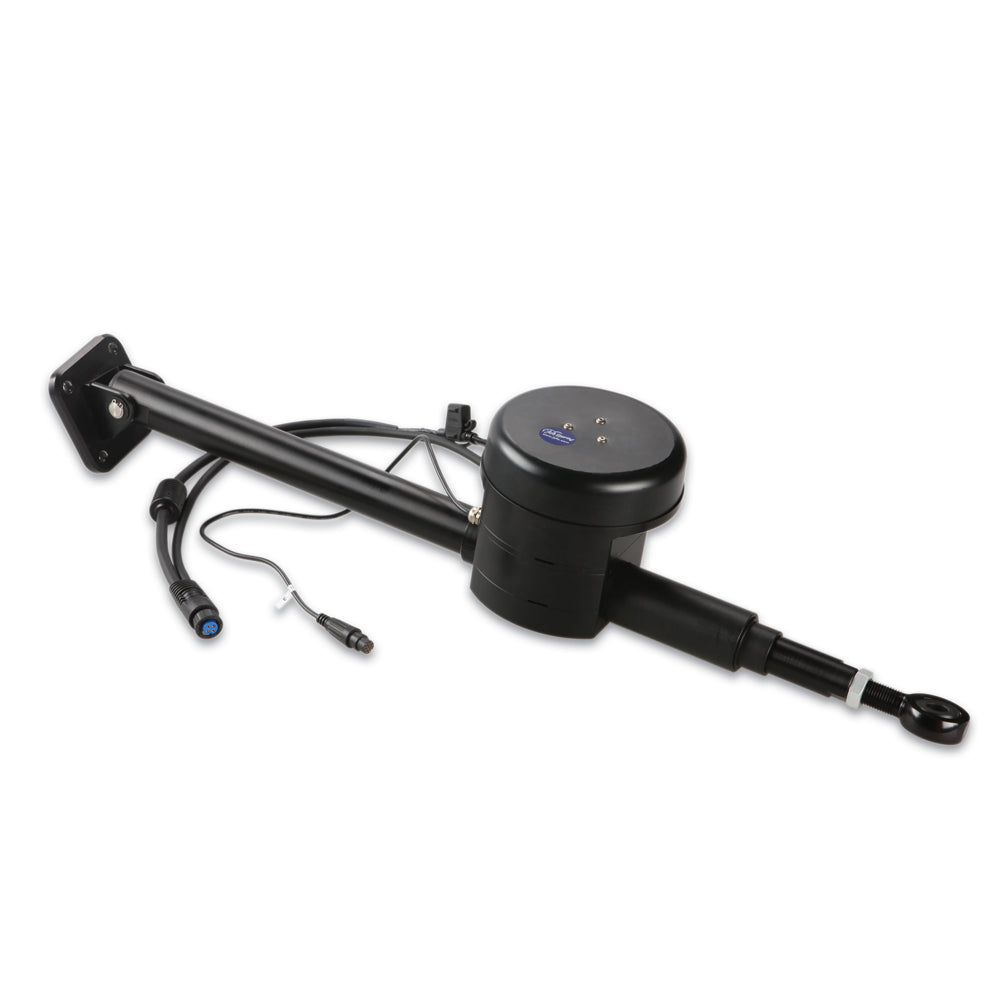

Garmin Class A Drive Unit Linear Sailboats To 28,500 Lbs.

Imagine gliding through choppy waters with effortless precision, your sailboat responding instantly to the autopilot's commands while you focus on the horizon. The Garmin Class A Drive Unit makes this a reality for owners of larger sailboats, delivering reliable hydraulic linear actuation that handles vessels up to 28,500 pounds of displacement. Engineered for seamless integration with Garmin's GHP autopilot systems, this drive unit transforms manual steering into automated efficiency, reducing fatigue on long passages and enhancing safety during night watches or single-handed sails.

Perfect Fit for Demanding Sailboats

Sailors with displacement hulls in the mid-to-large range know the challenges of maintaining course in varying winds and seas. This Class A unit steps in as the ideal mechanical drive companion, boasting a robust 12-inch stroke length that provides ample rudder travel for responsive handling. Its hydraulic design ensures smooth, powerful operation without the jerkiness sometimes found in lesser systems, making it a go-to for bluewater cruisers, racing fleets, and coastal adventurers alike.

Whether you're upgrading from a worn-out legacy drive or outfitting a new build, compatibility shines through with Garmin's GHP 12 Marine Autopilot Corepack. It mounts cleanly in tight lazarettes or steering quadrants, adapting to most setups on boats from 40 to 55 feet, depending on rig and keel configuration.

Unmatched Power and Reliability

At the heart of this drive unit is an impressive 800-pound maximum thrust rating, powerful enough to overcome heavy weather steering loads yet precise for finesse maneuvers. It thrives in extreme conditions, with an operating temperature range from 5°F to 140°F, shrugging off freezing spray in high latitudes or scorching decks in the tropics.

Power efficiency keeps things practical: drawing just 0.5 amps for the clutch and up to 2 amps for the motor at 12 volts, it sips battery life on extended voyages. Wide input voltage tolerance from 10 to 33 volts means it plays nice with 12V or 24V systems, minimizing voltage drop issues common on bigger boats.

Why Sailors Swear by It: Real-World Advantages

Beyond specs, this drive unit excels in the tangible ways that matter most. It minimizes helm feedback, letting your autopilot hold a tight course through tacks and jibes without constant adjustments. Owners report fewer mechanical failures compared to competitors, thanks to Garmin's marine-tough construction that resists corrosion from saltwater exposure.

For performance-oriented sailors, the linear actuation provides the torque needed for spade rudders or large skegs, while recreational users appreciate the quiet operation—no whining gears to disturb the peace. Pair it with NMEA 2000 networks for full integration with chartplotters and instruments, creating a cohesive cockpit ecosystem that anticipates your needs.

Streamlined Setup for Confident Installation

Getting this drive unit up and running doesn't require a marine electrician. Its compact dimensions—around 32 inches wide when centered—fit standard tiller or wheel installations. Key to success: ensure proper alignment with the rudder post for maximum stroke efficiency, and use high-quality hydraulic fluid to prevent air pockets.

Common tip from seasoned installers: mount it high enough to avoid sloshing bilge water, and integrate a bypass valve for manual override during maintenance or joy-stick steering. Calibration via the autopilot head unit is straightforward, often taking under an hour once plumbed and wired.

Built to Last with Everyday Durability

Garmin backs this powerhouse with thoughtful engineering for longevity. Sealed components fend off moisture, while the clutch mechanism protects against overloads. Regular checks on hydraulic seals and electrical connections keep it humming season after season, making it a smart investment for boats that see hard use.

In user forums and regatta reports, it's praised for holding up through transocean races and family cruises, proving its mettle where others falter.

Equip your sailboat with the control it deserves and sail smarter, not harder. This drive unit isn't just hardware—it's your reliable partner on every adventure.
