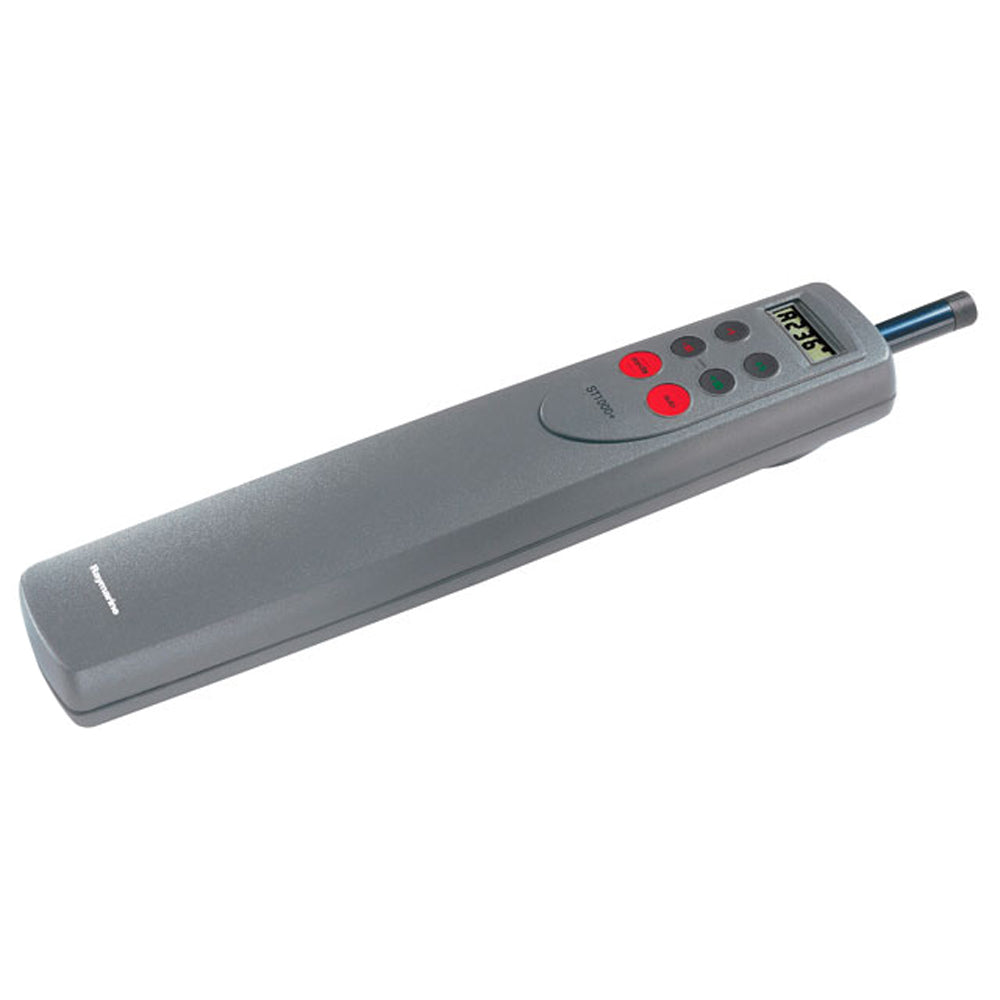

Raymarine ST1000 Plus Tiller Pilot A12004 - Advanced Sailing Autopilot for Mid-Size Vessels
Navigate coastal waters with confidence using the Raymarine ST1000 Plus Tiller Pilot - engineered for sailing vessels up to 6,600 lbs displacement with advanced autopilot technology. Building on 50+ years of marine electronics innovation, this self-contained system delivers professional-grade performance for recreational and competitive sailors.
Advanced Tiller Autopilot Technology
- Self-Contained System: Complete autopilot with integrated electric linear drive, precision fluxgate compass, and intuitive control panel
- Quick Deployment: Removable design with instant mounting and disconnect for effortless transitions between autopilot and manual steering
- Intelligent Sailing Modes: AutoTack handles tacking maneuvers while you manage sail trim, AutoSeastate maintains course while optimizing power consumption
- Professional Display: 2-inch backlit LCD with 6-button keypad shows heading, course, and navigation data
- SeaTalk Integration: Built-in networking connects seamlessly with Raymarine instruments, wind sensors, and chartplotters
- Dual Protocol Support: NMEA 0183 and SeaTalk compatibility for comprehensive system integration
Technical Specifications
| Maximum Displacement: | 6,600 lbs (3,000 kg) |
| Power Supply: | 10-15 VDC (12V nominal) |
| Display: | 2-inch Backlit LCD with 6-Button Keypad |
| Drive Unit Thrust: | 125 lbs (57 kg) |
| Helm Speed: | 8 seconds lock-to-lock |
| Power Consumption: | Standby: 40mA, Active: 0.5-1.5A |
| Operating Temperature: | 32°F to 158°F (0°C to 70°C) |
| Compass Type: | Integral Fluxgate with Auto Deviation Correction |
| Interface Protocols: | SeaTalk & NMEA 0183 |
| Warranty: | Limited 2-Year Manufacturer Warranty |
Complete Installation Package
Ready for immediate installation with comprehensive hardware kit:
- ST1000 Plus Tiller Pilot with waterproof housing
- Detailed instruction manual with professional setup guide
- 12V deck socket for secure power connection
- Tiller pin and mounting socket hardware (5-piece packages)
- SeaTalk networking cables for system integration
Professional Sailing Performance Features
The ST1000 Plus incorporates sophisticated sailing technologies including automatic trim adjustment, intelligent sea state compensation, and WindTrim control. The precision fluxgate compass features automatic deviation correction, northerly/southerly heading compensation, and user calibration capabilities for optimal performance in varying magnetic environments.
Intelligent Navigation Control
Advanced control algorithms provide efficient, intelligent steering while optimizing power conservation. The AutoSeastate feature automatically adjusts response based on sea conditions, while the automatic heading deadband ensures precise course holding without excessive rudder movement. Waypoint advance functionality enables seamless GPS-guided navigation.
Enhanced Sailing Convenience
Designed specifically for coastal cruising applications, the ST1000 Plus maintains accurate course control while maximizing battery efficiency. The system's AutoTack capability transforms single-handed sailing by executing precise tacks while allowing complete focus on sail handling and boat optimization.
Frequently Asked Questions
What is the difference between ST1000 Plus and ST2000 Plus?
The ST1000 Plus is designed for vessels up to 6,600 lbs displacement, while the ST2000 Plus handles boats up to 10,000 lbs. Both feature identical advanced autopilot functions, but the ST2000 Plus has a more powerful drive unit for larger vessels.
Can the ST1000 Plus work with GPS navigation systems?
Yes, the ST1000 Plus supports both SeaTalk and NMEA 0183 protocols, enabling integration with GPS chartplotters for waypoint navigation, cross-track error display, and bearing-to-waypoint information on the LCD display.
Is professional installation required for the ST1000 Plus?
No, the ST1000 Plus is designed for owner installation with comprehensive instructions included. The quick-connect mounting system allows easy installation and removal without permanent modifications to your boat.
What is the power consumption during typical sailing conditions?
Power consumption varies from 40mA in standby to 0.5-1.5A during active steering, depending on boat trim, helm load, and sailing conditions. The AutoSeastate feature optimizes power usage based on sea conditions.
Proven Marine Electronics Excellence
Continue the legacy of marine autopilot innovation with Raymarine's ST1000 Plus Tiller Pilot. Since the original Autohelm introduction in 1973, these systems have remained the world's most popular tiller pilots, combining time-tested reliability with modern electronic sophistication for today's coastal cruising sailors.
Invented by Autohelm in 1973, our tiller pilots have consistently been the world's most popular tiller pilots ever since, setting the standard for performance, reliability, and ease of use. The ST1000 and ST2000 tiller pilots are self-contained, removable autopilot systems for tiller-steered boats. Inside the durable housing is a powerful electric linear drive, precision fluxgate compass, and an easy-to-use control panel. A quick mounting and connect/disconnect system allows you to transition from hand-steering to autopilot control easily. Built-in SeaTalk networking allows the tiller pilot to communicate with the rest of your networked instruments, wind instrument, and chartplotter. Convenient AutoTack mode lets you handle the sheets while the pilot tacks the boat, and AutoSeastate intelligently keeps the boat on course while conserving power.
Raymarine A12004 Attributes
- Compatibility: Boats Up To 6600 Pound Maximum Displacement
Raymarine A12004 Features & Benefits
- Self-Contained, Removable Autopilot Systems For Tiller-Steered Boats
- Inside The Durable Housing Is A Powerful Electric Linear Drive, Precision Fluxgate Compass, And An Easy-To-Use Control Panel
- Quick Mounting And Connect Or Disconnect System Allows You To Transition From Hand-Steering To Autopilot Control Easily
- Built-In SeaTalk Networking Allows The Tiller Pilot To Communicate With The Rest Of Your Networked Instruments, Wind Instrument, And Chartplotter
- Whether Used As A Stand-Alone Autopilot Or With SeaTalk Or NMEA GPS, The Clear Backlit LCD And 6-Button Keypad Make These Pilots Safe And Easy To Use
- Limited 2 Year Warranty
Raymarine A12004 Warranties
ST1000 Plus Tiller Pilot
ST1000 Plus tiller autopilot for tiller steered sailing vessels up to 6,600 lbs (3,000 kg)
*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.
Includes:
- Instruction Manual
- Plus Tiller Pilot 12V Socket
- Tiller Pin (sold in packages of 5)
- Mounting Socket (sold in packages of 5)
St1000 + Tillerpilot is suitable for sailing boats up to 3.3 tons, and can easily spend a day on the water. Precise steering St1000 has a powerful and efficient drive device that can handle sub-er...
SKU: NVN-13501
MPN: A12004
UPC: 023193100098
