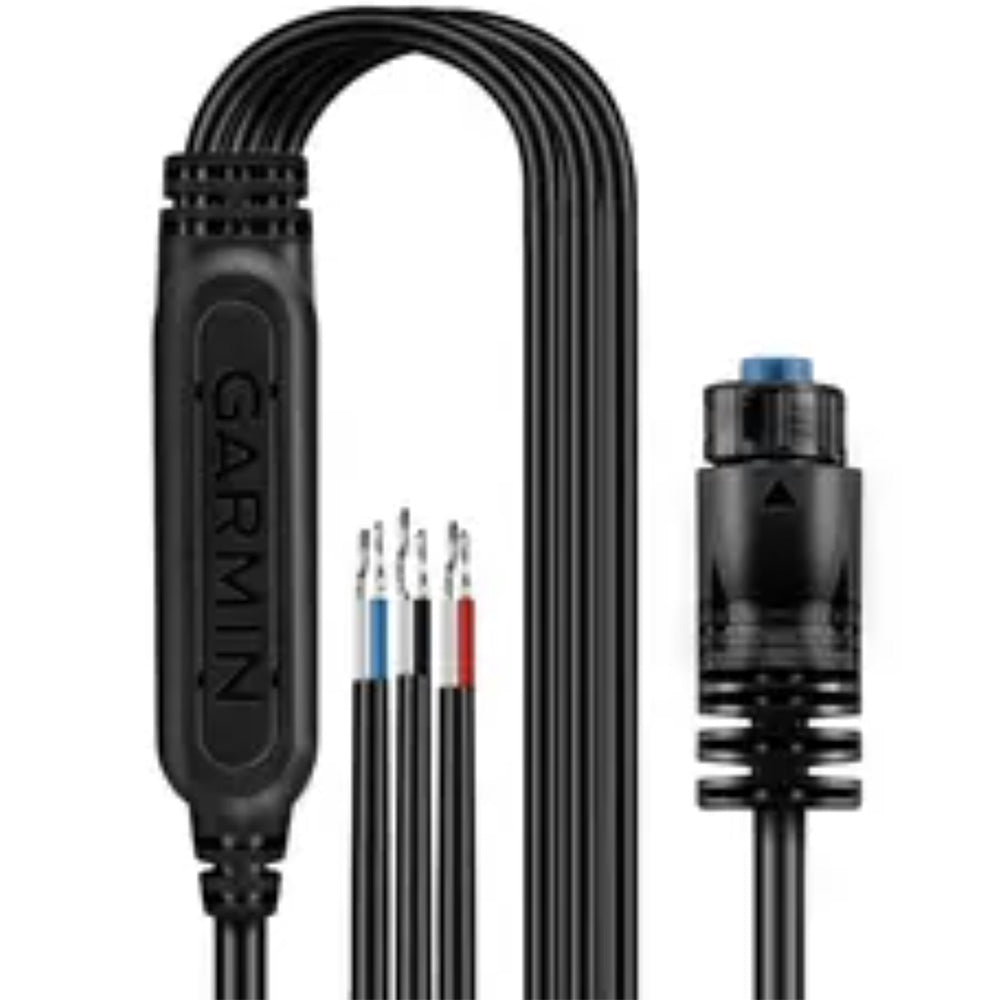

Garmin Solenoid Power Cable
Garmin Solenoid Power Cable — Product description
Boat owners relying on precise autopilot performance know that hydraulic steering systems can introduce unexpected challenges, especially when solenoids are involved. The Garmin Solenoid Power Cable steps in as a crucial safeguard, designed specifically to shield your Electronic Control Unit (ECU) from voltage spikes that solenoids generate during operation. This isn't just another accessory—it's engineered reliability for your GHP Reactor setup, ensuring smooth sailing without electrical interruptions.
Built-in Protection for Uninterrupted Performance
Hydraulic solenoid coils produce inductive kickback—those hazardous voltage surges that can damage sensitive electronics. This power cable counters them head-on with integrated protection diodes and self-healing fuses. Here's what sets it apart:
- Protection Diodes: Instantly clamp down on reverse voltage spikes, routing excess energy safely away from your ECU.
- Self-Healing Fuses: Automatically recover from overloads without needing replacement, minimizing downtime on the water.
- Marine-Tough Construction: Withstands harsh saltwater environments, vibration, and constant exposure, built to last through seasons of heavy use.
By integrating these features directly into the cable, installation remains straightforward—no extra components or modifications required.
How It Shields Your Autopilot System
Imagine your autopilot engaging the hydraulic pump: the solenoid coil energizes, creating a magnetic field. When it de-energizes, that field collapses rapidly, inducing high-voltage transients—up to hundreds of volts. Without protection, these can fry ECU circuits, leading to erratic steering or total failure.
This cable acts as the first line of defense in a solenoid configuration. Connected between your power source and the ECU, it filters out dangers while delivering clean, stable power. Paired with the GHP Reactor Mechanical, Solenoid, or Retrofit corepack, it ensures your system responds accurately to helm inputs, wind shifts, and waves.
Perfect Fit for GHP Reactor Systems
Tailored for Garmin's GHP Reactor series, this cable enhances setups using hydraulic pumps with solenoid controls. It's essential for mechanical drive units or retrofits where solenoid operation is key. Benefits extend beyond protection:
- Prevents costly ECU repairs from voltage damage.
- Maintains autopilot precision for longer passages.
- Simplifies wiring for cleaner, more reliable installations.
- Supports reactive corepack technology for adaptive steering.
- Ideal for fishing boats, cruisers, and offshore vessels.
Whether upgrading an older hydraulic system or building new, this cable integrates seamlessly, bolstering your vessel's automation.
Effortless Integration Tips
Most users report plug-and-play simplicity:
- Disconnect power to avoid shocks.
- Route the cable from your power source through the solenoid setup to the ECU.
- Secure connections with marine-grade terminals.
- Test the system in calm waters before heading out.
Pro tip: Bundle it with existing wiring looms to reduce clutter and improve airflow around electronics.
Frequently Asked Questions
What does the Garmin Solenoid Power Cable protect against?
It safeguards the ECU from high-voltage transients and inductive kickback produced by hydraulic solenoid coils during operation.
Is this cable necessary for all GHP Reactor corepacks?
It's specifically required for Mechanical, Solenoid, and Retrofit corepacks using solenoid configurations to ensure ECU safety.
How do self-healing fuses work in this cable?
These fuses temporarily interrupt current during surges and automatically restore conductivity once conditions normalize, eliminating manual resets.
Can I use this with non-Garmin hydraulic systems?
It's optimized for GHP Reactor systems, but the protection features benefit any compatible 12V solenoid-driven hydraulic autopilot setup.
What makes this cable marine-grade?
Constructed with corrosion-resistant materials, UV protection, and robust insulation to handle saltwater spray, humidity, and mechanical stress.
Does installing this cable affect autopilot performance?
No, it enhances reliability by providing clean power, allowing the autopilot to maintain precise heading hold and course adjustments.
How long is the Garmin Solenoid Power Cable?
It's pre-sized for standard GHP Reactor installations, offering ample length for routing without excess slack.
Solenoid Power Cable
This power cable integrates protection diodes and self-healing fuses to protect your ECU from hazardous voltages generated by hydraulic solenoid coils when used in a solenoid configuration.
For use with the GHP Reactor Mechanical/Solenoid/Retrofit corepack.
SKU: NVN-108309
MPN: 010-11533-11
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin Solenoid Power Cable |
| SKU / MFR# | 108309 |
