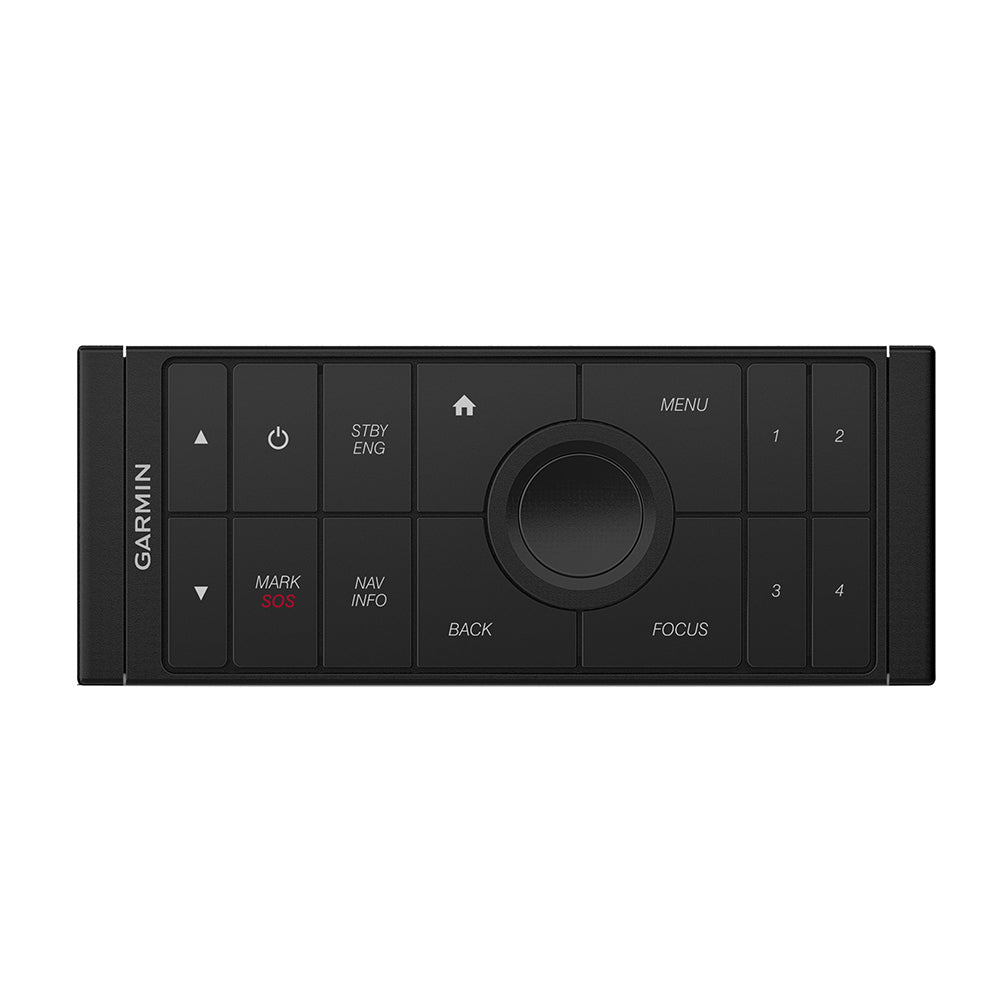

Garmin GRID™ 20 - Horizontal
Garmin GRID™ 20 - Horizontal — Product description
Master Your Vessel from Anywhere Onboard
Imagine cruising through choppy waters or enjoying a sunset voyage without being glued to the helm station. The Garmin GRID 20 horizontal remote changes that reality, giving skippers and crew seamless command over their Garmin marine setup. Whether you're tweaking radar settings, switching between chartplotter screens, or engaging the autopilot, this compact controller keeps everything at your fingertips—or armrest. Designed for real-world boating demands, it thrives in harsh marine environments, ensuring reliable performance when you need it most.
Boat owners rave about how it frees them up to focus on navigation and safety rather than fumbling with screens. Mount it horizontally on your console, integrate it into the captain's chair, or go wireless for ultimate flexibility. No more straining to reach controls during critical moments.
Precision Control with Intuitive Design
At the heart of the GRID 20 lies a versatile 360-degree joystick that doubles as a rotary knob and push-to-select button. This all-in-one input makes scrolling through menus, zooming charts, and fine-tuning waypoints feel effortless—even with gloves on or in heavy spray. Pair it with dedicated hard keys for rapid actions:
- Left and right screen switching for multi-display helms
- Autopilot standby and engage for quick maneuvers
- SOS key for emergency access
- Four customizable favorite keys to snap back to your go-to setups, like fishing modes or night navigation profiles
Built tough with fully gasketed, high-impact plastic, it shrugs off saltwater, UV exposure, and impacts. The IPX7 waterproof rating means submersion up to 1 meter for 30 minutes won't faze it, perfect for open cockpits or rainy passages.
Seamless Integration into Your Garmin Ecosystem
This remote syncs effortlessly with key Garmin marine gear, including GHC 50 autopilot instruments, GMR Fantom 18x/24x dome radars, and GPSMAP chartplotters. It's like extending your helm's brain to wherever you roam onboard. Choose wired NMEA 2000 connectivity for rock-solid reliability or wireless for clutter-free installs. Horizontal orientation suits sleek dash panels, while the slim profile (just 5.6 x 2.2 x 2.7 inches) slips neatly between screens or into furniture.
Pro tip for custom builds: Pair multiple GRID units across stations for shared control, ideal for larger yachts or multi-station setups. Compass-safe up to 114 mm, it won't interfere with your heading sensors.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 5.6 x 2.2 x 2.7 inches (14.1 x 5.6 x 6.8 cm) |
| Weight | 179 g |
| Operating Temperature | -15°C to 70°C (-5°F to 158°F) |
| Water Rating | IPX7 |
| Power Input (Wired) | 9-32 VDC; Typical 40 mA at 12 VDC |
| Compass-Safe Distance | 114 mm (4.5 inches) |
What's Included for Quick Setup
- GRID 20 horizontal remote
- Mounting hardware for secure installs
- Power cable for wired operation
- Documentation to guide your setup
Plug-and-play simplicity means you're operational in minutes, backed by Garmin's reputation for rugged reliability.
Frequently Asked Questions
Can the Garmin GRID 20 horizontal remote control multiple chartplotters?
Yes, it provides unified control across compatible Garmin chartplotters, radars, and autopilots in your marine network, making multi-screen helms a breeze.
Is the GRID 20 suitable for rough sea conditions?
Absolutely. Its IPX7 rating and tactile joystick ensure precise operation even in heavy weather, spray, or swells.
Does it support wireless connectivity?
Yes, alongside wired NMEA 2000 options, wireless setup keeps your helm clean and flexible.
How do the favorite keys work on the GRID 20?
Assign up to four profiles to instantly recall saved configurations, like radar overlays or autopilot settings, for one-touch efficiency.
What's the mounting flexibility for this horizontal model?
Its compact size allows surface mounting on dashes, integration into chair arms, or flush installs—perfect for crowded helms.
Is it safe to use near compasses?
Yes, with a 114 mm compass-safe distance, it won't disrupt magnetic readings.
What power sources does it require?
Wired power from 9-32 VDC via the included cable, or NMEA 2000 drop power for networked setups.
The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu and setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there’s also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain’s chair.
Garmin 100201101 Attributes
- Compatibility: GHC™ 50 Marine Autopilot Instrument,GMR Fantom™18x/24x Dome Radar,GPSMAP Series Chart Plotter
- Function: To Fine Control Chartplotter Menu/Setting Navigation
- Material: Plastic
- Dimensions: 5.6 Inch Length X 2.2 Inch Width X 2.7 Inch Height
- Waterproof Rating: IPX7 Rating Waterproof
- Includes: With Mounting Hardware/ Power Cable
Garmin 100201101 Features & Benefits
- Provides Intuitive, Easy-To-Use Remote Access And Control Of Your Entire Garmin Marine System
- 360-Degree, All-In-One Joystick With A Rotary Knob And Push-To-Select Button
- Enables Easy Chartplotter Menu And Setting Navigation And Fine Control, Even In The Worst Conditions
- 4 Favorite Keys Can Be Designated To Restore Your System To A Previously Saved Configuration
- Allows Wired Or Wireless Installation Options
- Limited 3 Year Warranty
GRID™ 20 - Horizontal
Sit Back and Take Control
- Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
- 360-degree, all-in-one joystick with a rotary knob and push-to-select button
- Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
- 4 favorite keys can be designated to restore your system to a previously saved configuration
- Allows wired (NMEA 2000) or wireless installation options
You don’t have to stand for hours at the helm. The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there’s also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain’s chair.
In The Box:
- GRID 20
- Mounting hardware
- Power cable
- Documentation
GARMIN GRID 20 Level Controller-GARMIN GRID 20 Level Controller The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your equipment.
SKU: NVN-74759
MPN: 010-02011-01
UPC: 753759204952
Technical specifications
| Brand | Garmin |
| Model | Garmin GRID™ 20 - Horizontal |
| SKU / MFR# | 74759 |
