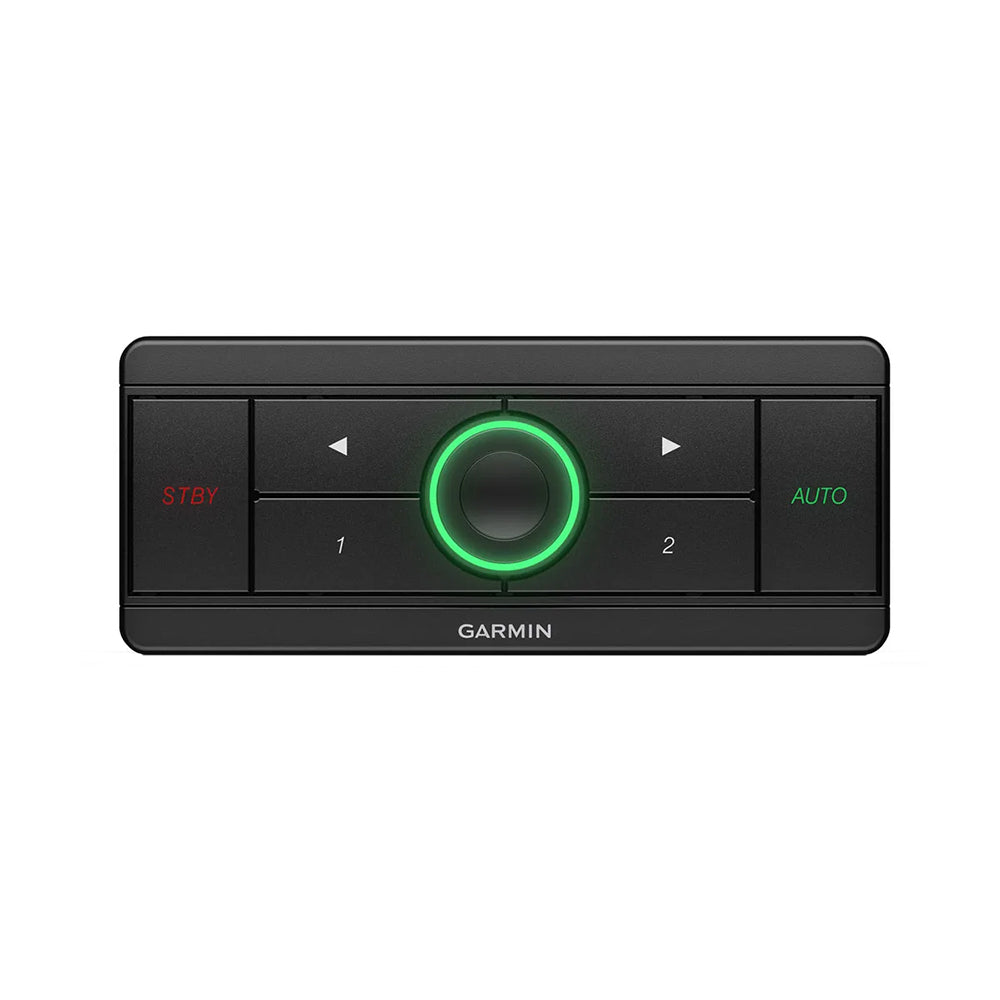

Garmin APK™ 10 Autopilot Keyboard - Horizontal
Garmin APK™ 10 Autopilot Keyboard - Horizontal — Product description
Enhance Your Helm with Effortless Autopilot Precision
Imagine navigating open waters with confidence, where every heading adjustment feels instinctive and responsive. The Garmin APK 10 Autopilot Keypad in horizontal orientation delivers exactly that for your Reactor 40 autopilot system. Boaters who demand reliable, hands-on control appreciate how this compact accessory transforms complex maneuvers into simple twists and taps, keeping your focus on the horizon rather than fumbling with screens.
Intuitive Controls Tailored for Real-World Boating
At the heart of the APK 10 is a robust rotary knob ringed by vivid LEDs that glow to indicate autopilot status—green for engaged, amber for standby, and more. Twist it for pinpoint heading changes, whether dodging waves or holding a steady course. Dedicated buttons for engage and disengage eliminate guesswork, letting you activate or halt autopilot in seconds during busy conditions.
- Multipurpose Flexibility: Customize the extra buttons to match your boat's needs—sync with thrusters, adjust sensitivity, or integrate shadow drive for intuitive steering overrides.
- Marine-Tough Build: Crafted from high-impact, fully gasketed plastic with an IPX7 water rating, it shrugs off spray, splashes, and downpours while operating from -15°C to 70°C.
Seamless Fit for Modern Helms
This low-profile keypad aligns perfectly with the sleek lines of your GHC 50 autopilot display and GPSMAP chartplotters, creating a unified console look. Available in horizontal mount, it saves precious dash space on flybridges or center consoles. Compass-safe up to 114 mm away, it won't interfere with your navigation instruments.
Plug-and-Play NMEA 2000 Integration
Installation boils down to one NMEA 2000 drop cable and T-connector—no extra power wiring needed, as it draws from the network. Whether retrofitting an older setup or building a new one, flush or surface mounting hardware gets you up and running fast. Boaters often share how this simplicity cuts setup time in half compared to bulkier controllers.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions (WxHxD) |
Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm) |
| Weight | 4.09 oz (116 g) |
| Temperature Range | From 5°F to 158°F (from -15°C to 70°C) |
| Material | Fully-gasketed, high-impact plastic |
| Water Rating | IPX7 |
| Compass-Safe Distance | 4.5” (114 mm) |
| Power | Supplied from NMEA 2000 network |
What's Included
- APK 10 autopilot keypad (horizontal)
- Backbone/drop cable (2 m) and T-connector for NMEA 2000 network
- Mounting hardware for flush and surface installation
- Documentation
Why Boaters Choose the APK 10 for Superior Handling
From coastal cruisers to offshore adventurers, this keypad stands out for its tactile feedback that remote screens can't match. Pair it with Reactor 40 for grid-shift steering on multi-engine vessels or solo watchstanding ease. Users rave about the status lights visible even in bright sunlight, reducing errors on long passages.
Frequently Asked Questions
Is the APK 10 compatible with all Garmin autopilots?
It's optimized for the Reactor 40 series but integrates via NMEA 2000 with other compatible Garmin autopilots. Check your system's backbone for seamless connectivity.
Can I mount the horizontal APK 10 on a vertical surface?
The horizontal model is designed for landscape orientation, but flush and surface hardware allows flexible placement. For portrait needs, consider the vertical variant.
Does it require separate power wiring?
No—power comes directly from the NMEA 2000 network, simplifying your install to just one cable connection.
How durable is it in harsh marine environments?
With IPX7 rating and operation from -15°C to 70°C, it's built to handle submersion tests, UV exposure, and extreme temps without faltering.
What functions can the multipurpose buttons handle?
Program them for vessel-specific tasks like mode selection, U-turns, or wind hold, configurable through your Garmin display settings.
Will it interfere with my compass?
Safe up to 4.5 inches away, ensuring accurate headings without magnetic disruption.
Is installation DIY-friendly for most boaters?
Absolutely—basic tools and NMEA knowledge get it done in under an hour, with included hardware and clear docs.
APK™ 10 Autopilot Keyboard - Horizontal
GAIN PRECISE CONTROL OF YOUR AUTOPILOT
Get easy-to-use control of your Reactor™ 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.
Rotary Knob
The LED-encircled knob provides precise heading control and colored reference of autopilot status.
Autopilot Buttons
Dedicated engage and standby buttons make starting and stopping your autopilot easy.
Multipurpose Buttons
Add more autopilot control functions based on your vessel type and setup preferences.
Simple Installation
Connect to your NMEA® 2000 network with a single port and cable for integration and power.
Compact Design
A low-profile design matches the height of your GHC 50 instrument and GPSMAP® chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.
In The Box:
- APK 10 autopilot keypad (horizontal)
- Backbone/drop cable (2 m) and T-connector for the NMEA 2000® Network
- Mounting hardware (flush and surface)
- Documentation
Specifications:
- Dimensions (WxHxD): Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm)
- Weight: Horizontal: 4.09 oz (116 g)
- Temperature range: From 5° to 158°F (from -15° to 70°C)
- Material: Fully-gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5” (114 mm)
- Powered input: Powered supplied from the NMEA 2000® network
SKU: NVN-107476
MPN: 010-03197-00
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin APK™ 10 Autopilot Keyboard - Horizontal |
| SKU / MFR# | 107476 |
