Garmin Bail Mount w/Quick Release Cradle f/ECHOMAP™ UHD2 9sv
Garmin Bail Mount w/Quick Release Cradle f/ECHOMAP™ UHD2 9sv — Product description
Effortless Mounting for Superior On-Water Visibility
Imagine launching your boat at dawn, securing your chartplotter in seconds, and adjusting the angle perfectly for glare-free views across the water. This bail mount with quick-release cradle transforms how you handle your ECHOMAP UHD2 9sv, making every fishing trip or navigation session smoother and more intuitive. Crafted for boaters who demand reliability in rough conditions, it combines sturdy surface mounting with user-friendly tilt adjustments via easy-grip knobs—no tools required for on-the-fly tweaks.
Whether you're chasing trophy bass in shallow bays or charting coastal routes, this mount keeps your device stable and accessible, letting you focus on the thrill of the catch rather than fiddling with hardware.
Standout Features That Deliver Real-World Performance
- Adjustable Tilt Mechanism: Fine-tune the viewing angle with knurled knobs to match your seating position, helm height, or sun position, ensuring crystal-clear reads on your UHD2 display even during choppy rides.
- Quick-Release Cradle Design: Pre-plug your power, transducer, and networking cables into the cradle. Snap your chartplotter in or out effortlessly, ideal for trailering, overnight storage, or quick theft deterrence at crowded ramps.
- Robust Surface Mounting: Bail-style bracket hugs consoles or flat surfaces securely, distributing weight evenly to handle vibrations from outboards or waves without shifting.
- Marine-Tough Build: Engineered with corrosion-resistant materials that stand up to saltwater spray, UV exposure, and freshwater splashes, promising years of dependable service on any vessel.
These aren't just specs—they're practical solutions born from feedback of seasoned anglers and navigators who know shaky mounts ruin outings.
Simple Installation to Get You Back on the Water Fast
Setting up this bail mount takes minutes, not hours. Start by selecting a flat, stable surface on your console or dash—aim for eye-level when seated to minimize neck strain. Use the included template for precise drill holes, secure with marine-grade fasteners (not supplied, but stainless steel recommended), and route cables through the cradle's built-in channels for a clean, snag-free setup.
Pro Tip: Position it slightly offset from center if pairing with other electronics, leaving room for future Garmin accessories like LiveScope transducers. Test the tilt range before final tightening to confirm optimal ergonomics. Most users report full installs in under 20 minutes, with no special tools beyond a drill and screwdriver.
Common Placement Ideas
- Center console boats: Forward-facing for solo anglers.
- Bass boats: Swivel pedestal integration for tournament pros.
- Offshore vessels: Elevated for multi-person helm stations.
Why Boaters Swear by This Mount for Their ECHOMAP UHD2 9sv
In the world of marine electronics, a great mount is invisible when it works right—but painfully obvious when it doesn't. This quick-release system shines by letting you detach your chartplotter for garage safekeeping or portable use ashore, all while cables remain protected and connected. It's a game-changer for security-conscious owners docking in public marinas.
Anglers love how it pairs with the UHD2's Ultra High-Definition sonar and vivid mapping—steady positioning means spotting structure and fish with pinpoint accuracy, even at trolling speeds. Captains navigating tricky inlets appreciate the rock-solid hold that withstands 20-knot winds and wakes from passing yachts.
Compared to flush mounts, this bail design offers flexibility without permanent commitments, and unlike generic brackets, its Garmin-engineered fit ensures zero play or wobble over time.
Keep It Performing Like New Season After Season
Longevity comes easy with basic care. Rinse with fresh water after saltwater exposure to fend off corrosion, and inspect knobs and pivot points annually for wear. Lubricate with marine silicone spray if tilts get sticky from sand or debris. Avoid high-pressure washes directly on electronics connections.
Store detached indoors during off-season to shield from extreme temps. With this routine, expect a decade-plus of service, outlasting many factory setups.
Frequently Asked Questions
Is this bail mount compatible only with the ECHOMAP UHD2 9sv?
Yes, it's precision-designed for ECHOMAP UHD2 9-inch chartplotters, ensuring a secure, rattle-free fit specific to that model's dimensions and connectors.
Does the quick-release cradle require replugging cables every time?
No—cables plug directly into the cradle and stay connected. Just snap the device on or off for hassle-free removal.
Can I adjust the tilt while boating?
Absolutely. The knurled knobs allow tool-free adjustments underway, perfect for changing light conditions or seating.
What surfaces is this mount suitable for?
It excels on flat consoles, dashes, or gimbal setups made from fiberglass, aluminum, or wood. Use appropriate fasteners for your material.
Is it resistant to saltwater corrosion?
Yes, constructed with marine-grade, corrosion-resistant components to handle harsh saltwater environments without degrading.
Can I use this mount with other Garmin accessories?
It integrates seamlessly with compatible transducers, network cables, and power setups for your UHD2 series, keeping wiring organized.
How much weight does the bail mount support?
Engineered to securely hold the ECHOMAP UHD2 9sv's weight, with extra margin for stability in motion.
Bail Mount with Quick Release Cradle for ECHOMAP™ UHD2 9sv

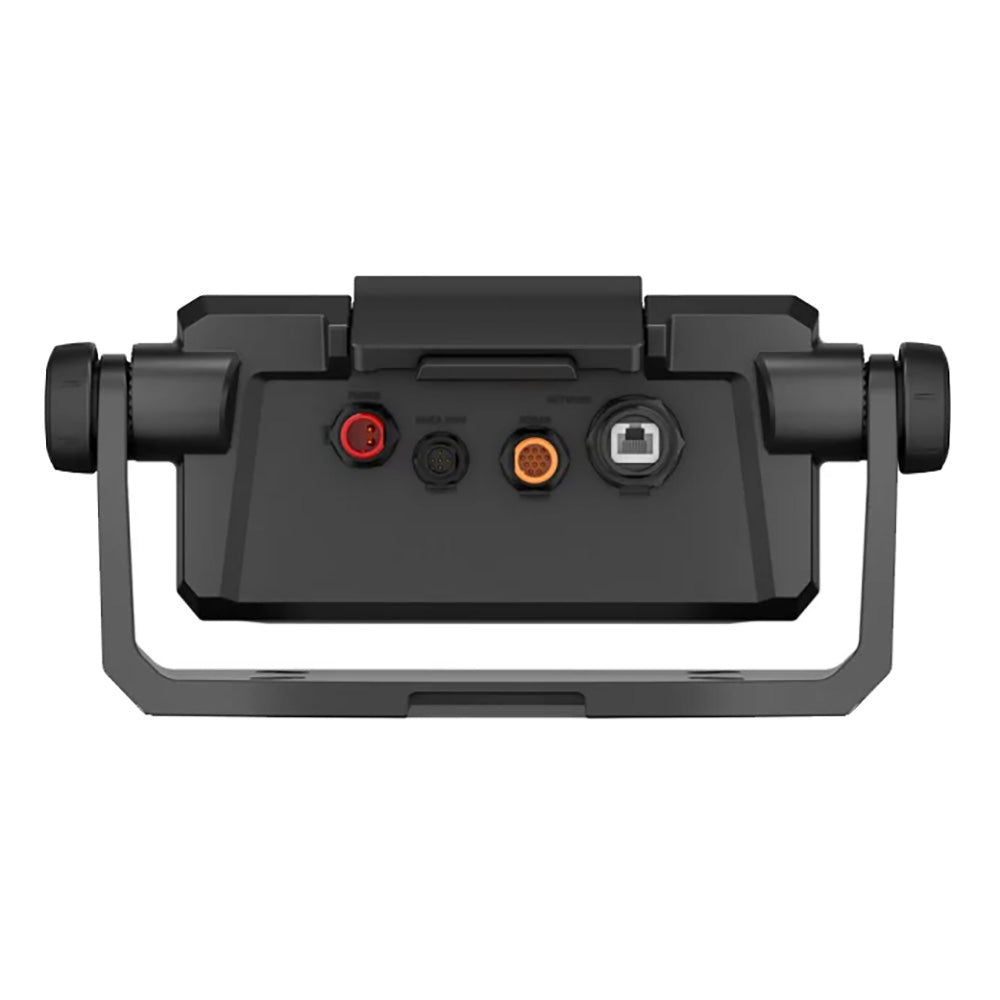

Surface mount your compatible ECHOMAP™ UHD2 chartplotter by using the bail mount with knobs; the mount tilts for optimum viewing. Plugging the cables into the mount’s quick-release cradle allows you to quickly seat/unseat your device with ease.
Compatible Devices:
- ECHOMAP™ UHD2 9" Chartplotters
SKU: NVN-98069
MPN: 010-13115-12
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin Bail Mount w/Quick Release Cradle f/ECHOMAP™ UHD2 9sv |
| SKU / MFR# | 98069 |
Set product metafields under specs.* to populate this table.
