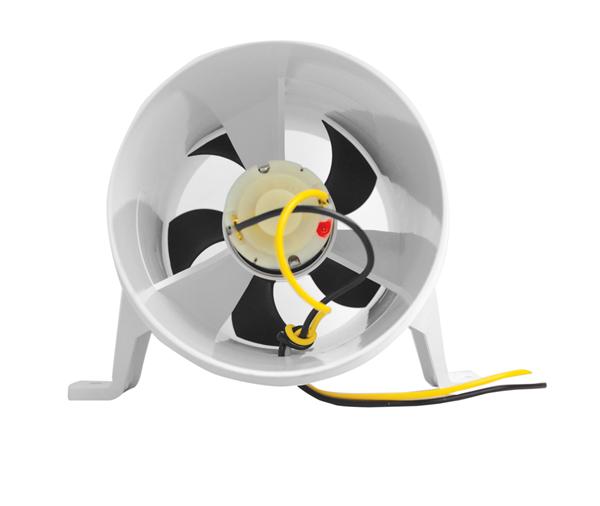

Attwood Marine 17511 Bilge Vent Blower

Attwood's new and improved Turbo 4000 Series II sets the standard for in-line blower performance. Utilizing advanced fan blade design techniques, Attwood has developed a blower system that matches air flow of existing in-line blowers at a significantly reduced noise level. The first vane axial-flow fan bilge blowers designed using aerospace technology to maximize performance. No other bilge blowers in the industry provide such powerful system output at such a low power input in a compact size. Patented in-line design – provides ventilation for engine compartments, galleys, bilges, and heads. Mounting feet allow vertical or horizontal installation in confined spaces. Install with #10 fasteners. Individual carton includes 2 tie straps. All are CE certified. 16-gauge tinned and caulked copper wire leads.

Attwood Marine 17511 Attributes

• Compatibility: 4 Inch Inside Diameter Ventilation Hose
• Flow Rate: 200 Cubic Feet Per Minutes
• Voltage Rating: 24 Volt
• Ampere Rating: 1.5 Amp
• Length: 6-1/16 Inch
• Width: 4-17/32 Inch
• Color: White
• Material: Plastic
• With Tie Straps: Yes
• With Fastener: Yes

Attwood Marine 17511 Features & Benefits

• Nickel-Plated Motor Can For Corrosion Resistance
• Stiffening Ribs To Reduce Housing Distortion
• Motor Cap To Seal Wires And Motor For Water Resistance
• Five-Blade Fan Maximize Airflow And Efficiency
• Tabs In Intake And Exhaust Hold Ventilation Hose And Clamp Firmly In Place
• Low Amp Draw Motor For Longer Blower And Battery Life
• Built-In Mounting Feet Allow Easy Vertical Or Horizontal Install
• Limited 3 Year Warranty

Attwood Marine 17511 Installation Instructions

• 69465-turboin-linebilgeblowers-instr-ra.pdf

Attwood Marine 17511 Warranties

• Attwood Warranty 2009.pdf

Attwood Marine 17511 Technical Bulletins

• eu-mse022-001.pdf
• 1731_BUl.pdf

SKU: NVN-2005065
MPN: 1751-1
UPC: 022697025012
