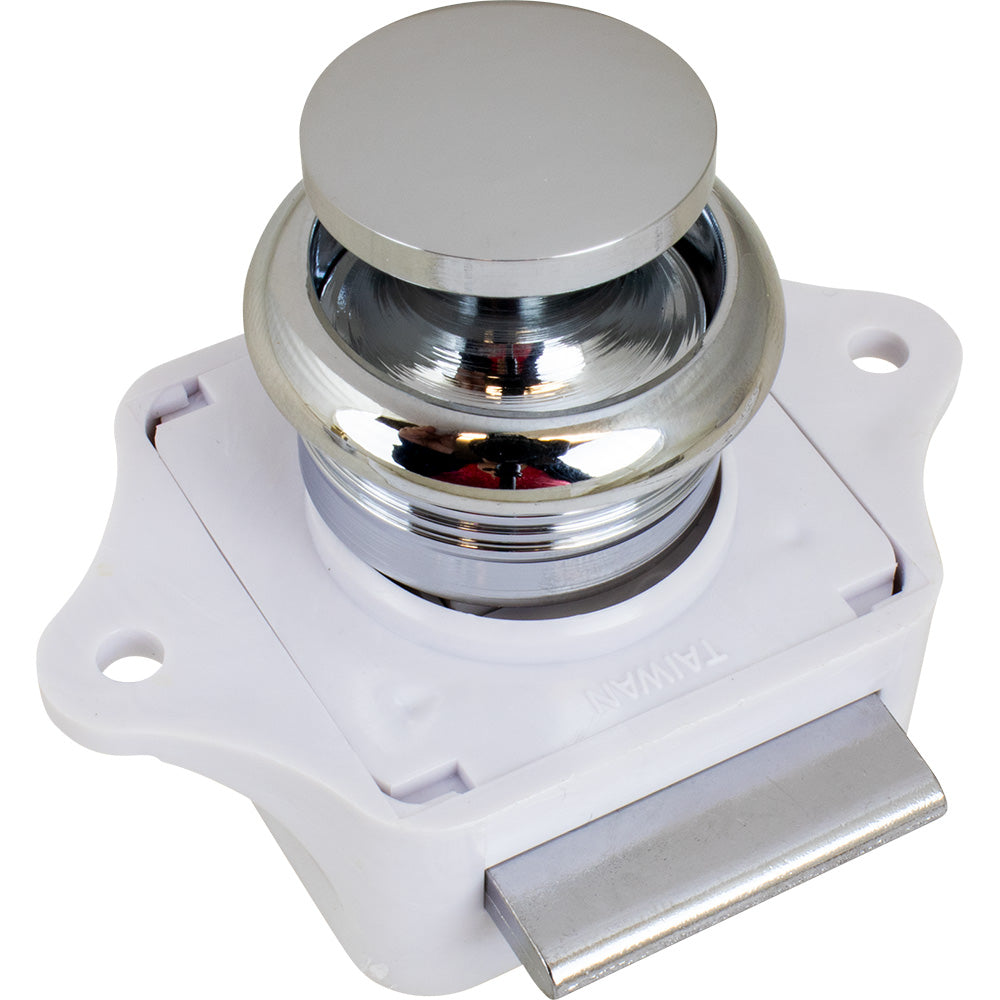

Sea-Dog Push Button Rim Latch - Chrome Plated Brass
Sea-Dog Push Button Rim Latch - Chrome Plated Brass — Product description
Push Button Rim Latch - Chrome Plated Brass
Push Button Rim Latch housings feature a streamlined, positive-action closure, ensuring cabinets and drawers stay closed until the button is deliberately pushed. Suitable for left-side or right-side use. Mortise mount for a sleek, finished appearance. Constructed of sturdy plastic with a chrome plated or polished brass knob. Latch installs with two #6 RH fasteners, strike plates require two #4 FH fasteners (fasteners not included). Display version comes with both flat and 90° strike plates for inset or overlay mounting. When ordering bulk, please order strike plates (224320 flat, or 224321 90°) separately. Hole spacing on flat strike plate (224320) is 1-7/8". Hole spacing on 90° strike plate (224321) is 1-3/16". For OEM applications, varying combinations of rosettes/buttons are available.
Specifications:
- Max. Door Thickness: 1"
- Finish on Brass: Polished Chrome
- Fastener: #6 RH
SKU: NVN-108440
MPN: 224300-1
UPC:
Technical specifications
| Brand | Sea-Dog |
| Model | Sea-Dog Push Button Rim Latch - Chrome Plated Brass |
| SKU / MFR# | 108440 |
