Marinco Wiper Motor 2.5 Series - 12V - 2.5" Shaft - 110° - Heavy-Duty

Wiper Motor 2.5 Series - 12V - 2.5" Shaft - 110° - Heavy-Duty

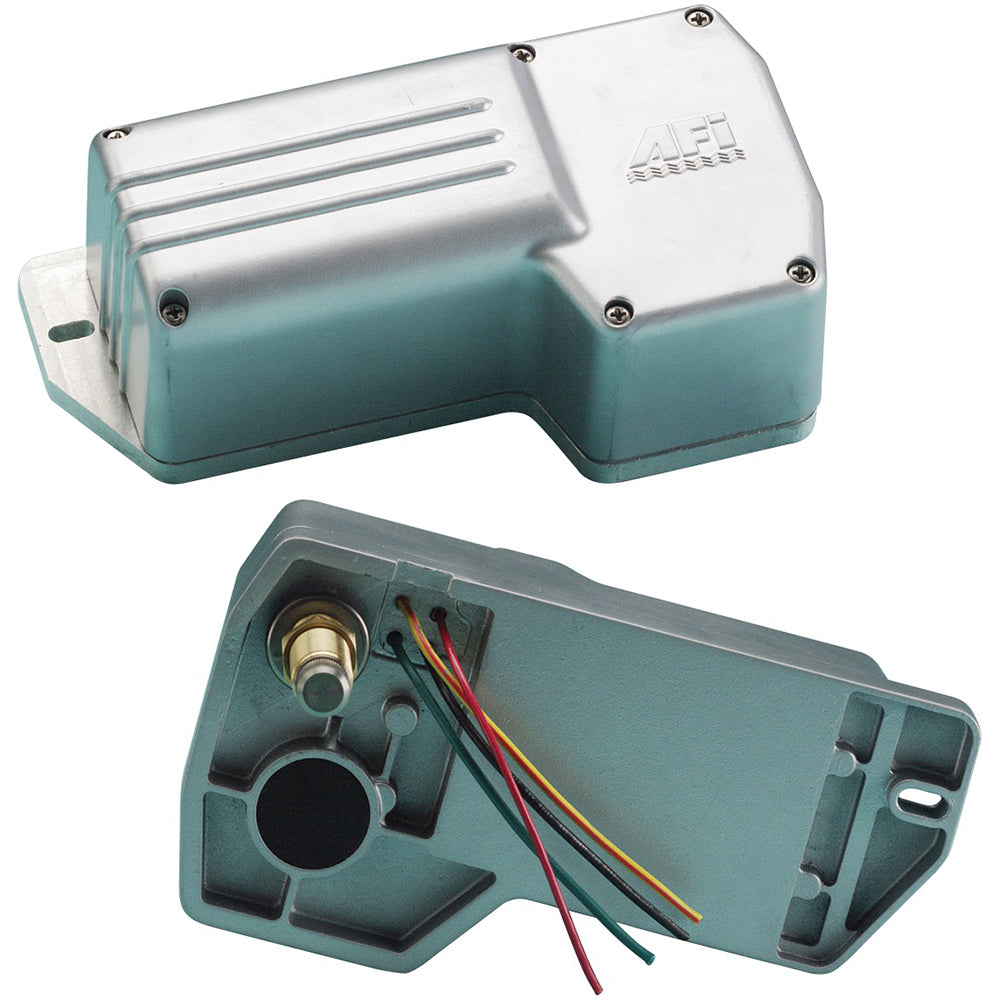

The 2.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 26" Deluxe arm and Deluxe blade combination or a 24" Premier arm and Premier blade combination.

Features:

• Available in two shaft lengths: 1.5" and 2.5"
• Factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree
• Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
• Two speed motor
• Sealed 6" wire leads, 16 AWG
• Adjustable right or left self parking
• 0.625" diameter shaft (16 mm)
• Available in 12V and 24V models
• Coast to park
• RF shielded circuitry
• Retail version includes 6 amp fuse and holder (operating switch not included)
• Measures approximately 7.875" L x 4.25" W x 3" D
• Stall torque: 139 in-lbs (160 kgf/cm; 15.7 Nm)
• Stall current: 9.0-10.5 amps
• No load current: 1.0 -1.6 amps

Type: 110 degrees. 2.5 The waterproof wiper motor is made of a completely sealed powder-coated aluminum waterproof base and shell, which can power 26-inch luxury arms and luxury blades.
SKU: NVN-79311
MPN: 82012
UPC: 035028820125
