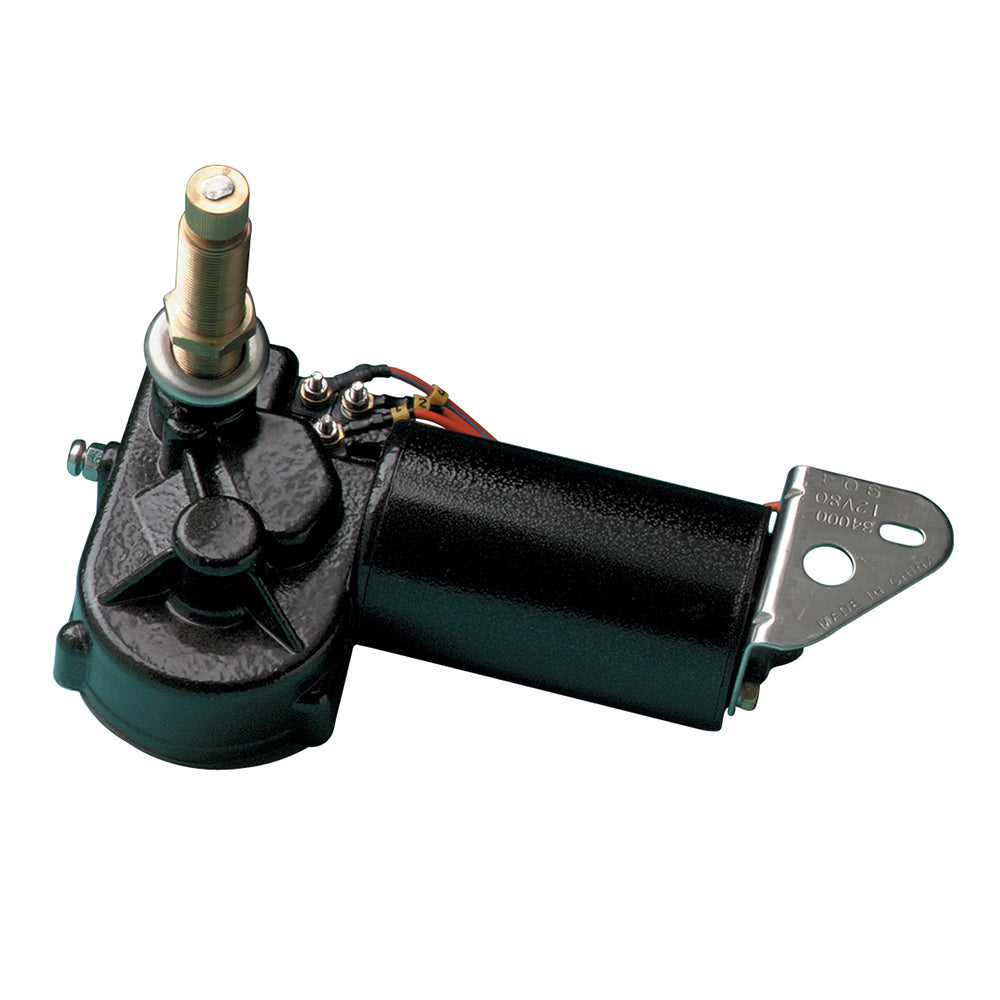

Marinco Wiper Motor, MRV, 12V, 3.5" Shaft - 80°

Wiper Motor, MRV, 12V, 3.5" Shaft - 80°

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree
• 0.625" diameter shaft (16 mm)
• Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
• Corrosion-resistant casing
• Heavy-duty motor with right angle drive
• Two-speed motor, can be operated as one speed
• Solid brass knurled drive nut with brass and stainless steel drive shaft
• Adjustable right or left self parking, coast to park
• Retail version includes 5 amp fuse and holder
• Stainless steel fasteners and mounting bracket
• Use with three-position switch (not included)
• Compact size - 7.625" L x 4" W x 2" D
• Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No load current: 0.5-1.2 amps

Yellow weatherproof cover with top cover; yellow LEXAN polycarbonate polycarbonate cover with reversible cover, suitable for 15A, 20A and 30A single sockets.
SKU: NVN-76803
MPN: 38005
UPC: 035028380056
