Marinco P15-30 EEL 30A-125V Female to 15A-125V Male Pigtail Adapter - Yellow
Marinco P15-30 EEL 30A-125V Female to 15A-125V Male Pigtail Adapter - Yellow — Product description
Pigtail Adapters allow you to connect from one dockside receptacle (or other power source receptacle) to one boatside inlet or equipment of dissimilar power configuration. These adapters are fully molded and equipped with The Marinco unique sealing collar and covers for use in wet locations. The EEL (Easily Engaged Lock) is a patented, industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved.
Marinco P1530 Attributes
- Type: Pigtail
- NEMA Standard 1: 5-15P
- NEMA Standard 2: L5-30R
- End Type 1: Straight Blade
- End Type 2: Twist Locking
- End Rating 1: 15 Amp
- End Rating 2: 30 Amp
- Length: 20 Inch
- Jacket Color: Yellow
- Jacket Material: PVC
- Waterproof: Yes
- With Locking Ring: Yes
- With Lighted End: Yes
- With Plug Head Handle: No
Marinco P1530 Features & Benefits
- Built-In Cord Light For Added Safety
- Alert Light Indicates If You Are Plugged Into The Dock And Cord Is Powered
- Power Indicator Light On Both Ends Informs You Full Power Is Flowing Through The Cord
- Meets And Exceeds Rigorous To Testing Standards
- Limited 5 Year Warranty
Marinco P1530 Installation Instructions
Marinco P1530 Technical Bulletins

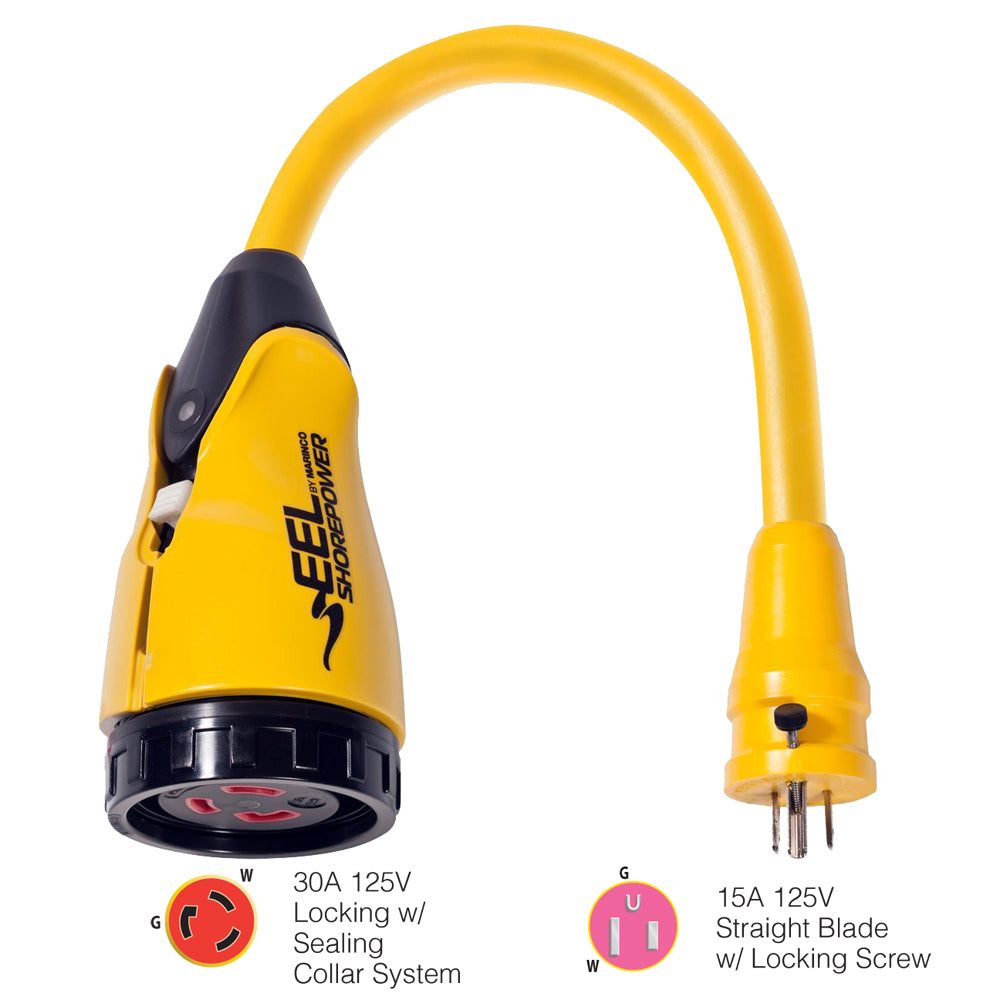

EEL Pigtail Adapters
These adapters are equipped with sealing collars and are for use in wet locations.
Boat Side
Female Connector: Attaches to boat inlet or cordset
30A-125V Locking w/ Sealing Collar System
Dock Side
Male Plug: Attaches to dockside receptacle or cordset
15A-125V Straight Blade w/Locking Screw
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
These adapters are equipped with sealing rings and can be used in humid places. Ship side female connector: connected to the ship’s inlet or cable kit 30A-125V, with a sealing lock...
SKU: NVN-49358
MPN: P15-30
UPC: 093344051760
Technical specifications
| Brand | Marinco |
| Model | Marinco P15-30 EEL 30A-125V Female to 15A-125V Male Pigtail Adapter - Yellow |
| SKU / MFR# | 49358 |
