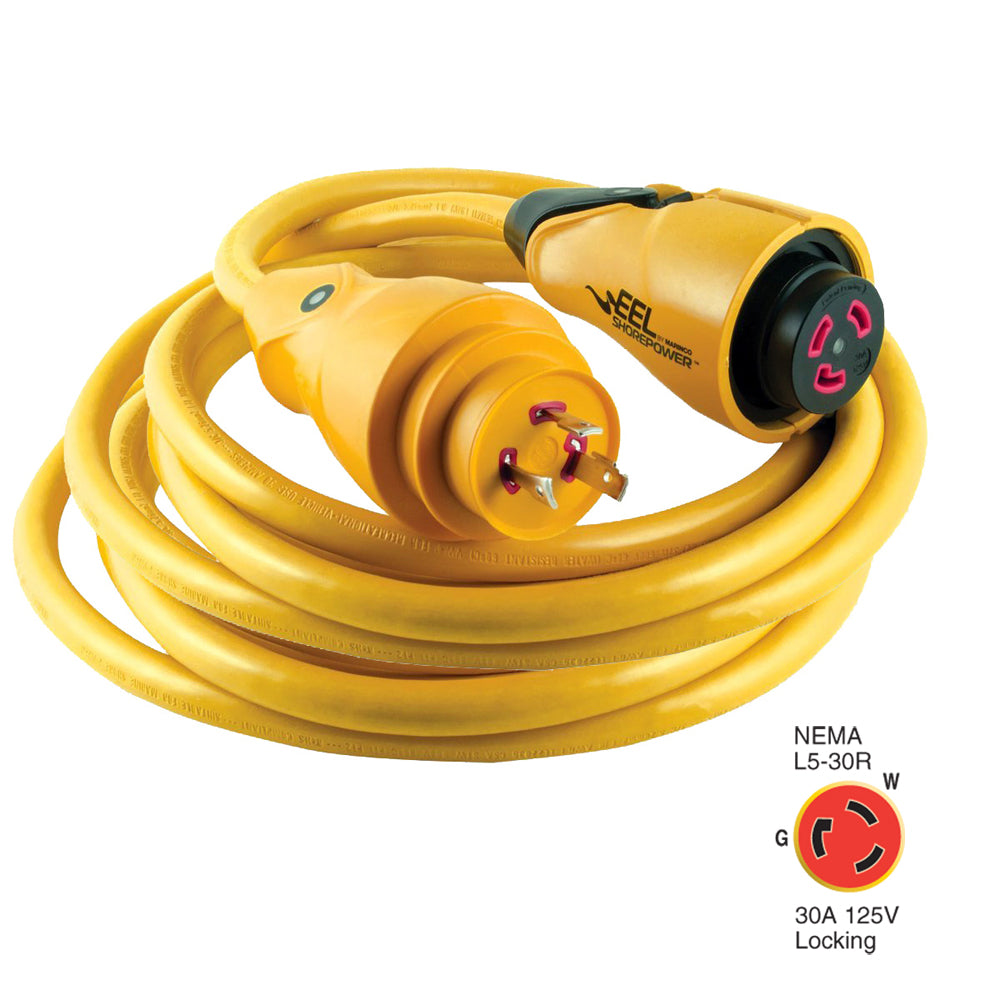

Marinco CS30-50 EEL 30A 125V Shore Power Cordset - 50' - Yellow
Marinco CS30-50 EEL 30A 125V Shore Power Cordset - 50' - Yellow — Product description
The EEL (Easily Engaged Lock) ShorePower Cordset has a patented, industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.
Marinco CS3050 Attributes
- NEMA Standard Male: L5-30
- NEMA Standard Female: L5-30R
- End Type Male: 3 Prong
- End Type Female: Socket
- End Rating Male: 30 Amp
- End Rating Female: 30 Amp
- Wire Size: 10 AWG
- Length: 50 Feet
- Jacket Color: Yellow
- Jacket Material: PVC
- Electrical Certifications: UL
- With Carrying Strap: No
Marinco CS3050 Features & Benefits
- Designed For Use With Standard Inlets
- Single-Handed Operation
- Power Indicator Light On Both Ends Informs You Full Power Is Flowing Through The Cord
- Patented Jaw-Clamp Technology Provides A Watertight Seal Every Time
- Built-In Cord Light For Added Safety - Alert Light Indicates If You Are Plugged Into The Dock And Cord Is Powered
- Meets And Exceeds Rigorous UL Testing Standards
- Limited 5 Year Warranty
Marinco CS3050 Installation Instructions
Marinco CS3050 Technical Bulletins
30A 125V Cordset
EEL ShorePower Cordsets
One Hand. A simple twist. Full Power.
The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.
Features:
- Designed for use with standard inlets (NEMA)
30A, 125V capacities; 50' length
- Cord sets meet global industry standards including ABYC and UL
- New wing-clamp technology provides a true, watertight connection every time
- Single-handed operation
- Eliminates the need for a sealing ring
- Secondary locking feature for added security
- Built-in LED cord light guides you to a secure connection every time, even in the dark
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The EEL (Easy Engagement Lock) ShorePower power cord has the industry's first patented jaw clamp design, which can be operated with one hand, and has a strong waterproof seal, which can completely...
SKU: NVN-49353
MPN: CS30-50
UPC: 093344051661
