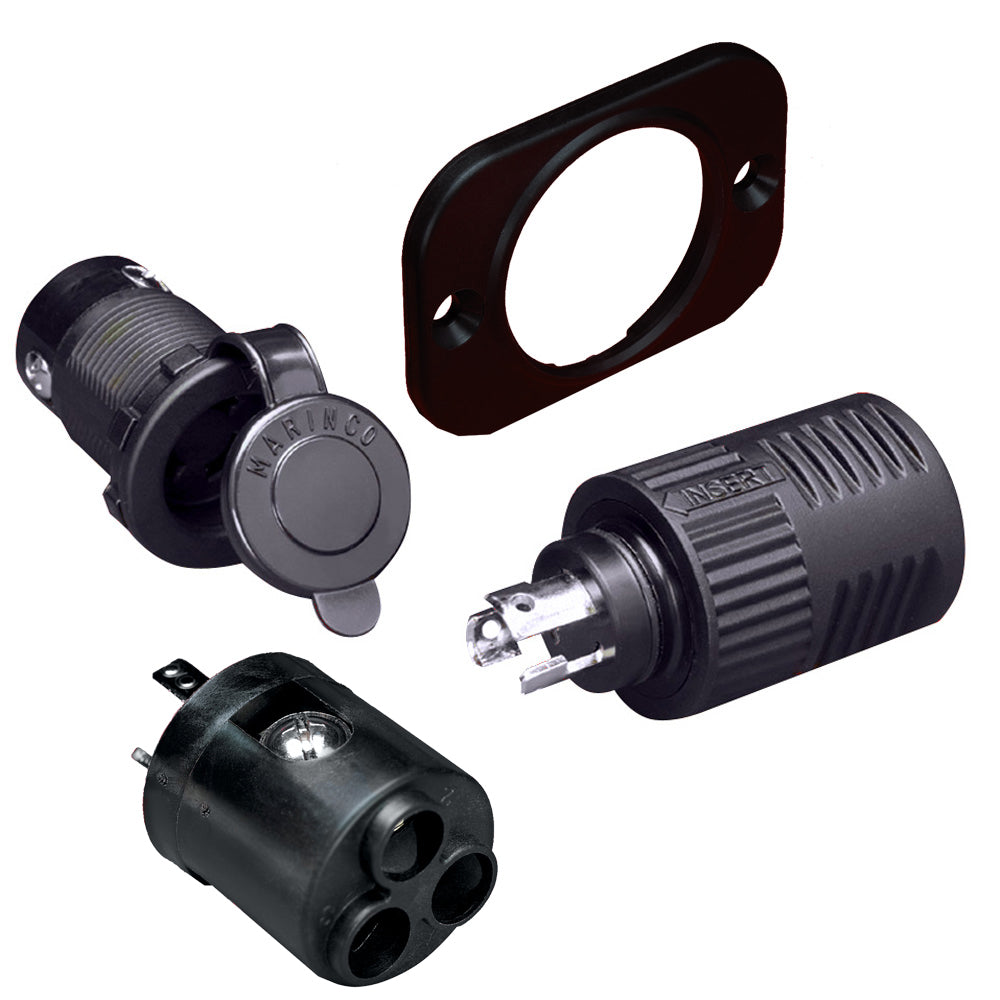

Marinco ConnectPro® Charging/Trolling Receptacle, Plug & 6-Guage Adapter

The ConnectPro trolling motor plug and receptacle system is a revolutionary concept in trolling motor DC connections. The superior electric current carrying capacity of the ConnectPro system eliminates problems that rob motors of power and reduce battery life. The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.

Marinco 12VCP6 Attributes

• Type: Receptacle/ Plug/ 6 Gauge Adapter
• Voltage Rating: 12 Volt/ 24 Volt/ 36 Volt
• Ampere Rating: 40 Amp
• Color: Black
• Weatherproof: Yes
• With Perma-Lock Screw Terminals: Yes
• With Mounting Plate: Yes

Marinco 12VCP6 Features & Benefits

• Eliminates Problems That Rob Motors Of Power And Reduce Battery Life
• Features A Locking Plug And Receptacle With A Spring Clamping Connection That Provides A Secure Electrical Contact
• Maximum Rating Is 40 Ampere
• Easy To Install
• Limited 5 Year Warranty

ConnectPro® Charging/Trolling Receptable, Plug & 6-Guage Adapter

The ConnectPro® system features locking plug and receptacle and spring clamping connection, which provide a secure electrical contact.

Receptacle is universal design for 2-or-3 wire configuration, 12, 24, 12//24, 24//36 or 36 volt systems.

Features:

• Watertight sealing cap

• Corrosion resistant, plated brass electrical components with drain holes in receptacle to keep water away from electrical components

• Standard 1-1/8 diameter mounting hole and accepts up to 8 gauge wire
• Includes mounting plate

• Plug has O-ring seal for waterproof connections

• Weather resitant plug cover

• Accepts 16 to 8 gauge wire

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The connectpro system has the function of locking plugs and sockets and spring clamp connections to provide firm electrical contact. The socket is a universal design of 2 or 3...
SKU: NVN-49232
MPN: 12VCP6
UPC: 093344305313
