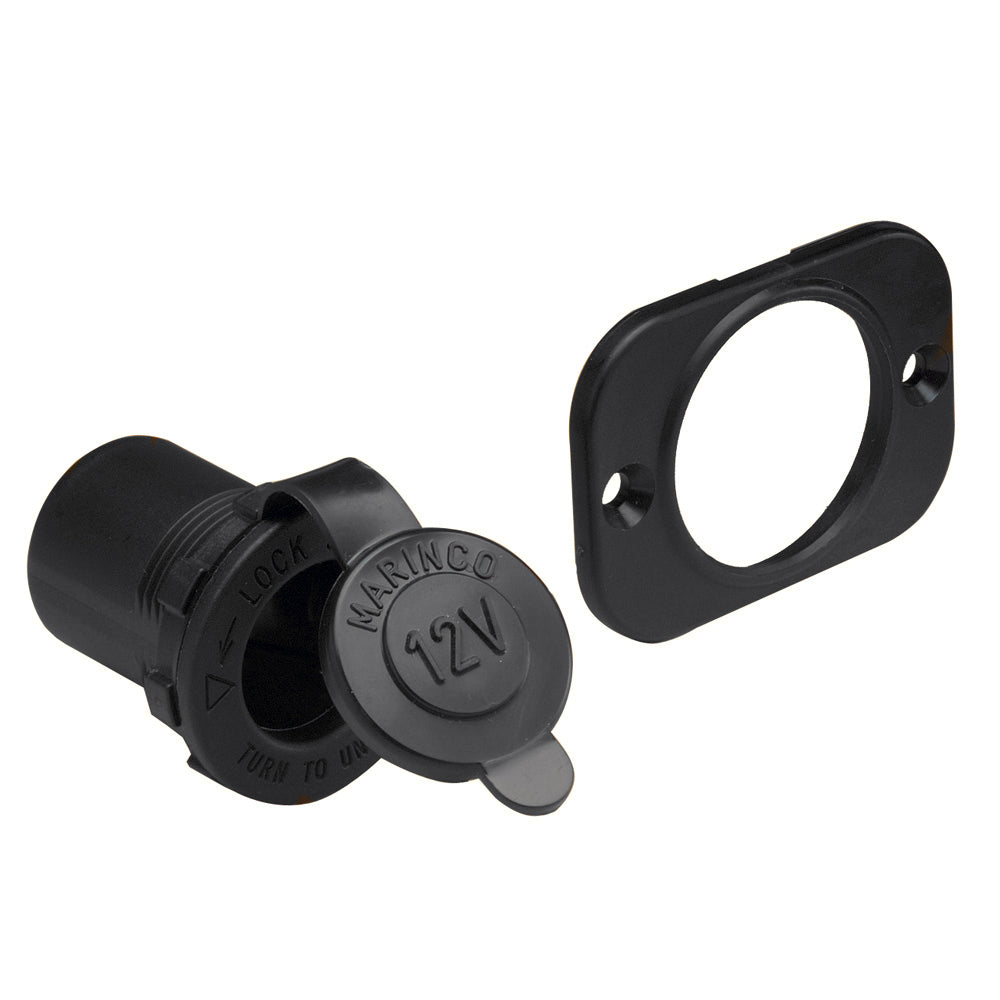

Marinco 12VRC Sealink Deluxe 12V Receptacle

The SeaLink 12 volt family of products are manufactured from corrosion resistant marine grade materials. Exclusive to SeaLink products is a unique interconnecting system that securely locks the plug into the receptacle resulting in a positive and moisture-proof connection. The plug and receptacle feature optimized metal connection points for maximum conductivity.

Marinco 12VRC Attributes

• Used For: 12 Volt Power
• Number of Power Ports: 1
• Color: Black
• Installation Type: Screw-On

Marinco 12VRC Features & Benefits

• Watertight Plastic Cap Seals Receptacle When Not In Use
• Compatible With Standard 12 Volt Plugs
• Terminals: NEMA 0.250 Inch Quick Connect Tabs
• Requires 1.12 Inch Cutout Mounting Hole
• Provisions For Front Or Rear Mounting - Includes Mounting Plate (Not Included With 12VRC.OEM) For Front Panel Installation Or Locking Ring For Rear Access Installation
• Compatible With Standard 12 Volt Plugs, But Has Recesses For A Matching Marinco Sealink Plug To Secure By Twist-Lock
• No Supplier Warranty

Marinco 12VRC Technical Bulletins

• 12VRC_SPEC.pdf

Sealink Deluxe 12 Volt Receptacle
12VRC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Made of high-quality marine-grade materials that can withstand harsh marine environments. The interconnection system ensures a moisture-proof connection. Plug function...
SKU: NVN-42706
MPN: 12VRC
UPC: 093344304484
