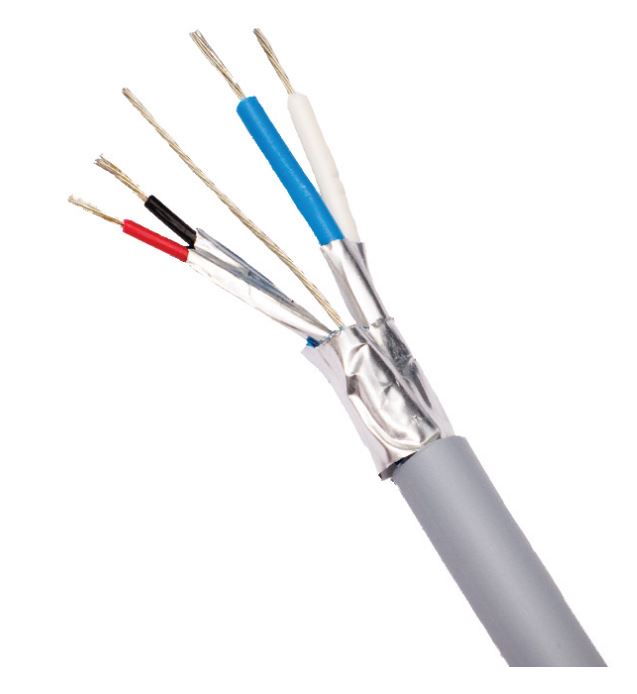

Maretron Micro Bulk Cable Single Piece - 100M Spool

Bulk Micro cable is primarily used as drop cable but can be used as the trunk line depending on network power requirements.

Maretron CG1100C Attributes

Micro Bulk Cable Single Piece - 100M Spool

Micro bulk cable is primarily used as drop cable, but it can also be used as the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths.

Features:

• Single Piece
• 100M Spool Length
• Trunk of drop cable for use with Micro Connectors
• Used with field attachable connectors to build exact length cables at the job site

Before returning the goods, you need to provide the RMA number. Any return without an RMA number will be rejected.

ELECTRICAL:

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
• CABLE Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

ENVIRONMENTAL:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40°C to 80°C to (-40°F to 176°F)

APPROVALS:

• (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-76996
MPN: CG1-100C
UPC: 087380400309
