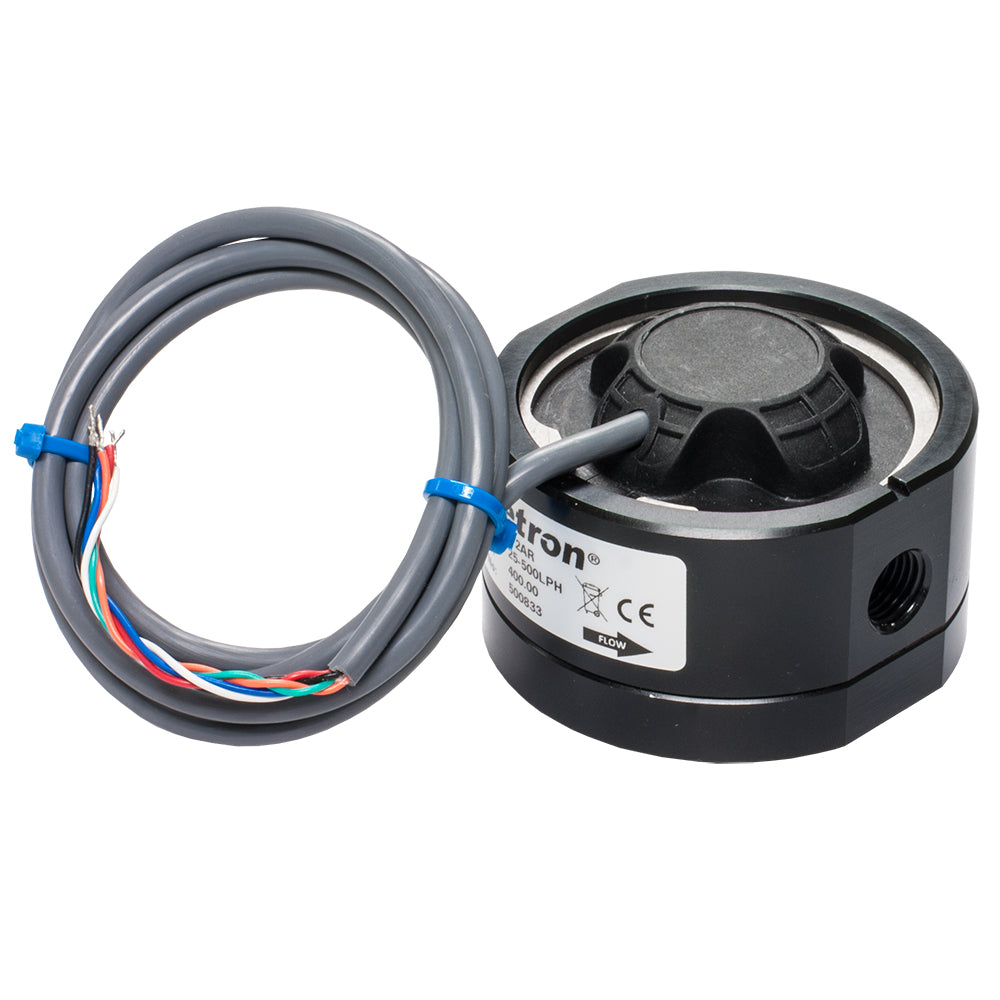

Maretron Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH

When fluid passes through the sensor, the internal rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.

*Note: Two Fuel Flow Sensors and one FFM100 Fuel Flow Monitors are required per device being monitored.

Maretron M2AR Attributes

Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH

Features:

• Operating Temperature: -40°C to 80°C (-40°F to 176°F)

• Storage Temperature: -65°C to 170°C (-85°F to 338°F)

• Port Size: 1/4" NPT Female

• Cable Length: 1M (3.28 ft)

• Maximum Viscosity: 1000 cPs

• Pressure: 68.95 Bar (1000 PSI)

• Strainer Size: 200 Mesh (If not already installed after fuel filter)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Maretron M2AR fuel flow sensor 25 to 500 LPH 6.6 to 132 GPH Model: M2AR UPC: 873804003535 used with Maretron FFM100 fuel flow meter Specifications Operating temperature -40C to 80C -40F to 176F Storage temperature -65C to 170C -85F to 338F Port size 1/4 inch NPT internal thread accuracy percentage reading 0. 25 Enter the percentage with k factor on the sensor into ffm100, the maximum viscosity is 1000 cps, the maximum working pressure is 68. 95 Bar 1000 psistrainer size 200 mesh (if fuel is used) Before installation, the length of the filter cable is 1m 3). 28 feet 1. 66 pounds size 2.91 inches x 2.80 inches x 1.91 inches

Flow range (per hour):

• 25 to 500 LPH (6.60 to 132 GPH)

SKU: NVN-56247
MPN: M2AR
UPC: 873804003535
