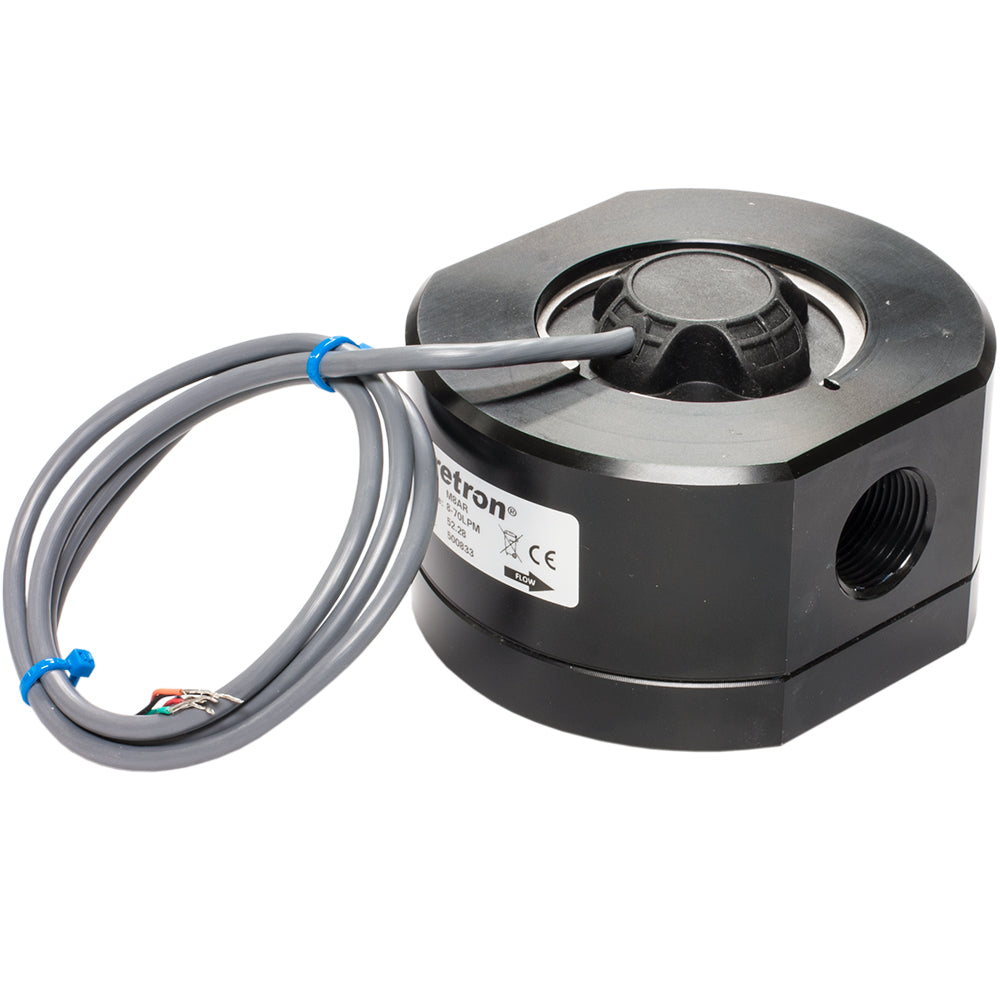

Maretron Fuel Flow Sensor 8-10 LPM/2.1-18.5 GPM

When fluid passes through the sensor, the internal rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.

*Note: Two Fuel Flow Sensors and one FFM100 Fuel Flow Monitors are required per device being monitored.

Fuel Flow Sensor 8-10 LPM/2.1-18.5 GPM

When fluid passes through the sensor, the rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.

Specifications:

• Construction: Housing Material Aluminum

• Port Size: 3/4" NPT Female

• Maximum Viscosity: 1000 cPs

• Strainer Size: 60 Mesh (If not already installed after fuel filter)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Fuel flow sensor 8-10 LPM / 2.1-18.5 GPM When fluid passes through the sensor, the rotor rotates. The magnet located in the rotor will pass through the sensor in the sensor circuit...

Flow range (per hour):

• 480 to 4200 LPH (127 to 1110 GPH)

SKU: NVN-55935
MPN: M8AR
UPC: 873804003559
