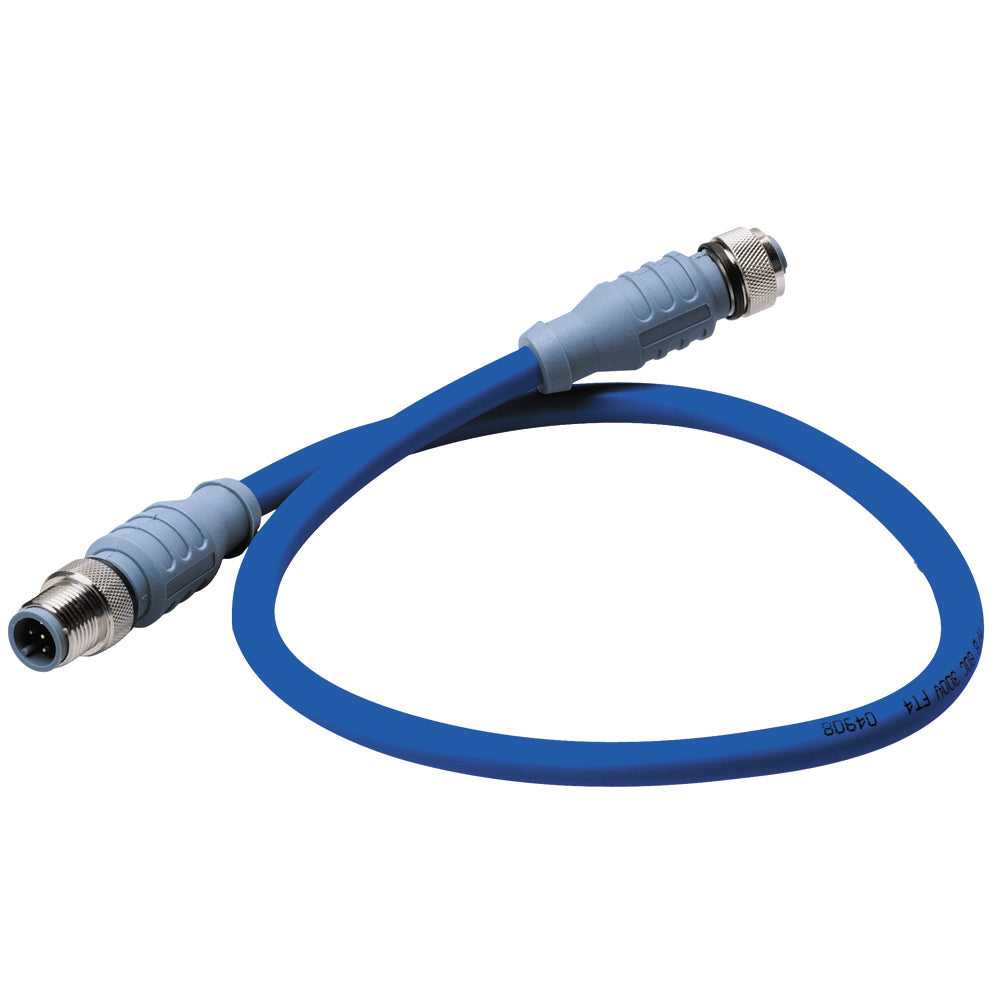

Maretron Mid Double-Ended Cordset - 1 Meter - Blue

Mid Double-Ended Cordset - M to F - 1m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron DMDB1DF010 Attributes

Mid Double-Ended Cordset - 1 Meter - Blue

Double-ended cordsets are used for trunk or drop lines and make for a secure
connection and simple timesaving installation. The connectors are keyed for
error-free connection and are waterproof for continued operation even while
submerged in the bilge.

Features:

• Rugged, IP68 rated connectors for continued connection integrity in
  marine environments

• Various cable lengths to match installatin requirements

• Optimized for voltage drop sensitive networks (long runs) because power
  pair wires have half the resistance of Micro cable

• Color: Blue

The middle double-ended cable set-1 meter-the blue double-ended cable set is used for the trunk line or the lead-in line, which can ensure safe connection and simple time-saving installation. This ...

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59”

ELECTRICAL:

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
• CABLE Outer Jacket Mat/Color: PVC/Blue
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40°C to 80°C to (-40°F to 176°F)

APPROVALS:

• (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-47010
MPN: DM-DB1-DF-01.0
UPC: 873804001906
