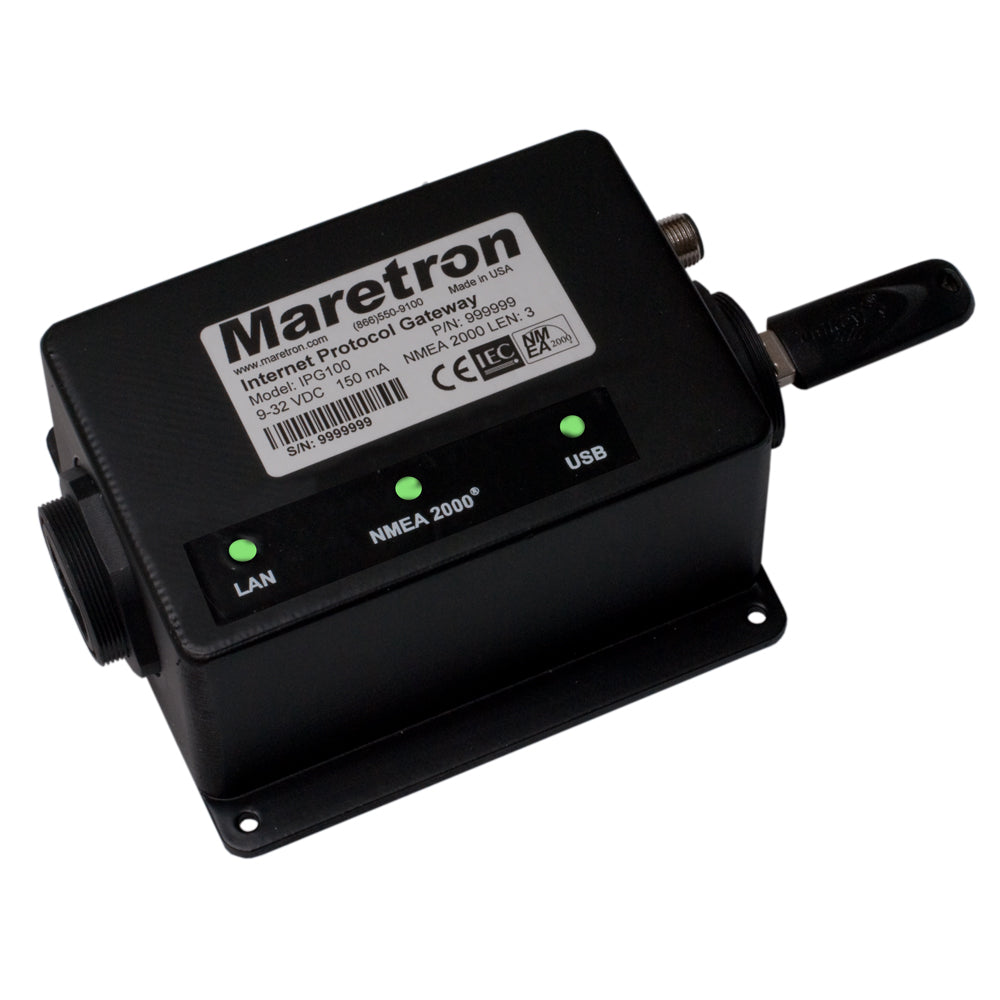

Maretron IPG100 Internet Protocol Gateway

Maretron IPG10001 Attributes

• Used To: Connect Maretron Black Boxes

IPG100 (Internet Protocol Gateway) lets you connect Maretron black boxes (MBB100's), Maretron touch screens (DSM800's), PC's, Mac's, tablets, or smartphones to an NMEA 2000 network so you can monitor and control your vessel using Maretron's N2KViewr software. The conventional way of viewing NMEA 2000 information is with a display on the vessel that is directly connected to an NMEA 2000 network, but with the IPG100, you are not limited to direct connected displays. With the IPG100, you can use any device running N2KViewr software to monitor and control your vessel from onboard or ashore.


The Internet Protocol Gateway (IPG100) allows you to connect a PC, Mac, tablet or smartphone to the NMEA 2000 network so that you can use Maretron's N2KView software to monitor and control the container. The conventional way to view NMEA 2000 information is to directly connect to the ship's NMEA 2000 network display (such as Maretron black box (MBB200C) and Maretron touch screen (TSM800C, TSM1330C)), but with IPG100, you are not limited to directly connected displays. With IPG100, you can use any device running N2KView software to monitor and control the vessel from the ship or shore. IPG100 has NMEA 2000 and Ethernet data ports, which are used to exchange information between the onboard NMEA 2000 network and devices that support Internet Protocol (IP) using conventional technologies (such as routers, switches, and wireless modems). Once enabled, IPG100 will automatically connect to Maretrons Cloud Services, which allows you to connect to the ship remotely via the Internet. This allows you to follow your boat anytime, anywhere. Data Sheet User Manual (pdf) User Manual (html*) Documents marked as html* may be translated into other languages ​​(preferably viewed in Internet Explorer).
SKU: NVN-41199
MPN: IPG100-01
UPC: 873804003061
