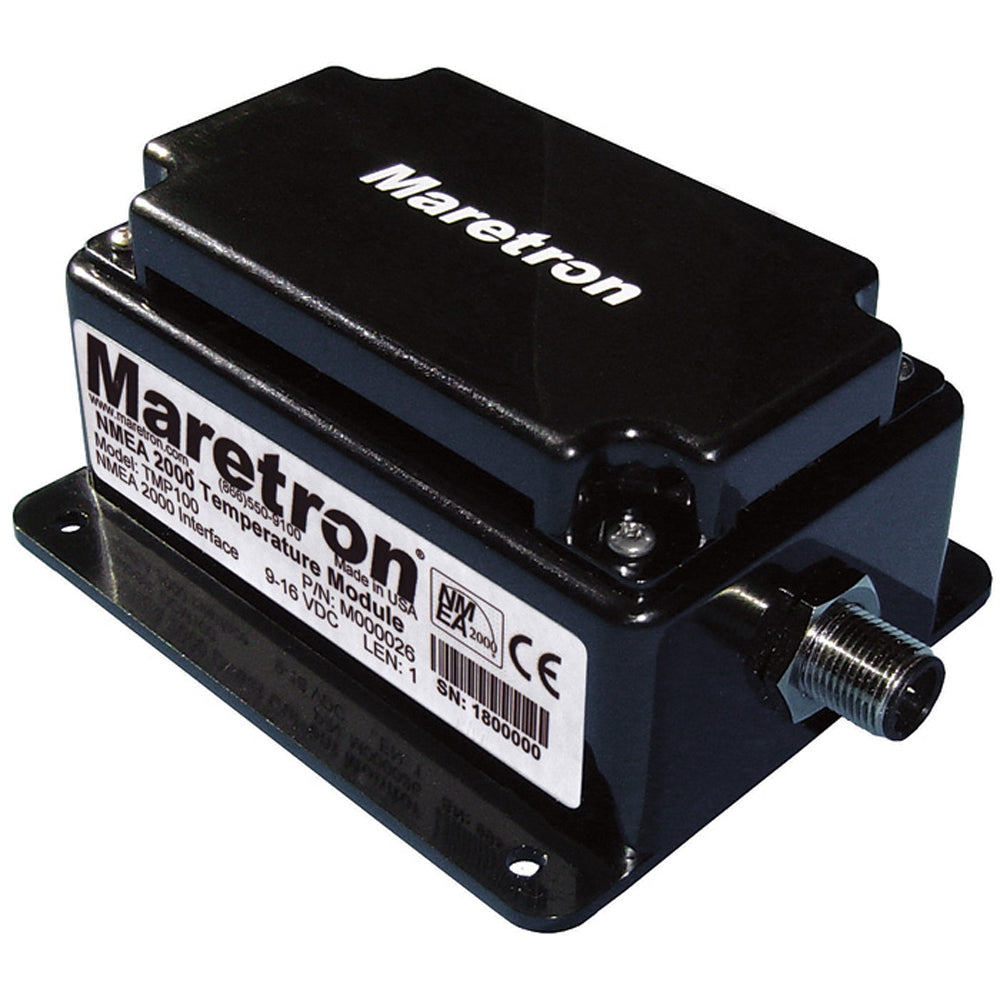

Maretron TMP100 Temperature Module

Maretron's TMP100 measures the Temperature for up to 6 Temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high Temperature thermocouple probes. Optional thermistor probes (-20°C to 80°C or -4°F to 176°F) cover a wide range of applications including cabin air Temperature, engine room air Temperature, refrigerator/freezer Temperature, under bolt Temperature (inverters, charges, pumps, motors, etc.), tank Temperatures (live well bait, hot water, etc.), and air duct Temperatures. The optional thermocouple probes (0°C to 900°C or 32° to 1652°F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.

Best of all, the TMP100 is NMEA 2000 certified so you can view any and all temperature information anywhere on the vessel using a compatible NMEA 2000 display. The TMP100 is a key component of Maretron's N2KView vessel monitoring and control system.

Maretron TMP10001 Attributes

Maretron's TMP100 measures the temperature for up to 6 temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high temperature thermocouple probes. Optional thermistor probes (-20 deg. C to 80 deg. C or -4 deg. F to 176 deg. F) cover a wide range of applications including cabin air temperature, engine room air temperature, refrigerator/freezer temperature, under bolt temperature (inverters, charges, pumps, motors, etc), tank temperatures (live well bait, hot water, etc) and air duct temperatures. The optimal thermocouple probes (0 deg. C to 900 deg. C or 32 deg. F to 1652 deg. F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.

Maretrons TMP100 can measure the temperature of up to 6 temperature probes and report the information through the NMEA 2000 network. TMP100 supports up to 4 thermistor probes...

• Six external temperature probes are measured and broadcast Over NMEA 2000 network
• Four channels for thermistor probes and two channels for high temperature thermocouple probes
• Wide variety of applications supported with optional temperature probes

Optional Temperature Probes:

• Ambient Air Temperature Probe (-20°C to 80°C or -4°F to 176°F)
• Ring Terminal Probe (-20°C to 80°C or -4°F to 176°F)
• Immersion Probe for Tanks or Plenums (-20°C to 80°C or -4°F to 176°F)
• Exhaust Gas Temperature Probe (0°C to 900°C or 32° to 1652°F)

Applications:

• Cabin temperature
• Engine room temperature
• Under bolt temperature (Inverters, chargers, pumps, etc.)
• Refrigerator / freezer temperature
• Tank temperatures (Live well bait, hot water, etc.)
• Air duct temperature
• Exhaust gas temperature

Electrical:

• Number of Thermistor Channels: 4
• Number of Thermocouple Channels: 2
• Measurement Range – Thermistor: -20°C to 80°C (-4°F to 176°F) (With supplied thermistor probe)
• Measurement Accuracy – Thermistor: ± 2°C (± 3.6°F) (With supplied thermistor probe)
• Measurement Range – Thermocouple: 0°C to 900°C (32°F to 1652°F) (With supplied thermocouple probe)
• Measurement Accuracy – Thermocouple: ± 2°C (± 3.6°F) (With supplied thermocouple probe)
• Operating Voltage: 9 to 32 Volts (DC Voltage)
• Power Consumption: 100 mA (NMEA 2000 Interface)
• Load Equivalence Number (LEN): 2 (NMEA 2000 Spec. [1LEN = 50 mA])
• Reverse Battery Protection: Yes (Indefinitely)
• Load Dump Protection: Yes (Energy Rated per SAE J1113)

SKU: NVN-35196
MPN: TMP100-01
UPC: 873804000220
