Maretron Micro Double-Ended Cordset - 8M

SKU: 33360 · UPC: 873804001586 · MPN: CM-CG1-CF-08.0

★★★★★ 4.7 · 0 reviews

Authorized dealer13% off

$56.39

$65.00Save $8.61

or 4 payments of $14.09 with Affirm

In stock — Ships today

SAME-DAY SHIPPING · 14:23 EST

Order in time, ships today

Ships from your nearest warehouse. UPS Ground 2–4 business days.

Free shipping

Orders $500 or more

Free returns

Within 30 days

Same day shipping

Order before 3 PM (EST)

Ask anything

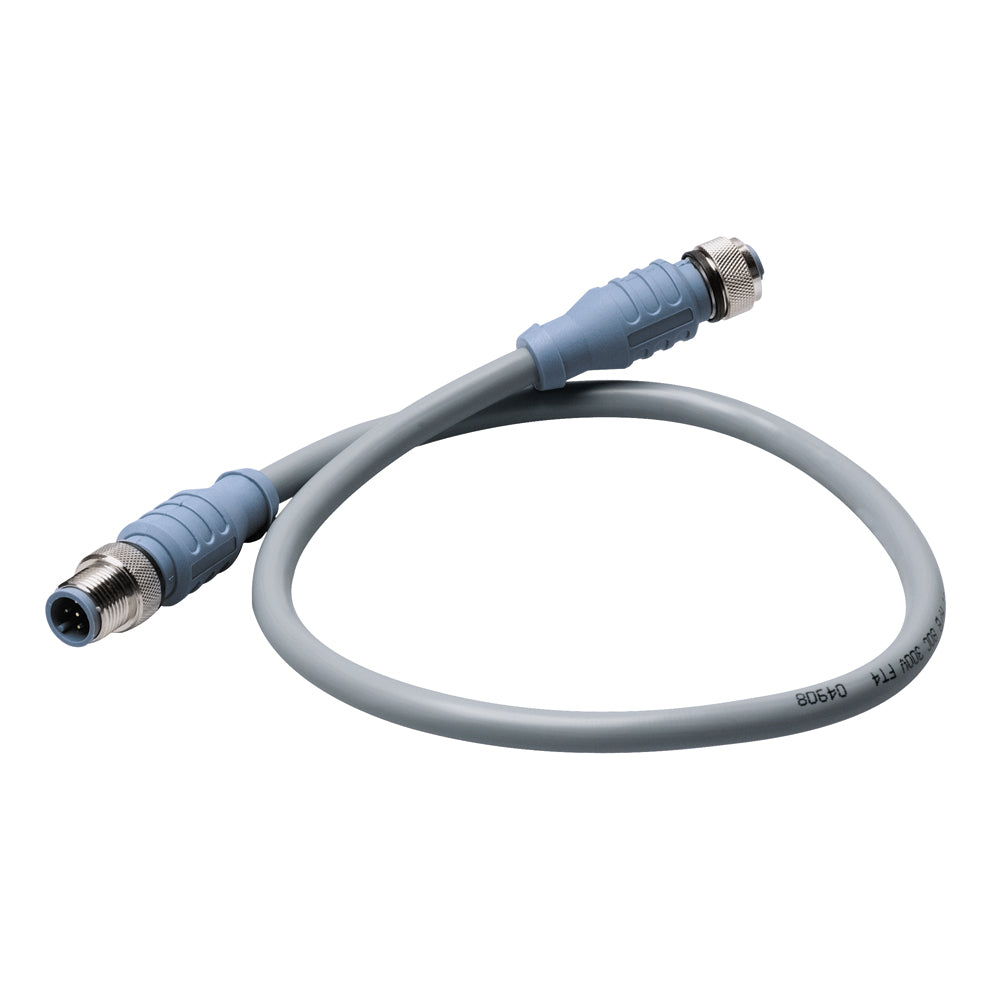

Maretron Micro Double-Ended Cordset - 8M — Product description

Micro Double-Ended Cordset - M to F - 8m (gray) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

Maretron CMCG1CF080 Attributes

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59?Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V
Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4

NMEA: NMEA 2000 Approved

Male to female. The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. it will ...

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59â€

ELECTRICAL:

Current Rating: 4.0 Amps
Voltage Rating: 250 V
CABLE Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

ENVIRONMENTAL:

Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40°C to 80°C to (-40°F to 176°F)

APPROVALS:

(Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC 61162-3

SKU: NVN-33360
MPN: CM-CG1-CF-08.0
UPC: 873804001586
