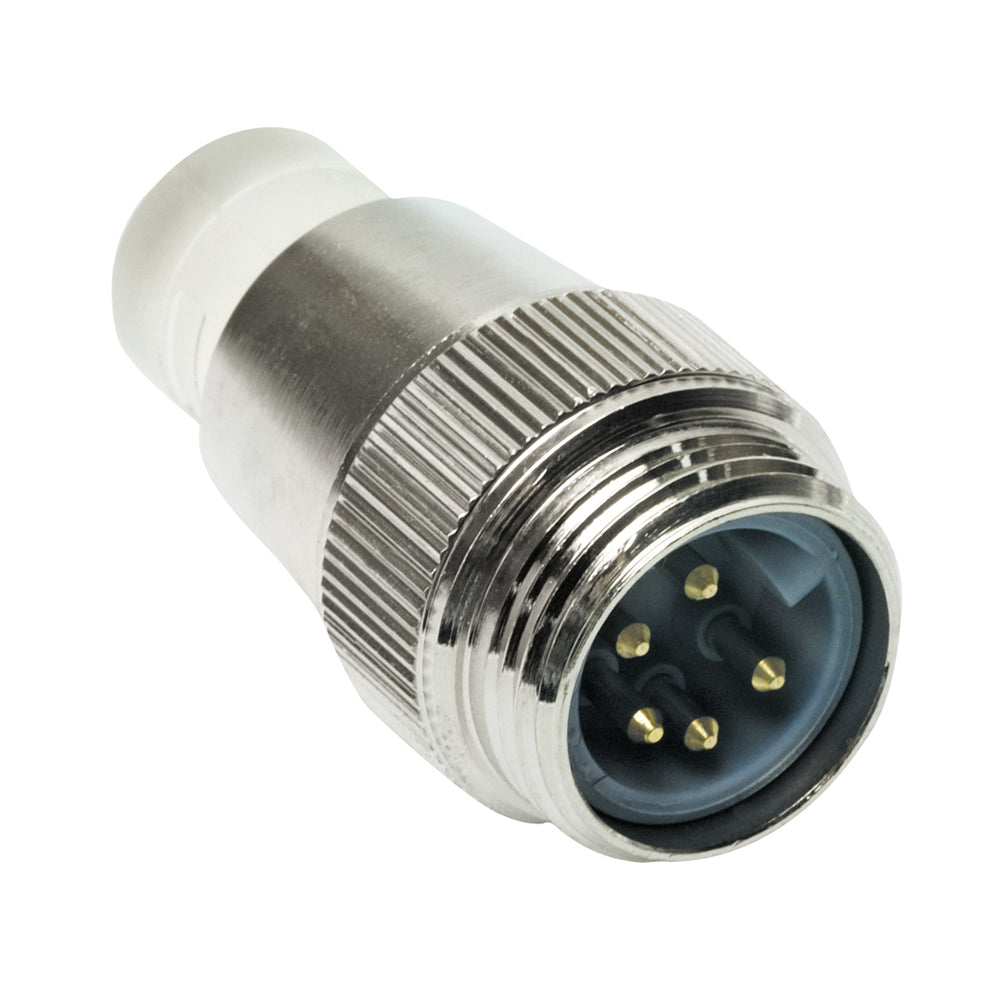

Maretron Mini Termination Resistor w/LED - Male

SKU: 31820 · UPC: 873804002361 · MPN: TRL-NM

★★★★★ 4.7 · 0 reviews

Authorized dealer11% off

$30.99

$35.00Save $4.01

or 4 payments of $7.74 with Affirm

In stock — Ships today

SAME-DAY SHIPPING · 14:23 EST

Order in time, ships today

Ships from your nearest warehouse. UPS Ground 2–4 business days.

Free shipping

Orders $500 or more

Free returns

Within 30 days

Same day shipping

Order before 3 PM (EST)

Ask anything

Maretron Mini Termination Resistor w/LED - Male — Product description

Same as Mini Termination Resistors, but Diagnostic versions indicate, via LED, correct polarity at a glance to ensure power connections have been made properly. Prevents signal reflection.

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.

Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly

Screw connector for positive connnection

Termination resistors are used to terminate both ends of the trunk line

Terminating resistors are required on the NMEA 2000 network and placed at both ends of the network trunk. Like a double-ended wire set, the termination resistance is...

Molded Body Mat/Color: Thermoplastic PUR/Clear
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

Rated Voltage: 300 V DC
Internal Resistor: 120 Ohms (1/2 W)
Voltage Monitoring (Bus Power): Green-Correct Polarity, Red-Reversed Polarity

ENVIRONMENTAL:

Protection Class: IEC IP67, NEMA 1,3,4,6, 13
Temperature Rating: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

NMEA: NMEA 2000 Approved
IEC: IEC 61162-3

SKU: NVN-31820
MPN: TRL-NM
UPC: 873804002361
