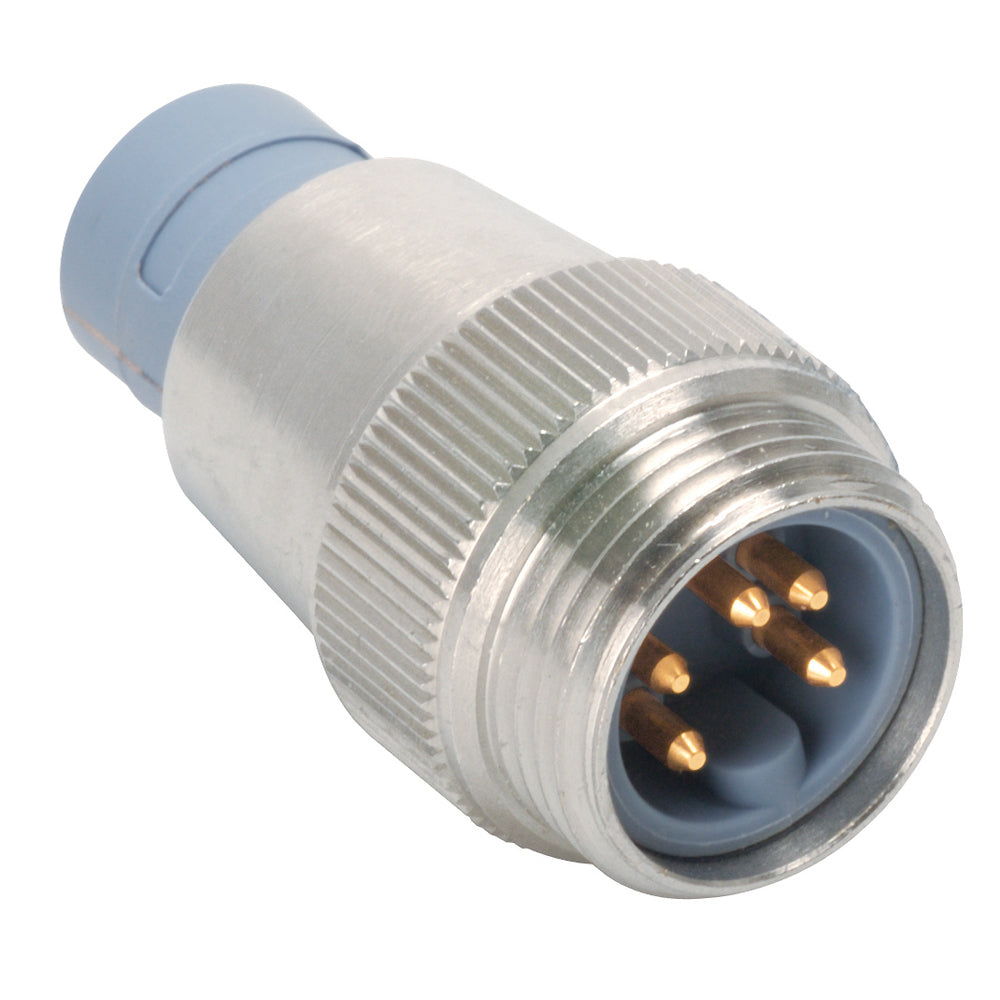

Maretron Mini Termination Resistor - Male
SKU: 31818 · UPC: 786788831370 · MPN: TR-NM
★★★★★
4.7 · 0 reviews
Authorized dealer10% off
$13.49
$15.00Save $1.51
or 4 payments of $3.37 with Affirm
In stock — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$13.49
02 · Overview
Maretron Mini Termination Resistor - Male — Product description
Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Termination resistors are waterproof. Prevents signal reflection. Screw connector for positive connection.
Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.
Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly
Screw connector for positive connnection
Termination resistors are used to terminate both ends of the trunk line
Terminating resistors are required on the NMEA 2000 network and placed at both ends of the network trunk. Like a double-ended wire set, the termination resistance is...
SKU: NVN-31818
MPN: TR-NM
UPC: 786788831370
Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.
Terminating resistors are required on the NMEA 2000 network and placed at both ends of the network trunk. Like a double-ended wire set, the termination resistance is...
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
- Rated Voltage: 300 V DC
- Internal Resistor: 120 Ohms (1/2 W)
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6, 13
- Temperature Rating: -40°C to 80°C (-40°F to 176°F)
APPROVALS:
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
SKU: NVN-31818
MPN: TR-NM
UPC: 786788831370
03 · The numbers
Technical specifications
| Brand | Maretron |
| Model | Maretron Mini Termination Resistor - Male |
| SKU / MFR# | 31818 |
