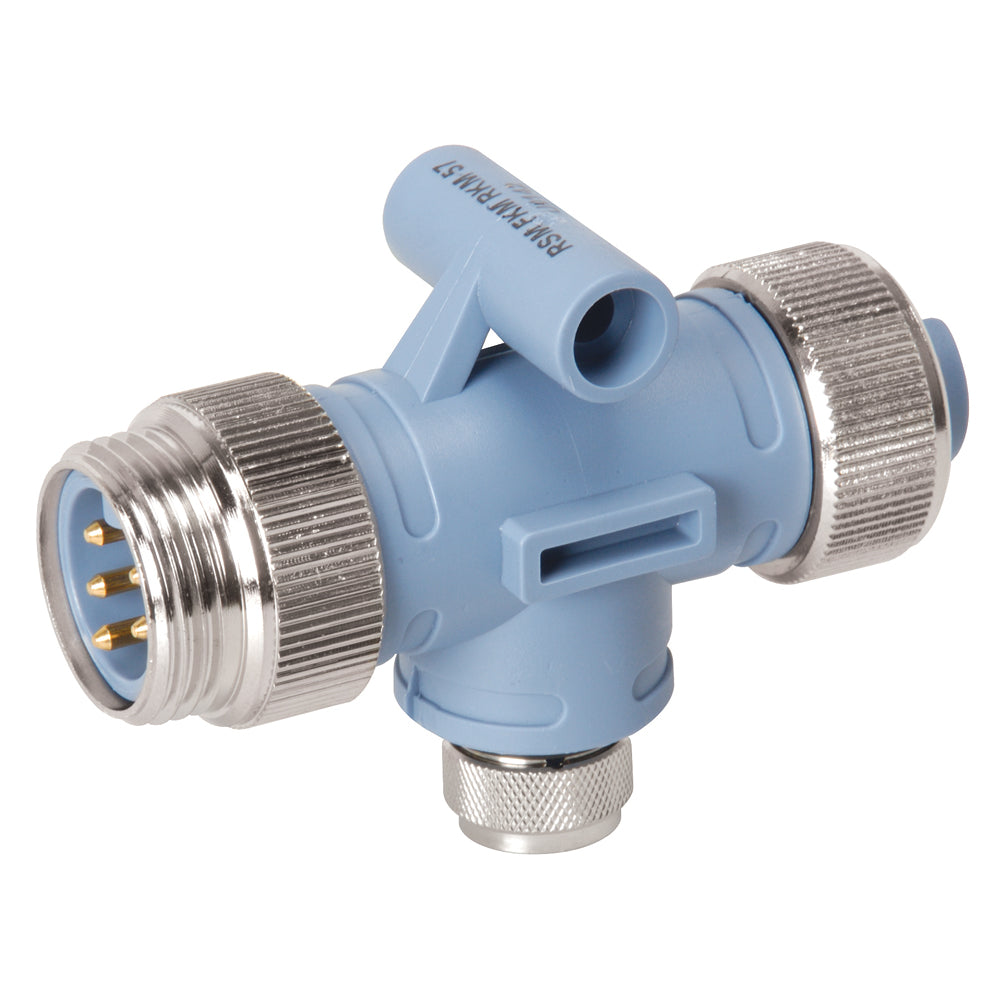

Maretron Mini/Micro Tee

This Tee Reducer is used to tap into the Mini trunk line for adding a Micro drop connection. Mini male/ Mini female/ Micro Female. Gold Contacts for greatest reliability. Keyed connectors for error-free connections.

Maretron NMCFNF Attributes

Mini/Micro Tee

A Tee is used to tap into the trunk line for adding a drop connection. A Mini/Micro Tee has Mini connectors for the trunk lines and a Micro connector for the drop line.

Gold contacts for greatest reliability

Keyed connectors for error-free connections

Mini Male (left)
Micro Female (bottom)
Micro Female (right)

Mini/micro T-shirts-T-shirts are used to insert trunk lines to add branch connections. The Mini/Micro Tee has Mini connectors for the backbone and for...

• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Current: 4.0 Amps (Micro) 9.0 Amps (Mini)
• Rated Voltage: 250 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Range: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

• NMEA: NMEA 2000 APPROVED
• IEC: IEC 61162-3

SKU: NVN-31815
MPN: NM-CF-NF
UPC: 873804002316
