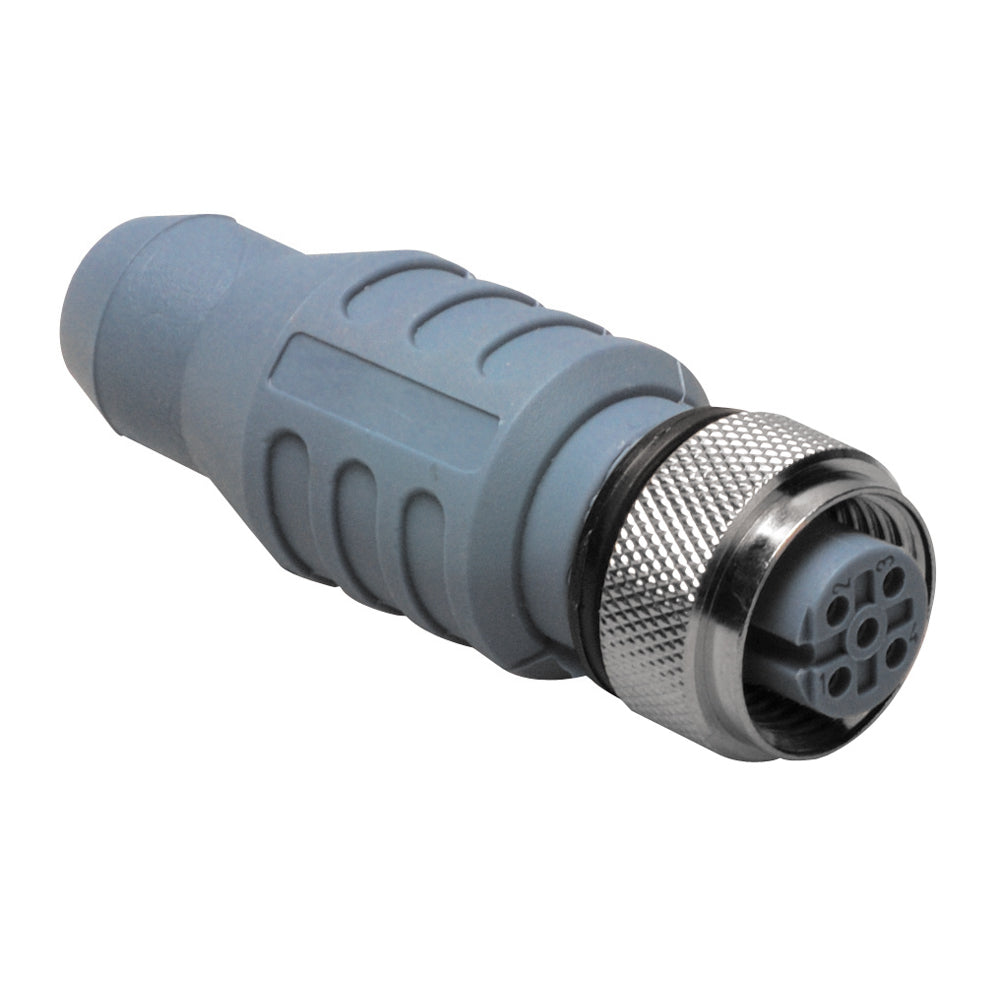

Maretron Micro Termination Resistor - Female

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Termination resistors are waterproof. Prevents signal reflection.

Micro Termination Resistors

Termination Resistors are required on a NMEA 2000® network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.

Screw terminal connector for positive connections

Termination resistors are used to terminate both ends of the trunk line

Vertical 0Deg short tube. Medium and short rotatable base for poles with arc butt joints. It has a 2 inch outer diameter x 6-1/2 inch long tube. There is no doubt that our rotatable bottom bar bracket is...

• Screw terminal connector for positive connections
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Voltage: 10-30 V DC
• Internal Resistor: 120 Ohms (1/2 W)

ENVIRONMENTAL:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• APPROVALS NMEA: NMEA 2000 APPROVED
• IEC: IEC 61162-3

SKU: NVN-31794
MPN: TR-CF
UPC: 873804001661
