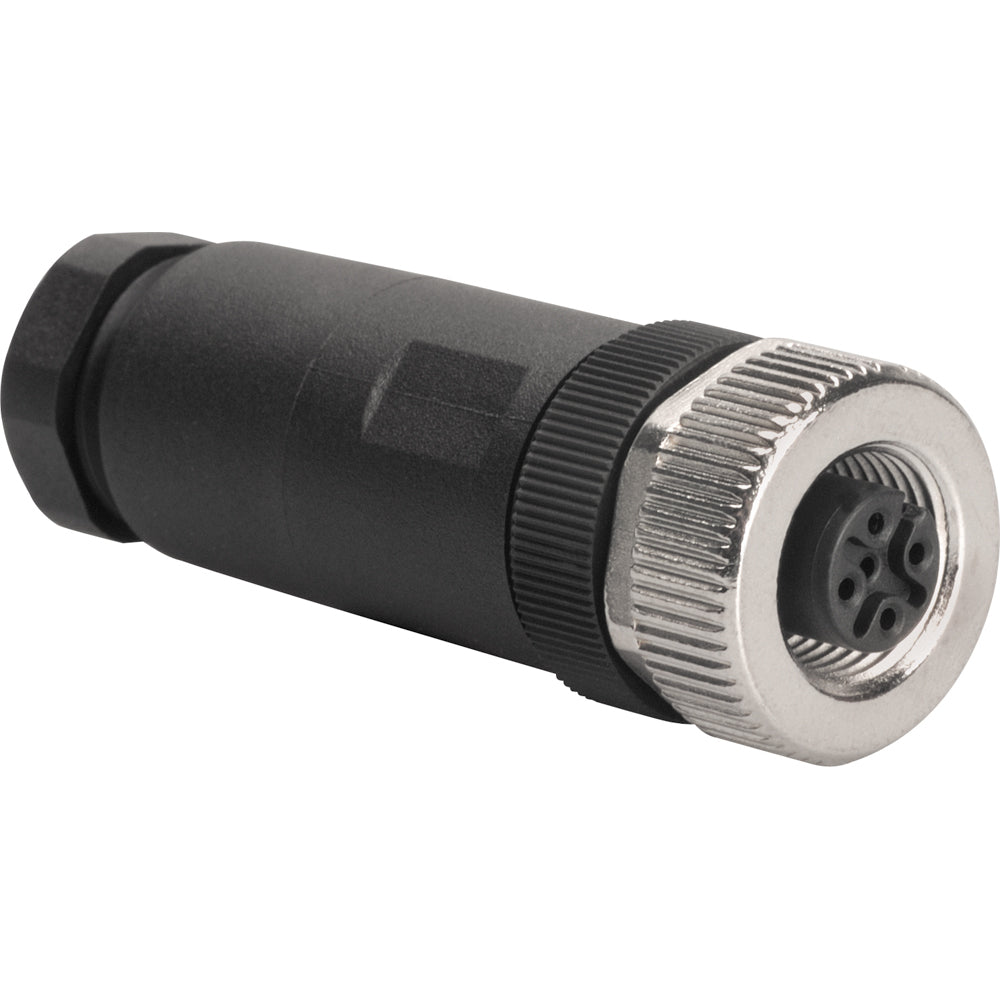

Maretron Micro Field-Attachable Connector - Female
SKU: 31786 · UPC: 873804001685 · MPN: FA-CF-ST
★★★★★
4.7 · 0 reviews
Authorized dealer11% off
$26.49
$30.00Save $3.51
or 4 payments of $6.62 with Affirm
In stock — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$26.49
02 · Overview
Maretron Micro Field-Attachable Connector - Female — Product description
Field-attachable connectors allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.
Micro Field-Attachable Connector
Field-attachable connectors allows you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.
Color-coded screw terminals make for error-free field installation
Rugged housing material designed to withstand harsh marine environments
Mini field connectors Field connectors allow you to make field connections with bulk cables. The color-coded screw terminals match the individual wires...
SKU: NVN-31786
MPN: FA-CF-ST
UPC: 873804001685
Maretron FACFST Attributes
Micro Field-Attachable Connector
Field-attachable connectors allows you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.
Mini field connectors Field connectors allow you to make field connections with bulk cables. The color-coded screw terminals match the individual wires...
- Housing Mat/Plating: Nylon/Black
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Maximum Wire Size: 18 (1.02mm) AWG
- Cable Grip Range: 6-8 mm
ELECTRICAL:
- Rated Current: 4.0 Amps
- Rated Voltage: 30 V AC/ 36 V DC
ENVIRONMENTAL:
- Protection Class: IEC IP67
- Temperature Range: -40°c TO 85°C (-40°F to 185°F)
APPROVALS:
- NMEA: NMEA 2000 Approved
- IEC: IEC-61162-3
SKU: NVN-31786
MPN: FA-CF-ST
UPC: 873804001685
