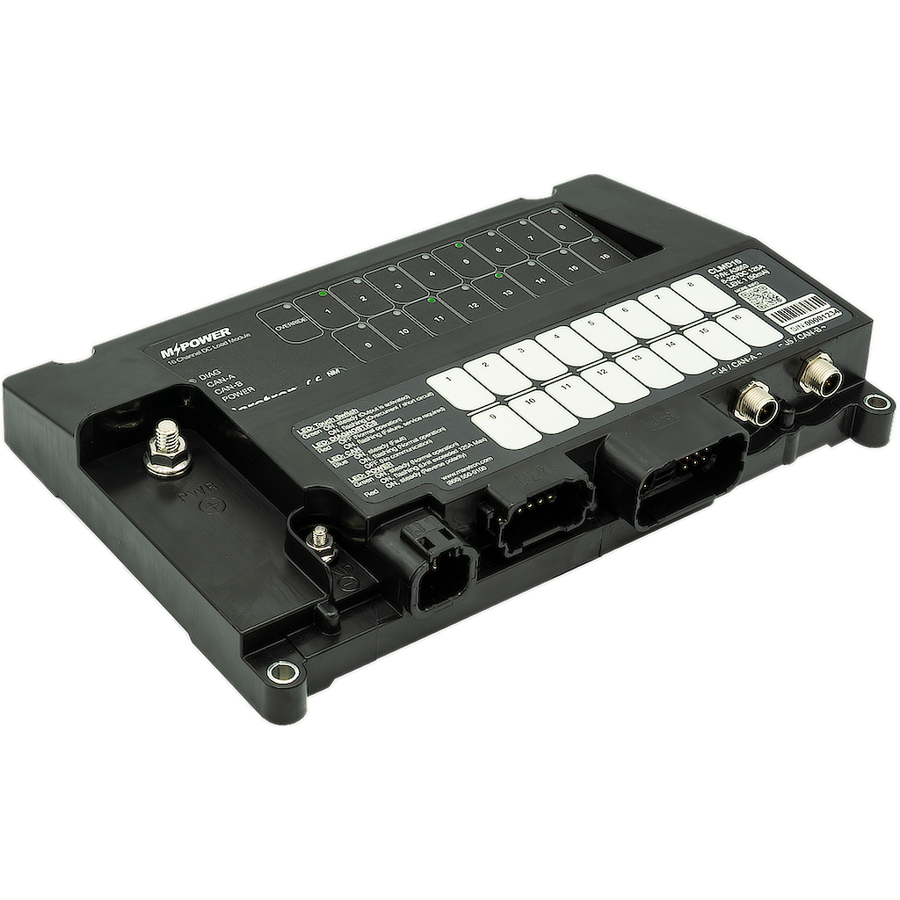

Maretron CLMD16-R - DC Load Module, 16 Channel, NMEA 2000®, with J1, J2, J3 Connectors
Maretron CLMD16-R - DC Load Module, 16 Channel, NMEA 2000®, with J1, J2, J3 Connectors — Product description
The new MPower Series by Maretron replaces standard mechanical circuit breakers and switches with state-of-the-art digital power distribution. Customers looking to achieve the power and convenience of advanced home automation for their boats will appreciate MPowers seamless, reliable operation as well as simple and cost-effective installation.
With larger breakers and more circuits, the MPower CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps and twelve breakers handle a maximum of 12 amps with a total current capacity of 125 Amps. Additionally, circuits can be paralleled. The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc.
The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels. The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.
* CLMD16 requires configuration using Maretron USB100 or IPG100 plus PC running N2KAnalyzer V3
SKU: NVN-3001160
MPN: CLMD16-R
UPC:
Technical specifications
| Brand | Maretron |
| Model | Maretron CLMD16-R - DC Load Module, 16 Channel, NMEA 2000®, with J1, J2, J3 Connectors |
| SKU / MFR# | 3001160 |
