Maretron High-Temperature Smoke/Heat Detector Kit
Maretron High-Temperature Smoke/Heat Detector Kit — Product description
The Orbis Marine Optical /Heat Multisensor Detector is recognized as a good detector for general use but is additionally more sensitive to fast burning, flaming fires - including liquid fires - than optical detectors. They can be readily used instead of optical detectors but should be used as the detector of choice for areas where the fire risk is likely to include heat at an early stage in the development of the fire. The Multisensor detector has two sensors, one for smoke and one for heat with the alarm decision derived from either sensor or combination of both.
Maretron SH003 Attributes
- Diameter: 3.96 Inch
- Length: Not Applicable
- Width: Not Applicable
- Voltage: 24 Volt
- With Reset Button: Yes
Maretron SH003 Features & Benefits
- Responds Well To Fast-Burning, Flaming Fires
- Transient Rejection Algorithms Reduce False Alarms
- Automatic Drift Compensation With DirtAlert™, A Yellow Flashing LED, To Easily Identify Dirty Detectors
- Red Flashing LED At Start Up Confirms The Device Is Operating
- FasTest™ Takes Just Four Seconds To Test And Confirm Detectors Are Functioning Correctly
- No Supplier Warranty
Maretron SH003 Installation Instructions
High-Temperature Smoke/Heat Detector Kit
Maretron's High-Temperature Smoke/Heat Detector Kit is an intelligent NMEA 2000® networked solution, designed to alert you of unusually fast rises in temperature or smoke.
This kit contains a smoke/heat detector, auxiliary relay, and sounder that are designed to work in high-temperature marine environments, such as engine rooms. The components in this kit are rated from -25°C (-13°F) to +70°C (158°F). This system is designed to work with a 24 VDC power supply.
Features:

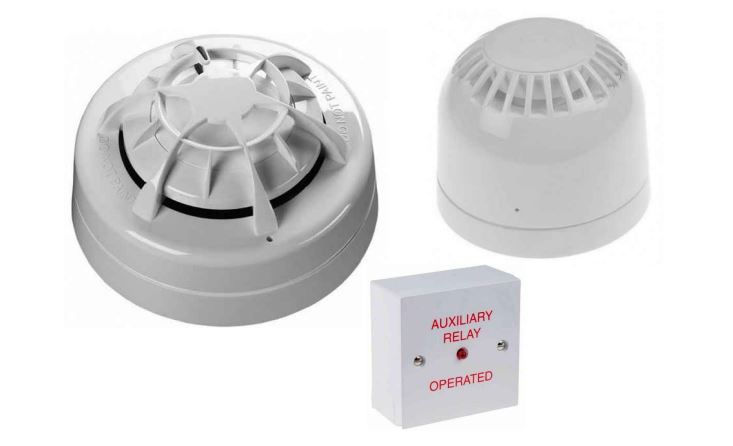

- Kit contains a smoke/heat detector, auxiliary relay, and sounder
- Designed to work in high-temperature marine environments, such as engine rooms
- Connects to an NMEA 2000® network via a Maretron SIM100 Switch Indicator Module (sold separately)
- Rated from -25°C (-13°F) to +70°C (158°F)
- For use with a 24 Volt DC power supply
SKU: NVN-93697
MPN: SH-003
UPC: 873804004334
Technical specifications
| Brand | Maretron |
| Model | Maretron High-Temperature Smoke/Heat Detector Kit |
| SKU / MFR# | 93697 |
