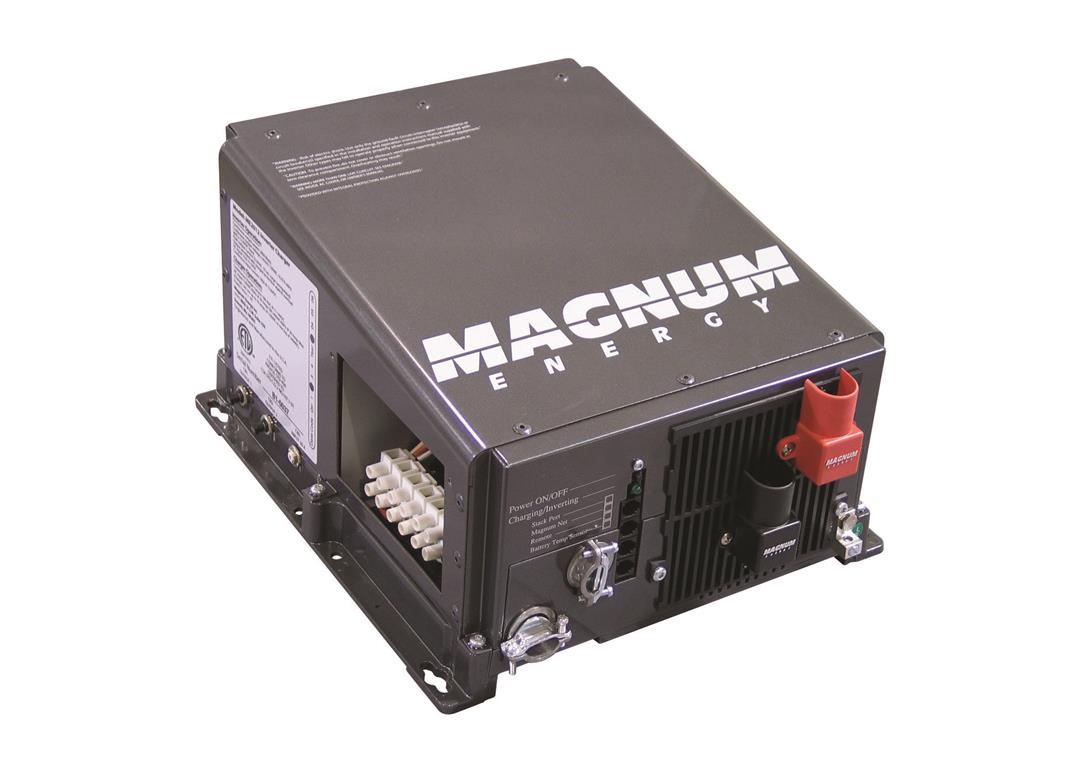

Magnum Energy ME2012U Power Inverter

The ME Series Inverter or Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.

Magnum Energy ME2012U Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 9-16 Volt DC
• Continuous Output Power (W): 2000 Watt
• Peak Output Power (W): 3700 Watt
• Ampere Rating: 100 Amp
• Efficiency: 95 Percent
• Length (IN): 13-3/4 Inch
• Width (IN): 12.65 Inch
• Height (IN): 8 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: Yes
• With Battery Cables: No
• With Built-In Charger: Yes
• With Fuse: No

Magnum Energy ME2012U Features & Benefits

• Safe And Reliable
• Power Factor Corrected, 3-Step, High Output, Temperature Compensated Charger
• Versatile Mounting
• Expanded Transfer Relay
• Limited 3 Year Warranty

Magnum Energy ME2012U Installation Instructions

• 64-0002 D Owner Manual ME Series.pdf

Magnum Energy ME2012U Technical Bulletins

• ME-series_datasheet_64-0100_RevK_web.pdf

SKU: NVN-2005654
MPN: ME2012-U
UPC: 00892608001028
