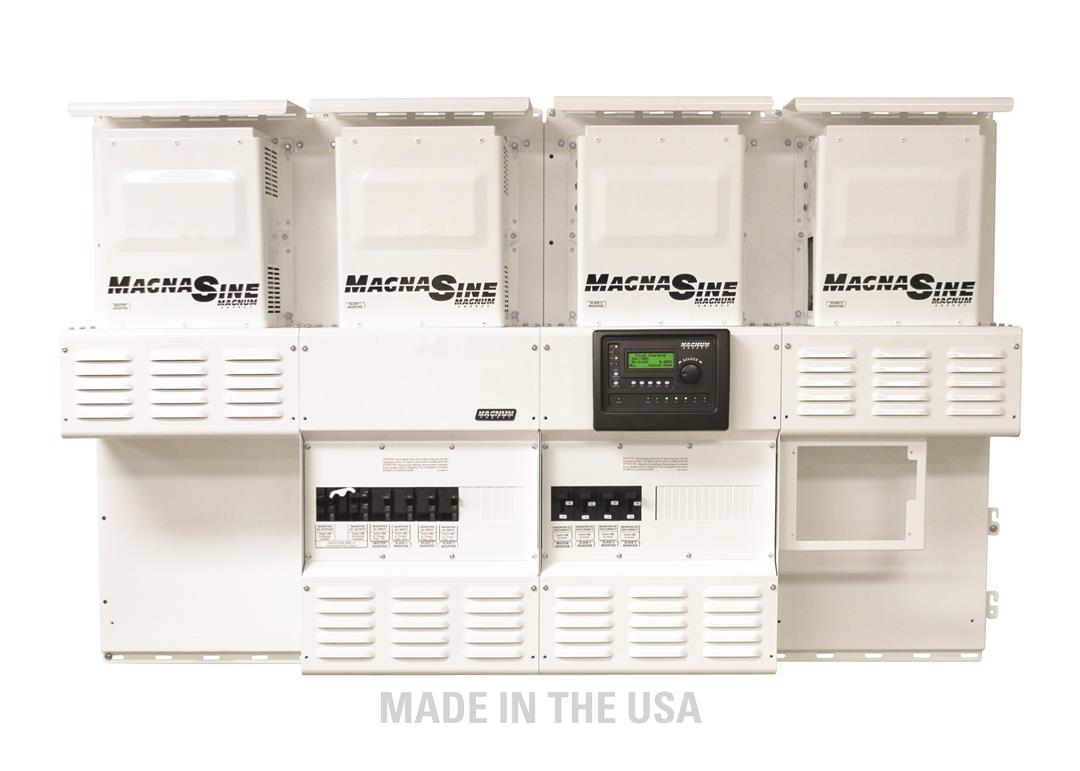

Magnum Energy MPDH17530D Power Inverter Panel Box

The MP enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance into easy-to-install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and used with the optional Router, the MP will allow you to easily set up, monitor, and operate up to four inverter/chargers together (must be identical models to parallel stack).

Magnum Energy MPDH17530D Attributes

• Compatibility: Two To Four MS-PAE Series Inverters Stacked In A Parallel Configuration
• Width (IN): 23 Inch
• Height (IN): 32 Inch
• Depth (IN): 6-1/2 Inch
• Color: White
• With AC Input Protection: Yes
• Includes Breakers: Yes
• Includes DC Shunt: Yes
• Includes Inverter Hood: No

Magnum Energy MPDH17530D Features & Benefits

• Designed To Accommodate Two To Four MS-PAE Series Inverters Stacked In A Parallel Configuration
• Expandable
• Labor Saving: Panel Is Pre-Wired For Fast Installation, Saving Labor Costs
• DC Load Breakers: Fits Either Din Rail Or Back-Mount DC Load Breakers
• Convenient Knockouts: Knockouts On The Side Of The Enclosure Are Compatible With Most Charge Controllers
• Easy Installation
• Limited 5 Year Warranty

SKU: NVN-2005196
MPN: MPDH175-30D
UPC:
