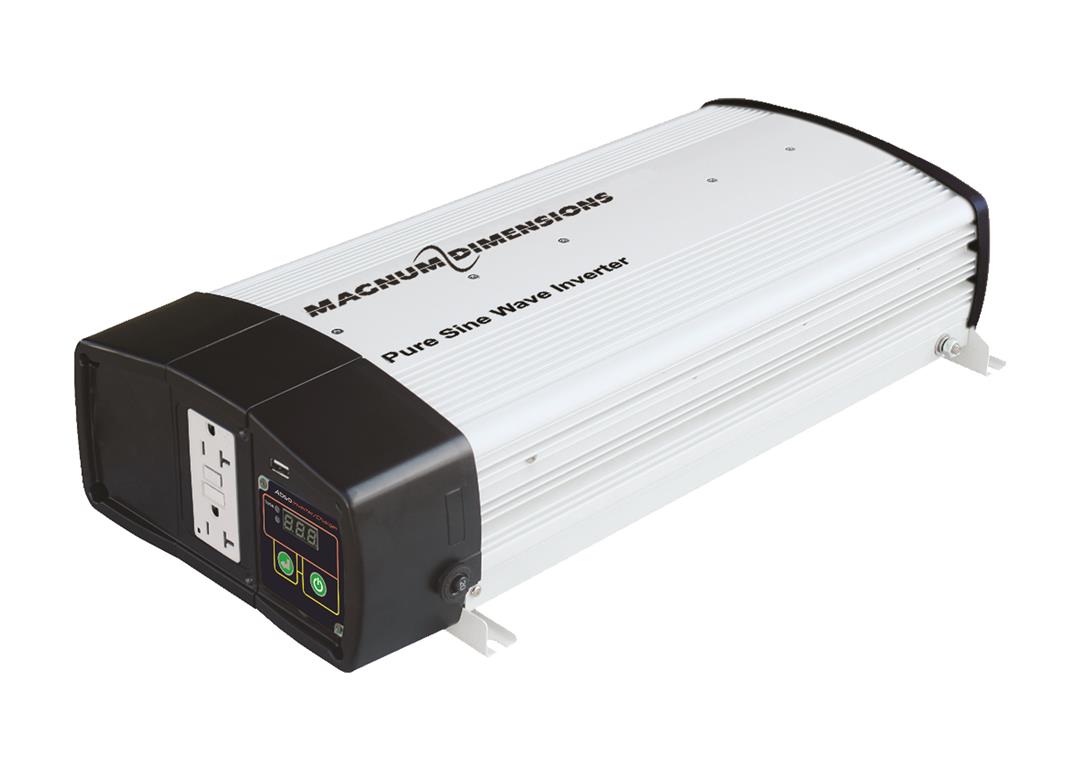

Magnum Energy CSW2012X Power Inverter

The Magnum-Dimensions CSW Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate. The CSW will provide you with reliable AC power for trouble-free use.

Magnum Energy CSW2012X Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 2000 Watt
• Peak Output Power (W): 4000 Watt
• Ampere Rating: 16.7 Amp
• Efficiency: 90 Percent
• Length (IN): 16-1/2 Inch
• Width (IN): 9.1 Inch
• Height (IN): 4.3 Inch
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No

Magnum Energy CSW2012X Features & Benefits

• Compact And Lightweight – The CSW Provides Pure Sine Wave Power From A Small Footprint Designed To Fit In Tight Vehicle And Marine Spaces
• At-A-Glance Status – The Inverter’s Status Can Be Determined At A Glance With The Easy-To-Read LED Light
• Digital Display – The Alphanumeric Display Shows The Inverter’s Battery Voltage, Total AC Output Power, Along With Additional Operation Codes
• USB Port – Power And Charge Your USB-Enabled Device With The Available USB Port
• GFCI AC Outlet – Plug In Two Pieces Of Equipment Directly To The CSW And Know That The GFCI Outlet Will Quickly Stop The Flow Of Electricity Should A Ground Fault Occur
• The CSW2012-X Automatically Switches Between Shore Power And Inverter/Battery Power
• Limited 1 Year Warranty

Magnum Energy CSW2012X Installation Instructions

• 64-0074 Rev B (CSW2012-X).pdf

Magnum Energy CSW2012X Technical Bulletins

• CSW-series_datasheet_64-0665_RevD_web_2.pdf
• Addendum for use with CSW2012-HX_64-0074-1 Rev A.pdf
• Addendum for use with CSW2012-HX_64-0074-1 Rev A.pdf

SKU: NVN-2001558
MPN: CSW2012-X
UPC: 892608001547
