Magnum ME-RC50 Remote Panel With 50' Cable

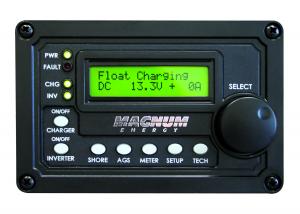

The ME-RC is designed to be simple to use while offering multiple functions in one place. The large LCD screen and at-a-glance LEDs display the inverter/charger status in a straightforward way. Soft keys give simple access to menus and a rotary encoder knob makes it easy to quickly scroll through menus and select settings.

Magnum Energy MERC50L Attributes

• Compatibility: Monitor And Operate The Inverter And Charger From Remote Location

Magnum Energy MERC50L Features & Benefits

• Large LCD Screen
• Quick Access Menus Via A Dial.
• Programmable Readings.
• Non-Volatile Memory.
• Basic Control Of Magnum Energy Brand Inverter/Chargers.
• Working With The ME-AGS-N Auto Gen Start, The ME-RC Provides Basic Control Of Generators.
• Battery Monitoring Control When Paired With The ME-BMK
• Limited 1 Year Warranty

The Magnum Remote is designed to be simple to use while offering full menu features for set-up.

Easy-to-read: The large LCD screen and at-a-glance LEDs display the inverter/charger status in a straightforward way. Soft keys give simple access to menus and a rotary encoder knob makes it easy to quickly scroll through menus and select settings.

Non-volatile memory: Critical settings are saved even if the power is disconnected.

No cross platform confusion: The ME-RC remote is the same remote used on all Magnum inverter/charger models in the ME, MS, MS-AE, RD, MM, and the MMS Series lines.

Multiple functional settings: The Remote offers multiple functions in one place, including: inverter on/off, charger on/off, shore power breaker settings, AGS control, meter button, setup, and technical menus.

Adjustable settings include shore power input from 5 to 60 amps; AGS settings for voltage, temperature, quiet time, clock, and status; inverter and charger settings for search watts, battery bank size, battery type, charge rate, VAC dropout, contrast, and power saver; and tech settings for battery temperature, transformer and internal FETs, software revisions, and factory reset.

A standard 50? 4-wire, twisted pair cable allows for plenty of room to display the Remote with ease.

Features and Settings

Two-line LCD display screen Yes

Adjustable search mode 5 to 50 watts in 5 watt increments

Low battery cutout settings 9 to 12.2 VDC (12 volt), 18 to 24.4 VDC (24 volt), and 36 to 48.8 VDC (48 volt)

Selectable battery bank sizes 200 to 2500 amp-hours in 10 amp-hour increments

Selectable battery charge profile Flooded, AGM1, AGM2, and GEL type chemistries. Also includes custom voltage adjusment

Adjustable charge rate 0 to 100% in 10% increments

Adjustable VAC dropout 60 to 105 VAC

Adjustable LCD contrast Yes

Factory reset Resets to factory defaults (tech menu)

The remote control has an easy-to-read LCD screen and displays the status of the inverter/charger at a glance through LED indicators. Use the soft keys to easily access the menu and rotary menu.
SKU: NVN-1001068
MPN: ME-RC50
UPC: 892608001165
