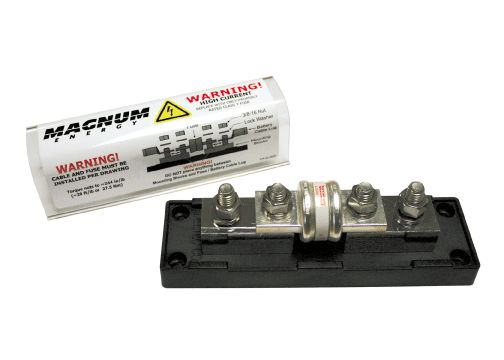

Magnum 400A Class T Fuse Kit

Magnum Energy Fuse Block assemblies are designed to provide code compliant over-current protection. They are used to protect the battery bank, inverter and cables from damage caused by short circuits and overloads. Each Fuse Block Assembly uses a fast-acting, current-limiting fuse cartridge which provides instantaneous protection in the event of a short circuit, but also employs a time delay to allow momentary current surges common in inverter applications. A rugged injection molded poly carbonate base and thermoformed ABS cover provides durability, easy installation and good looks all in a compact, cost effective package. The 125 and 200 Ampere models use an ANL type fuse and the 300 and 400 Ampere models use the Class-T fuses. Magnum fuse blocks are ideal in applications where over-current protection is required for high current components such as inverters and chargers.

Magnum Energy ME400F Attributes

• Power Rating: 400 Ampere
• Type: Slow Blow
• Fuse Type: Class T
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: Yes
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: No

Magnum Energy ME400F Features & Benefits

• Designed To Provide Code Compliant Over-Current Protection
• Used To Protect The Battery Bank, Inverter And Cables From Damage Caused By Short Circuits And Overloads
• Magnum Highly Engineered Devices Satisfy The World's Growing Need For Safety, Energy Efficiency And A Clean Environment
• Easy To Install
• No Supplier Warranty

Magnum Energy Fuse Block assemblies are designed to provide code compliant over-current protection. They are used to protect the battery bank, inverter and cables from damage caused by short circuits and overloads. Each Fuse Block Assembly uses a fast acting, current limiting fuse cartridge which provides instantaneous protection in the event of a short circuit, but also employs a time delay to allow momentary current surges common in inverter applications. A rugged injection molded poly carbonate base and thermoformed ABS cover provides durability, easy installation, and good looks all in a compact, cost effective package.

The 125 and 200 amp models use an ANL type fuse and the 300 and 400 amp models use the Class-T fuses. Magnum fuse blocks are ideal in applications where over-current protection is required for high current components such as inverters and chargers.

The Magnum 400a Class T fuse kit is brand new. The universal energy fuse box assembly is designed to provide overcurrent protection that meets the requirements of the code. They are used to protect...
SKU: NVN-1001064
MPN: ME-400F
UPC: 892608001011
