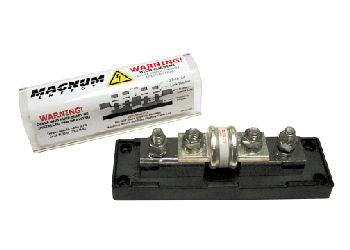

Magnum 300A Class T Fuse Kit
Magnum 300A Class T Fuse Kit — Product description
Magnum Energy Fuse Block assemblies are designed to provide code compliant over-current protection. They are used to protect the battery bank, inverter and cables from damage caused by short circuits and overloads. Each Fuse Block Assembly uses a fast acting, current limiting fuse cartridge which provides instantaneous protection in the event of a short circuit, but also employs a time delay to allow momentary current surges common in inverter applications. A rugged injection molded poly carbonate base and thermoformed ABS cover provides durability, easy installation, and good looks all in a compact, cost effective package.
The 125 and 200 amp models use an ANL type fuse and the 300 and 400 amp models use the Class-T fuses. Magnum fuse blocks are ideal in applications where over-current protection is required for high current components such as inverters and chargers.
The Magnum 300a Class T fuse kit is brand new. The universal energy fuse box assembly is designed to provide overcurrent protection that meets the requirements of the code. They are used to protect...
SKU: NVN-1001062
MPN: ME-300F
UPC: 892608001004
Technical specifications
| Brand | Magnum |
| Model | Magnum 300A Class T Fuse Kit |
| SKU / MFR# | 1001062 |
