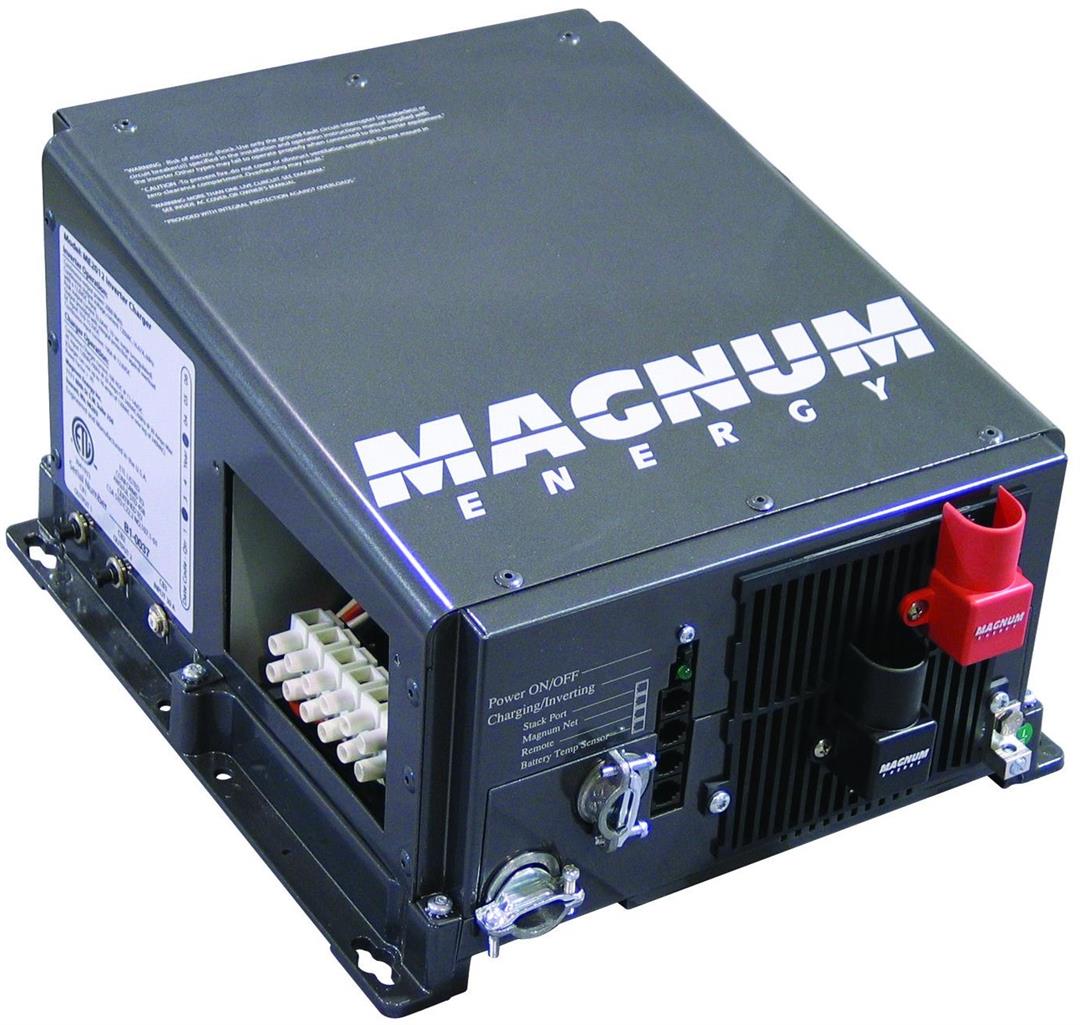

Magnum ME2512 2500W Inverter 12v W/120A PFC Charger

Magnum Energy ME2512U Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 9-16 Volt DC
• Continuous Output Power (W): 2500 Watt
• Peak Output Power (W): 5000 Watt
• Ampere Rating: 120 Amp
• Efficiency: 91 Percent
• Number Of AC Outlets: 1
• Length (IN): 8 Inch
• Width (IN): 12.65 Inch
• Height (IN): 13-3/4 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: Yes
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: Yes
• With Battery Cables: Yes
• With Built-In Charger: Yes
• With Fuse: No

Magnum Energy ME2512U Features & Benefits

• Engineered For Outstanding Performance
• Provide High-Efficiency Power At Full-Load Conditions
• Limited 2 Year Warranty

Reliable Mobile Power from Magnum Energy

The ME Series Inverter/Charger from Magnum Energy is a new generation inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.
Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable.

Easy-to-install: Install the ME Series in four easy steps: simply connect the inverter's output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter's
easy-to-reach terminal block, connect the batteries, and switch on the power.

Features

The ME Series Inverter/Charger is loaded with features:

Power Factor Corrected (PFC) Charger: The charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger - using only 15 amps per 100 amps versus 23 amps used by standard chargers.

Choices: The ME Series comes in three power models, allowing you to choose the model that is right for you.

Versatile mounting: Mount the ME Series on a shelf, bulkhead, or even upside down.

Lightweight: The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.

Multiple ports: The ME Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.

Accessible design: The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter more accessible when it needs to be.

Convenient switches: The ME Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.

Expanded transfer relay: 60 Amp transfer service is available on all models.

Buy with ease: The ME Series is backed by a three-year (36-month) limited warranty.

Accessories and Options*

Remote control: For convenient finger-tip operation, including the new one-knob? programming.

AGS module: Automatically starts and stops your generator based on temperature or battery voltage.

Inverter Specification	ME2012	ME2512	ME3112
Input battery voltage range	9 - 16 VDC	9 - 16 VDC	9 - 16 VDC
Nominal AC output voltage	120 VAC	120 VAC	120 VAC
Output frequency and accuracy	60 hz   0.1Hz	60 hz   0.1Hz	60 hz   0.1Hz
1 msec surge current (amps AC)	60	100	120
100 msec surge current (amps AC)	37	45	50
5 sec surge power (real watts)	3700	5000	6000
30 sec surge power (real watts)	3450	4500	4800
5 minute surge power (real watts)	3100	3500	3950
30 minute surge power (real watts)	2400	2900	3500
Continuous power at 45° C	2000 VA	2500 VA	3100 VA
Maximum continuous input current	266 ADC	333 ADC	413 ADC
Inverter efficiency (peak)	95%	91%	90%
Transfer time	16 msecs	16 msecs	16 msecs
Search mode ( Typical)	5 watts	5 watts	5 watts
No load ( 120 VAC output ) Typical	20 watts	23 watts	25 watts
Wave Form	Modified Sine Wave
Charger Specifications
Continuous output at 45° C	100 ADC	120 ADC	160 ADC
Charger efficiency	85%	85%	85%
Power factor	> .95	> .95	> .95
Input current at rated output (AC amps)	15	18	21
General Features and Capabilities
Transfer relay capability	2 legs at 30 A for 120 V/30 A or 240 V/60 A service
Five stage charging capability	Bulk, Absorb, Float, Equalize, and Battery Saver™
Battery temperature Compensation	Yes, 15 foot battery temp sensor standard
Internal cooling	0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
Overcorrect protection	Yes, with two overlapping circuits
Conformal coating on PCB's for corrosion protection	Yes
Over temperature protection	Yes, On Transformer, MOSFETS, and battery
Stainless steel fasteners for corrosion protection	Yes
Dual AC branch rated output breakers	On the ME2012-20B only - AC breakers in 20 amp ratings
Listings	ETL Listed to UL/cUL 458, CSA C22.2 #107.1-01
Warranty	3 Years
Environmental Specifications
Operating temperature	-20° C to +60° C (-4° F to 140° F)
Nonoperating temperature	-40° C to +70° C (-40° F to 158° F)
Operating humidity	0 to 95% RH non condensing
Physical Specifications
Dimensions (h x w x d)	13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm)
Mounting	Shelf (top or bottom up) or bulkhead (vents up)
Max operating altitude	15,000 feet
Weight	37 lb	41 lb	46 lb

"Introducing the ME Series InverterCharger. A new generation inverter designed specifically for rugged recreational vehicle use. The ME Series is powerful, easy-to-use, and best of all, cost effective. Safe and Reliable The ME Series is ETL listed to the stringent requirements of ULcUL 458, ensuring that the inverter is safe and reliable. Temperature rating to 45C. Easy-to-Install Install the ME Series with easy-to-reach terminal block, single-in single-out, dual-in, dual-out and single-in dual-out. Replaces most brands of inverterschargers on the market Efficient The sine wave charger efficiently charges your batteries even at low AC voltage, while the modified sine wave inverter keeps the cost down. Additionally, the battery temperature sensor Included works with the charger for optimum battery charging."
SKU: NVN-1001061
MPN: ME2512-U
UPC: 892608001073
