Lowrance Scout + Scout Wide Bracket f/ActiveTarget® 2
Lowrance Scout + Scout Wide Bracket f/ActiveTarget® 2 — Product description

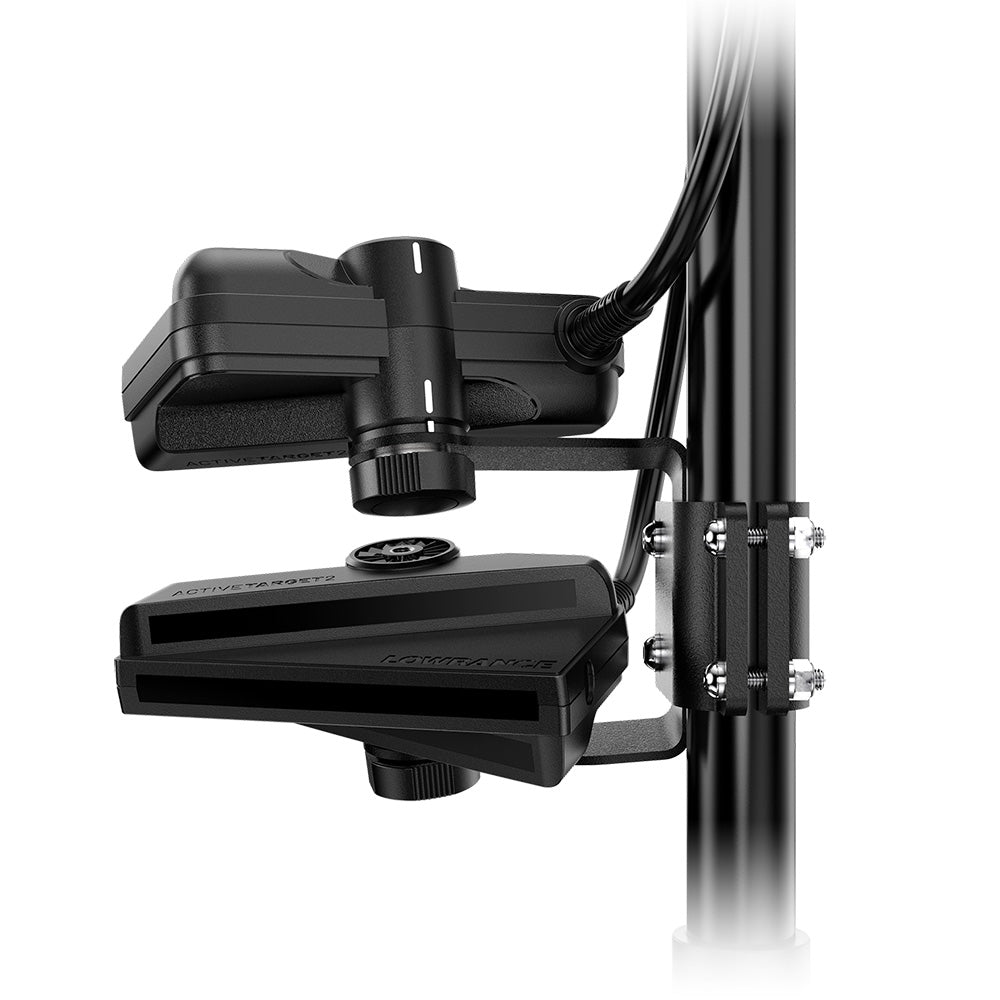

Unlock a broader horizon beneath the waves with the Scout + Scout Wide Bracket designed specifically for ActiveTarget® 2. Anglers who demand the ultimate edge in live sonar imaging know that a standard Scout view is powerful, but combining two transducers elevates your underwater awareness to new levels. This sturdy, non-adjustable bracket arm positions dual ActiveTarget® 2 transducers at precise Scout angles, blending their feeds into a seamless, ultra-wide composite image. Imagine spotting bait balls and roaming game fish across a sweeping panorama right from your helm—suddenly, no fish hides in the fringes.
Transform Your Sonar Game with Wider Coverage
In the heat of the chase, every second counts. Traditional sonar gives snapshots, but ActiveTarget® 2 with this Scout Wide Bracket delivers a living, breathing map of the water column. The bracket's clever design merges two live feeds at the center, expanding your field of view dramatically. Fish hugging distant structure? Schools splitting off the edges? You'll see them all in crisp, real-time detail, helping you position lures exactly where strikes are imminent.
Picture this: You're trolling a river mouth or scanning a sprawling flat. A single Scout mode might miss the action unfolding wide. With the Scout Wide setup, that composite view pulls in more water, revealing patterns and movements that inform split-second decisions. It's not just wider—it's smarter fishing, backed by Lowrance's proven imaging tech.
How the Scout Wide Bracket Supercharges ActiveTarget® 2
Installation is straightforward for seasoned boaters: Mount the bracket securely, attach your two ActiveTarget® 2 transducers at the fixed angles, and connect via Ethernet to your compatible display. Power it up, select Scout Wide mode, and watch as the system stitches the images into one expansive vista. Enhancements in beam width mean finer details reach farther from your boat, even in choppy waters where stabilization shines.
Pro tip: Pair it with Forward, Down, or Side views for multi-angle mastery. Track lure action from multiple perspectives simultaneously, adjusting on the fly as fish react. This setup shines in open water pursuits, structure-heavy bays, or anywhere fish roam broad areas.
Standout Features for Serious Anglers
- Ultra-Wide Composite Imaging: Blends dual transducer feeds for a panoramic Scout view, capturing more fish and habitat than solo setups.
- High-Res Live Action: Crystal-clear, stabilized images of fish behavior around cover, even in rough seas.
- Multi-View Power: Run Forward + Back or expanded Scout simultaneously with a second transducer for total coverage.
- Rugged Build: IP67 waterproofing, shock-resistant to 20G, and built to endure -15°C to 55°C temps.
- Seamless Integration: Ethernet connectivity to select HDS and Elite series displays for plug-and-play performance.
Technical Edge for Reliable Performance
Engineered for the demands of real-world fishing, this bracket and module combo handles power from 10.8-31.2 VDC with a max draw of 1.5A. Weighing in at a manageable 4.12 lbs for the module and 2.67 lbs per transducer, it's easy to position yet rock-solid. Dimensions ensure a low-profile fit: module at 8.63" x 7.56" x 2.86", transducers at 5.90" x 3.24" x 2.28". Surface mount the module, bracket mount the transducers—ready for action.
| Category | Details |
|---|---|
| Power | 1.5A @ 13.8VDC (typ/max), 3A fuse recommended |
| Environment | IP67 waterproof, 60°C/95% RH humidity test, -30°C to 70°C storage |
| Connectivity | 1x 100 Mbit Ethernet port |
| Mounting | Surface (module), Bracket (transducer) |
Maximize Your Setup: Angler Insights
To get the most from your Scout Wide Bracket, calibrate in calm water first, then test in varied conditions. Use it to scout drop-offs or weedlines efficiently— the wide view pinpoints hot zones fast, saving fuel and time. In tournaments, it levels the playing field by exposing hidden schools. Maintenance is simple: Rinse after saltwater use, check mounts seasonally, and store dry. Anglers report higher hook-up rates when they can watch fish chase lures across the full width.
Frequently Asked Questions
What makes the Scout Wide Bracket different from a standard Scout mount?
This bracket holds two ActiveTarget® 2 transducers at fixed Scout angles, creating a composite wide view by blending their images—far broader than a single transducer's coverage for spotting more fish and structure.
Is this bracket adjustable?
No, it's a non-adjustable arm optimized for precise Scout positioning, ensuring consistent, high-quality wide imaging without user tweaks.
What displays work with the Scout + Scout Wide Bracket?
It's compatible with HDS LIVE, HDS Carbon, Elite FS, HDS Pro, and similar Lowrance units via Ethernet for seamless Scout Wide viewing.
Can I use multiple views at once with this setup?
Yes, pair with a second ActiveTarget® 2 to run Forward, Down, Scout, Forward+Back, and Scout Wide simultaneously for comprehensive coverage.
How durable is the bracket in harsh marine conditions?
Built tough with IP67 waterproofing, 100,000 cycles of 20G shock vibration, and wide temp tolerance from -15°C to 55°C operating range.
What's the ideal fishing scenario for Scout Wide?
Perfect for open-water scouting bait balls, structure edges, or broad flats where fish activity spans wide areas—ideal for bass, walleye, or offshore pursuits.
Does it require special power setup?
No, it draws 1.5A typical at 13.8VDC with a 3A fuse recommendation; works on standard 10.8-31.2 VDC boat systems.
Scout + Scout Wide Bracket for ActiveTarget® 2
ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish.
Catching fish is easier when you can see them interacting with structure and responding to your lure – in real-time – with Lowrance® high-resolution ActiveTarget® 2 Live Sonar. Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – information that is harder to get from traditional sonar or structure imaging.
It’s easy. Drop your lure on a fish and watch the catch unfold in real-time – from the fish striking your lure to reeling the fish to the surface – you'll see it all in incredible detail.
Get the best picture
See the clearest, highest-resolution images of fish swimming in and around the cover and structure with ActiveTarget 2 Live Sonar. Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live-action views of fish and structure, even in rough conditions.
See the full picture
Delivering a wider, more complete underwater image than any other live sonar, ActiveTarget 2 shows you exactly what’s going on under the surface by capturing a wider section of the water column as a live-action feed. Enhancements to the beam widths broadcast from the ActiveTarget 2 transducer make it possible to show more detailed images further from the boat than ever before.
See all around the boat
Track fish and your lure presentation with high-resolution views in front, below, and to the sides your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat. Perfect for finding bait balls and big schools of fish.
See More Simultaneously
Target fish better than ever, watching multiple ActiveTarget 2 views at the same time, with a second optional ActiveTarget II transducer. Monitor multiple views at the same time – from Forward, Down, and Scout modes – and enable additional Forward + Back and Scout Wide views showing images out to 180 degrees for more effective fish and bait tracking ahead of the boat.
Features:
- High-resolution, live-action images clearly reveal what’s happening underwater in real time
- Clearest live-action views of fish and structure
- Widest underwater images for quicker interpretation
- See all around your boat with Forward, Down, and Scout views
- See multiple views simultaneously and enable Forward+Back and Scout Wide views for more effective bait tracking ahead of the boat with the second optional ActiveTarget 2 transducer
- Compatible with HDS LIVE, HDS Carbon, and Elite FS
Connectivity
- Ethernet Ports: Yes 1 - 100 Mbit Ethernet Port
Electrical
- Power Consumption max: 1.5A @ 13.8VDC
- Power Consumption typical: 1.5A @ 13.8VDC
- Recommended Fuse Rating: 3A
- Supply Voltage: 10.8 VDC - 31.2 VDC
Environment
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
- Waterproof rating: IP67
Physical
- Dimensions W x H x D Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm) Transducer:5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
- Mounting TypeModule: Surface Mount Transducer: Bracket Mount
- Weight Module: 4.12 lbs (1.86 kg) Transducer:2.67 lbs (1.21 kg)
Other
- Interface Ethernet to HDS ProHDS LiveHDS CarbonElite FS
- Warranty Period: 1 Year + 4 additional years of upgrade options totaling 5 years
SKU: NVN-98437
MPN: 000-15960-001
UPC:
Technical specifications
| Brand | Lowrance |
| Model | Lowrance Scout + Scout Wide Bracket f/ActiveTarget® 2 |
| SKU / MFR# | 98437 |
