Lowrance Elite FS 9 ActiveTarget™ Live Sonar Bundle
Lowrance Elite FS 9 ActiveTarget™ Live Sonar Bundle — Product description
Experience Real-Time Fish Behavior with ActiveTarget Live Sonar
Imagine watching fish react to your bait in real time, darting toward structure or scattering from your approach. That's the game-changing power of the ActiveTarget Live Sonar system bundled with this Elite FS 9 setup. Anglers chasing bass around submerged timber or walleye hugging deep ledges report landing more trophy catches because they can adjust tactics on the fly. Unlike traditional sonar that snapshots the underwater world, ActiveTarget delivers live video-like feeds—forward, scouting, or down views—revealing fish movements around your boat, lure, and key structures.

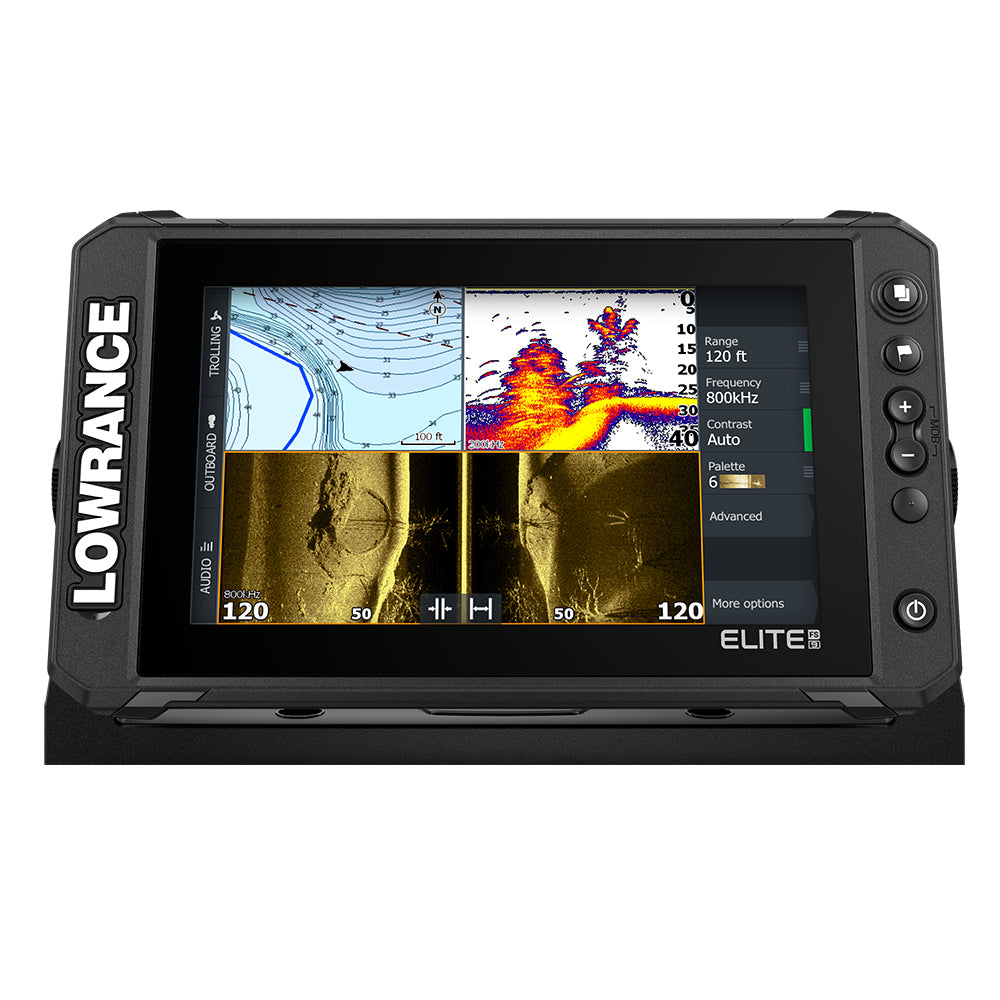

This bundle pairs the crisp 9-inch high-resolution touchscreen with the dedicated ActiveTarget module and transducer, eliminating guesswork during critical moments. Whether you're finesse jigging in shallow bays or power trolling offshore, the clarity helps you pinpoint aggressive feeders and avoid dead zones.
Superior Imaging for Every Fishing Scenario
Building on proven Lowrance tech, this system layers CHIRP sonar with SideScan and DownScan Imaging for photorealistic bottom details. FishReveal smartly highlights targets in red against clutter, making it easier to distinguish species in murky water or heavy cover. Ready for Active Imaging 3-in-1 upgrade, it scans wider areas with unmatched separation, ideal for mapping weedlines or rock piles where big fish ambush prey.
- Spot bait schools swirling around your jig as it drops
- Track schools following your boat during drifts
- Forward view reveals fish ahead before you reach them
Users love how it cuts through thermoclines, showing suspended crappie or stripers that static sonar misses.
Preloaded C-MAP Contour+ Charts: Navigate and Hunt Smarter
Out of the box, dive into high-res 1-foot contour charts covering thousands of U.S. lakes, highlighting ledges, humps, and points where fish stage. Custom depth shading lets you shade by bite windows—say, 10-20 feet for summer smallmouth. Genesis Live overlays your real-time sonar data for instant custom maps, while Easy Routing plots safe paths around hazards.
Fishing POIs mark hot honey holes, and integration with other charts keeps options open for coastal runs or new waters. Spend less time idling and more casting into proven spots.
Seamless Connectivity and Boat Integration
Full networking shines here: Ethernet shares waypoints and sonar across multiple screens, NMEA 2000 controls engines or anchors, and wireless links phones for software updates or GoFree apps. Take command of Power-Pole anchors or Ghost trolling motors right from the touchscreen—no extra remotes needed.
Bluetooth pairs with accessories, and built-in GPS tracks high-speed 10Hz updates for precise boat trails. It's built tough—IPX7 waterproof, bright 1200-nit screen for sunny decks, and wide viewing angles for crew viewing.
Technical Specs at a Glance
| Category | Details |
|---|---|
| Display | 9" 800x480 pixels, multitouch, >1200 nits brightness, 50°/60°/70° viewing angles |
| Environmental | -15°C to +55°C operating, IPX6/IPX7 waterproof |
| Power | 12V DC (10-17V), max 28W, 3A fuse |
| Connectivity | Ethernet, NMEA 2000, sonar port, microSD, Bluetooth 4.0, 10Hz GPS |
| Physical | 1.2kg display, 0.5m compass safe |
What's Included for Quick Setup
- Elite FS 9 Display with sun cover and bracket
- Power cable, fuse/holder
- ActiveTarget Black Box Module
- ActiveTarget Transducer
- Multiple trolling motor mount kits (Shaft, FWD/Down, Scout)
- 15' Ethernet cable
Straightforward install gets you scanning in under an hour—perfect for weekend warriors or guides prepping boats.
Pro Tips for Maximizing Your Elite FS 9 ActiveTarget Bundle
Pair live sonar with FishReveal during spawn—watch beds form and males guarding. In current, use forward mode to time drifts over reefs. Dial CHIRP frequencies for species: high for panfish finesse, low for deep muskies. Network with structure scan to replay sessions, refining patterns for next trips. This setup turns casual outings into limit-filling days.
Frequently Asked Questions
Elite FS 9 ActiveTarget™ Live Sonar Bundle
The Elite FS 9 ActiveTarget™ Live Sonar Bundle delivers high-resolution images of fish swimming around structure and responding to your lure – as it happens – with the new ActiveTarget™ Transducer. Elite FS gives you the power of Lowrance’s proven fishfinding tools with a more affordable display that’s easier to use and install. From support for extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Key Features
- 9" Display
- Includes ActiveTarget™ Live Sonar Module and transducer
- Active Imaging™ 3-in-1 ready (requires 000-14489-001 transducer)
- FishReveal™
- Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
C-Map Contour+ Mapping Preloaded
You will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.
Key Features
- Custom depth shading
- Easy routing, Lowrance presentation for icons
- High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes
- Standard navigation data
- Fishing POIs
Elite FS 9 ActiveTargetâ„¢ real-time sonar kit Elite FS 9 ActiveTargetâ„¢ real-time sonar kit provides high-resolution images of fish swimming around the structure and responding to your temptation, because it...
SKU: NVN-86351
MPN: 000-15774-001
UPC: 09420064118274
Technical specifications
| Brand | Lowrance |
| Model | Lowrance Elite FS 9 ActiveTarget™ Live Sonar Bundle |
| SKU / MFR# | 86351 |
