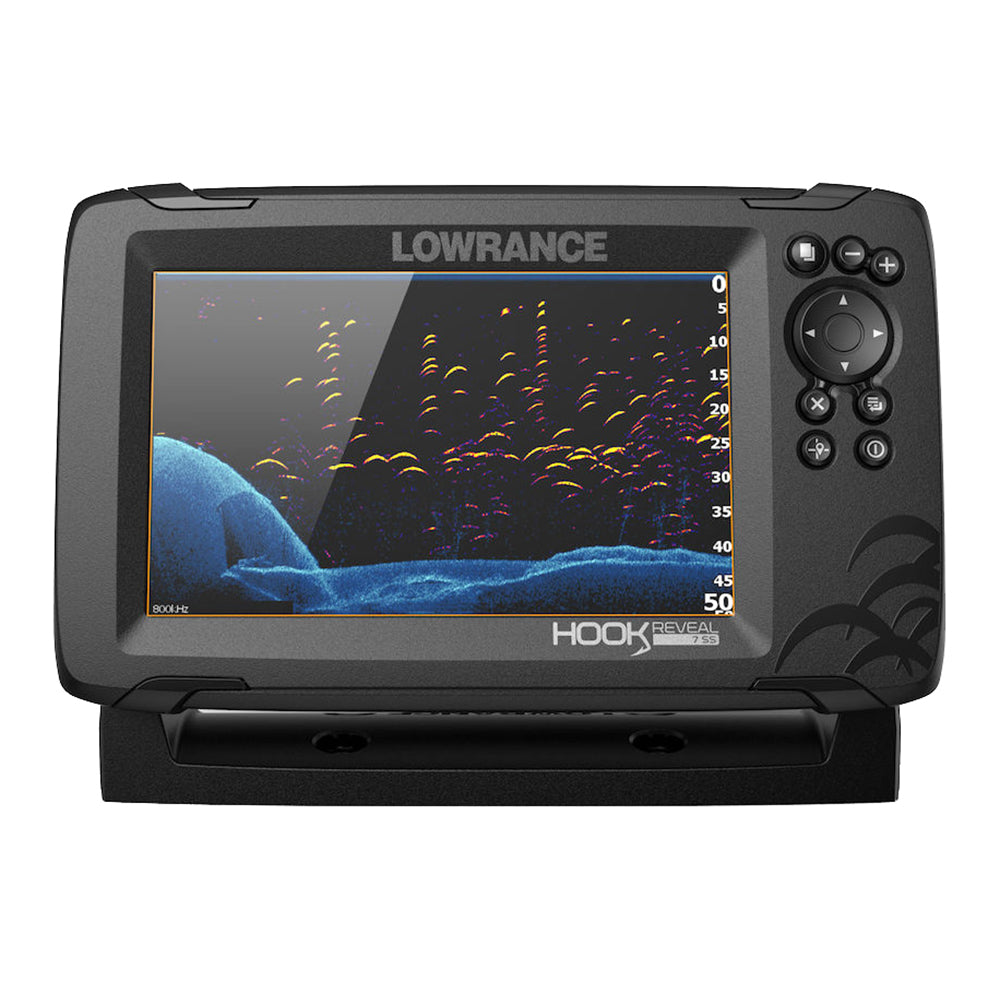

Lowrance HOOK Reveal 7 Combo w/50/200 HDI Transom Mount & Navionics+ Chart
Lowrance HOOK Reveal 7 Combo w/50/200 HDI Transom Mount & Navionics+ Chart — Product description
Unlock Crystal-Clear Views Beneath the Waves
Picture this: you're out on the lake at dawn, trolling for walleye, and your screen lights up with vivid images of fish darting around rocky drop-offs. That's the everyday magic of the HOOK Reveal 7. This combo unit blends cutting-edge sonar tech with intuitive charting, helping anglers of all levels pinpoint prime fishing spots effortlessly. Unlike basic fishfinders that leave you guessing, its FishReveal technology overlays fish targets right onto detailed structure maps, so you see exactly how gamefish relate to the bottom—no more split-screen confusion.
What sets it apart is the autotuning sonar, which tweaks settings on the fly as water clarity or depth shifts. Spend less time fiddling with knobs and more time reeling in catches. Paired with the 50/200 HDI transom-mount transducer, it delivers broad coverage for shallow bays and precise imaging in deeper waters, making it a versatile pick for bass boats, kayaks, or center consoles.
Superior Sonar Performance That Adapts to You
The heart of this system is its Hybrid Dual Imaging (HDI) setup. The 50/200 kHz transducer combines low-frequency power for wide-area sweeps with high-frequency detail for spotting individual baitfish schools. Add DownScan Imaging, and you get photo-like views of wrecks, weed beds, and ledges where trophy fish hang out.
- Double Coverage Efficiency: Scan twice the water volume compared to traditional single-beam units, ideal for covering vast flats or river channels quickly.
- Fish-Finding Palettes: Custom color schemes highlight targets against clutter, even in murky conditions.
- Deep-Water Prowess: Enhanced performance down to hundreds of feet, perfect for offshore trolling or Great Lakes adventures.
Anglers rave about how this setup reveals subtle bottom hardness changes—soft mud versus hard rock—helping you target species-specific haunts like crappie on brush piles or stripers near bait balls.
SolarMAX Display: Visibility in Any Light
Battling glare on sunny days? The 7-inch SolarMAX screen pumps out over 1000 nits of brightness, ensuring sharp 800x480 resolution views from wide angles. Whether mounted on the dash or gimbal bracket, the optimized keypad offers one-touch access to sonar, charts, and waypoints. It's rugged too—IPX7 waterproof and shock-tested for bumpy rides.
Navigation Tools to Chart Your Next Big Catch
Preloaded with detailed Navionics+ charts for U.S. and Canada inland waters, including 1-foot contours on thousands of lakes. Genesis Live lets you create custom maps in real-time, contouring uncharted spots down to half-foot accuracy. Supports C-MAP, Navionics, and more via microSD—store up to 3000 waypoints, 100 routes, and trails for repeat hot spots.
GPS/GLONASS with WAAS delivers reliable positioning, so you can mark that honey hole and return precisely, even in fog.
Technical Specs at a Glance
| Category | Details |
|---|---|
| Display | 7" SolarMAX, 800x480 resolution, >1000 nits brightness, 80°/85° viewing angles |
| Sonar | CHIRP Broadband, DownScan Imaging, Autotuning, 50/200 HDI transducer |
| Power | 12V DC (10.8-17V), 1.25A max draw, 5A fuse recommended |
| Environment | IPX7 waterproof, -15°C to 55°C operating temp, 20G shock resistance |
| GPS & Mapping | 1Hz GPS/GLONASS/WAAS, Navionics+ preloaded, microSD up to 32GB |
| Dimensions | 9.31" W x 6.46" H x 4.42" D, gimbal/flush mount |
Ready-to-Rig Package
Everything you need arrives in one box: the HOOK Reveal 7 unit, 50/200 HDI transducer with 20-ft cable and bracket, Navionics+ chart card, power cable, mounting hardware, and fuses. Quick transom install gets you scanning in under an hour—adjust the transducer angle for optimal water flow and minimal air bubbles.
Pro tip: Pair it with a portable battery for kayak fishing, or network multiple units for bigger boats to share sonar data seamlessly.
Frequently Asked Questions
What makes FishReveal different from standard sonar?
FishReveal overlays CHIRP fish arches directly on DownScan structure images, giving a single, intuitive view of fish positions relative to cover—no split screens needed.
Does the autotuning sonar work in all conditions?
Yes, it automatically optimizes frequency, gain, and sensitivity as depth, temperature, or thermoclines change, ensuring peak performance without manual tweaks.
How deep can the 50/200 HDI transducer perform?
It excels in shallow to moderate depths up to several hundred feet, with low CHIRP for broad deep-water coverage and high CHIRP/DownScan for fine detail.
Can I create my own maps with this unit?
Absolutely—Genesis Live maps uncharted waters in real-time with ½-foot contours, and you can save them to microSD for future trips.
Is the display readable in direct sunlight?
The SolarMAX technology delivers over 1000 nits of brightness, making it highly visible even on the brightest days.
What mounting options are available?
It supports easy gimbal bracket, front-dash, or flush mounting, with included hardware for straightforward setup.
Does it support additional chart upgrades?
Yes, compatible with C-MAP, Navionics+, Insight, and Genesis via microSD slot for expanded coverage.
HOOK Reveal 7 Combo with 50/200 HDI Transom Mount & Navionics+ Chart
From the world’s best-selling series of fishfinders comes HOOK Reveal, a fishfinder/chartplotter with one of our most popular features – FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.
Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. Our 83/200 and 50/200 HDI models provide improved sonar performance in deep water, plus with our TripleShot models, you can cover more water in less time with double the sonar coverage of other fishfinders.
HOOK Reveal comes with C-MAP chart compatibility to get you on the fish, as well as Genesis Live real-time mapping. Map uncharted areas – down to ½-foot contours – with Genesis Live.
Features:
- FishReveal™
- Genesis Live Real-Time Mapping
- Autotuning sonar
- 50/200 HDI transducer with Low/High CHIRP and DownScan Imaging™
- Preloaded US/Canada Navionics+ chart
- SolarMAX™ Display
- Fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- MicroSD card slot
- Easy front-dash or gimbal-bracket mount
- Improved sonar performance in deep water
50/200 HDI Transducer 000-15639-001
HDI Skimmer® transducer 50/200 / 455/800kHz for Hook² / Hook Reveal, with built in temp. Includes mounting bracket and hardware. Cable Length 6 m (20 ft). Connector: 8 pin push fit.
Hybrid Dual Imaging™ (HDI) transducer (50/200/455/800) - The power of two award-winning technologies -- Broadband Sounder PLUS Exclusive DownScan Imaging™ -- combined to provide the best-possible view beneath your boat.
Comes with:
Hook Reveal 7 Display, Mounting Bracket, Power Cord, HDI 50/200 Transom Mount Transducer and Navionics+ Chart
The new Lowrance Hook Reveal 7 50 200 US CAN Nav Plus makes fishing easier, and provides powerful performance through tried and tested fish finding tools (including Autotuning Sonar,... etc.).
SKU: NVN-84335
MPN: 000-15522-001
UPC: 9420064114573
Technical specifications
| Brand | Lowrance |
| Model | Lowrance HOOK Reveal 7 Combo w/50/200 HDI Transom Mount & Navionics+ Chart |
| SKU / MFR# | 84335 |
