Lowrance HDS-16 LIVE Gimbal Bracket
Lowrance HDS-16 LIVE Gimbal Bracket — Product description
Secure your HDS-16 LIVE display with confidence on the water using this precision-engineered gimbal bracket. Designed exclusively for the 16-inch HDS LIVE series, it offers smooth tilt and swivel adjustments via intuitive knobs, letting you optimize your view no matter the boat's pitch or roll. Boaters and anglers who demand reliability in harsh marine environments swear by this mount for keeping critical sonar, GPS, and chart data front and center.
Unlike basic holders, this bracket combines rugged construction with effortless usability, ensuring your multifunction display stays locked in place during high-speed runs or choppy conditions. It's the go-to upgrade for custom consoles, tournament setups, or any vessel where viewing angles matter most.
Key Features That Stand Out
- Full Adjustability: Dual knobs for quick, tool-free tilt (up to 90 degrees) and pan adjustments, adapting to your seating position or changing sea states.
- Marine-Tough Build: Crafted from corrosion-resistant aluminum and high-impact polymers, it withstands saltwater spray, UV exposure, and impacts without fading or weakening.
- Perfect Fit: Tailored specifically for HDS-16 LIVE displays, with pre-drilled mounting holes that align seamlessly for a vibration-free hold.
- Streamlined Design: Low-profile profile reduces snag hazards and maintains a clean deck look, ideal for competitive fishing boats or center consoles.
- Knobs Included: Durable, oversized knobs for gloved operation, even in rough weather when dexterity is limited.
Why This Bracket Elevates Your Setup
Picture this: You're mid-tournament, waves slamming the hull, and your screen stays perfectly positioned for spotting that structure on StructureScan. This gimbal bracket minimizes glare by letting you angle the display away from direct sun, while its rock-solid grip prevents slippage that could cost you a big catch. Serious offshore adventurers report it outlasting generic mounts by years, thanks to Lowrance's obsessive focus on marine-grade durability.
It also future-proofs your install—compatible with popular RAM or SeaWolf ball mounts for added versatility, turning a standard gimbal into a modular system.
Effortless Installation for Any Skill Level
Setting up takes under 30 minutes with basic tools. Start by removing your existing mount (if any), then secure the bracket base to your console using the included stainless steel hardware. Slide the HDS-16 LIVE into the gimbal cradle, tighten the side clamps, and fine-tune with the knobs. Pro tip: Apply marine sealant around base screws to block moisture ingress, extending the life of your electronics.
- Position bracket on a flat, stable surface.
- Drill pilot holes if needed (template marks included).
- Mount display and test adjustments on the water.
For pedestal or swiveling bases, pair it with standard 8-hole patterns common in marine dash kits.
Keep It Performing Season After Season
Rinse with fresh water after every saltwater trip to prevent corrosion buildup. Inspect knobs and pivot points annually, lubricating with marine grease if they stiffen. Avoid overtightening clamps to protect the display bezel—snug is enough for zero movement at 50 knots.
"Switched from a flush mount to this gimbal last summer—best mod for my bay boat. Angles make all the difference when chasing reds in the shallows." – Experienced Guide
Frequently Asked Questions
Is the Lowrance HDS-16 LIVE gimbal bracket compatible with smaller HDS LIVE models?
No, this bracket is optimized for the 16-inch HDS-16 LIVE display only. For smaller sizes like 12-inch or 9-inch, check Lowrance's size-specific brackets to ensure a secure fit.
What materials make this bracket suitable for marine use?
It's built from powder-coated aluminum alloy and UV-stabilized plastics, offering superior resistance to saltwater corrosion, fading, and mechanical stress compared to consumer-grade alternatives.
Does the bracket come with installation hardware?
Yes, it includes stainless steel screws, washers, and knobs. Additional marine-grade sealant or larger fasteners may be needed for thicker console materials.
Can this gimbal handle high-speed boating or rough offshore conditions?
Absolutely—tested to hold firm at speeds over 50 mph and in heavy seas. The dual-knob locking system eliminates play, keeping your display steady.
How does a gimbal bracket compare to a flush mount?
Gimbal brackets provide adjustable viewing angles and easier servicing, ideal for dynamic boat environments. Flush mounts save space but limit flexibility.
Are replacement knobs available if lost or damaged?
Knobs are standard Lowrance parts and widely stocked. They feature ergonomic grips designed for wet hands.
Will this bracket work with touch-enabled HDS LIVE features?
Yes, the open design ensures full access to the touchscreen, side buttons, and ports without obstruction.

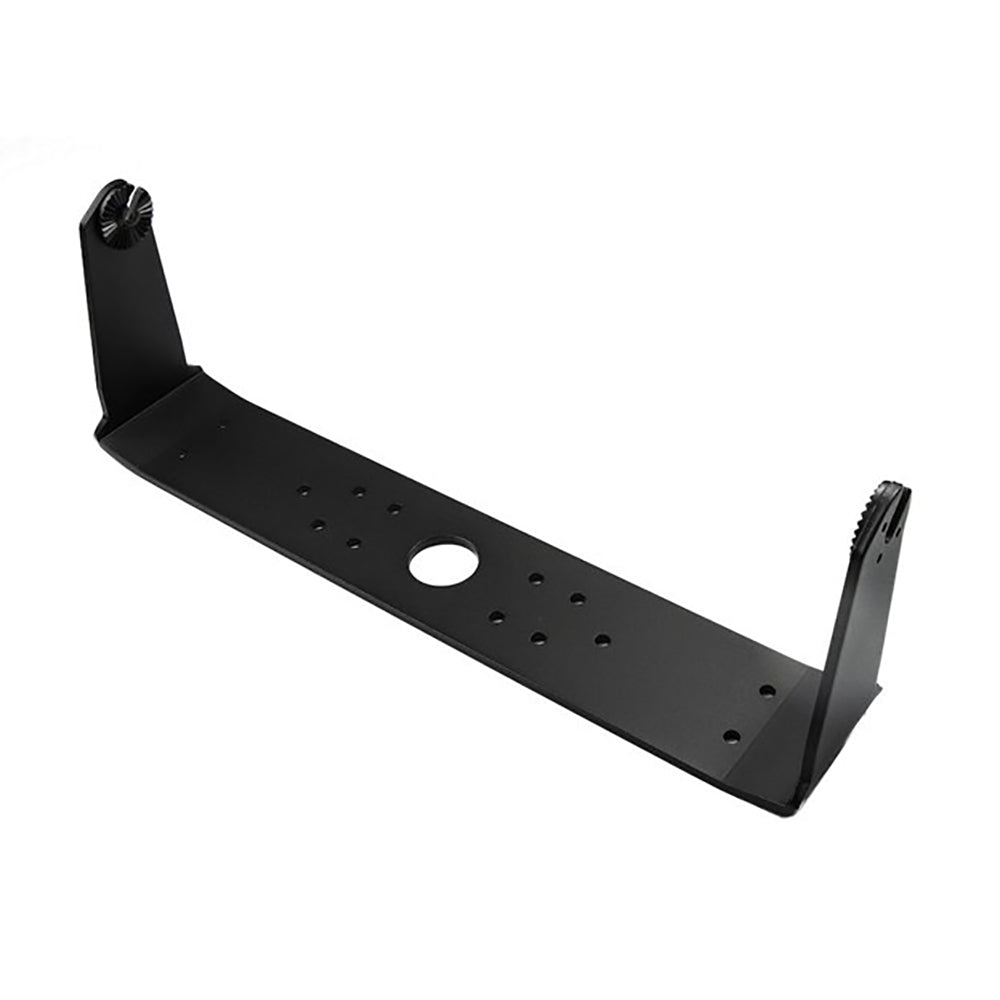

HDS-16 LIVE Gimbal Bracket
HDS-16 LIVE Bracket with knobs.
Lowrance HDS-16 Live Gimbal Bracket Description: In long-term lake trips and any turbulent water currents, the Gimbal Bracket can ensure your HDS Live unit is safe and reliable.
SKU: NVN-84323
MPN: 000-14589-001
UPC: 9420024174814
Technical specifications
| Brand | Lowrance |
| Model | Lowrance HDS-16 LIVE Gimbal Bracket |
| SKU / MFR# | 84323 |
